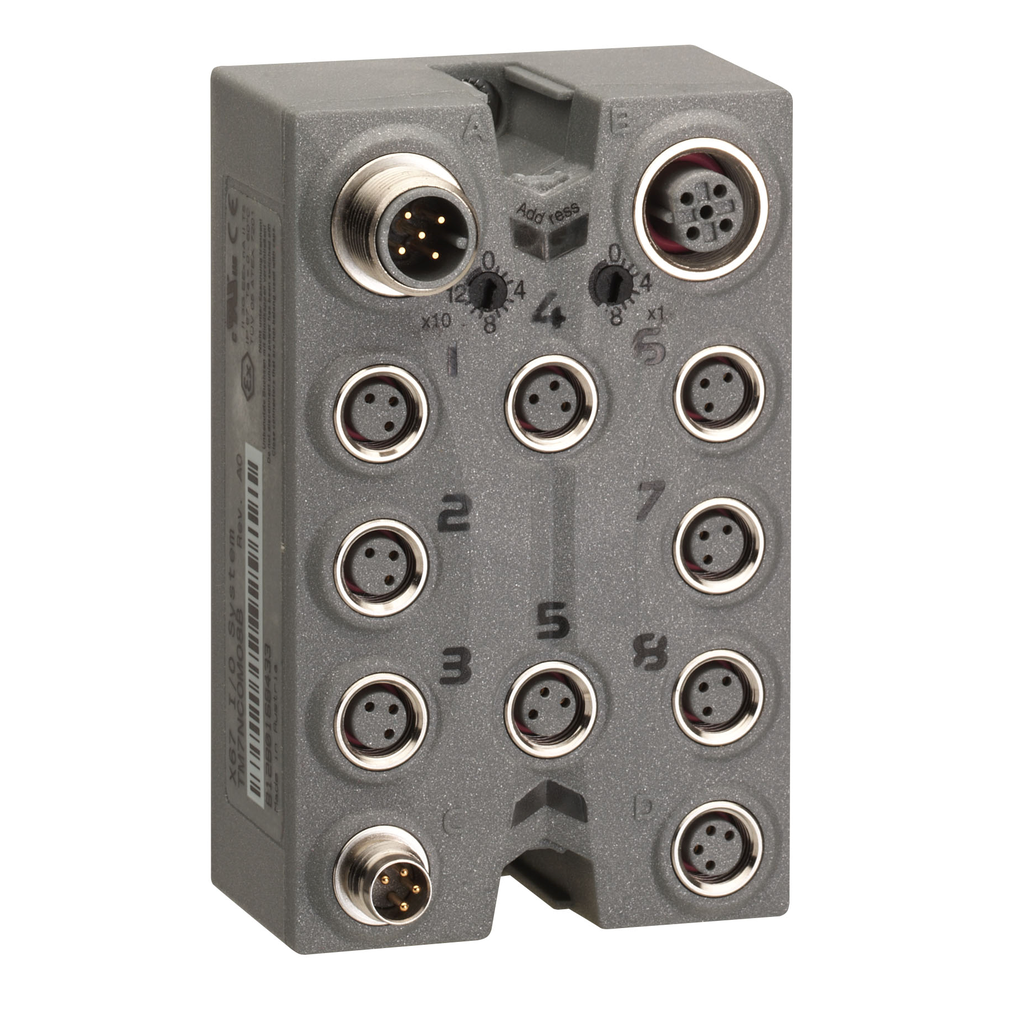

TM7NCOM08B
CANopen interface I/O block, Modicon TM7, IP67, 8 M8
Specifications
| Range Of Product | Modicon TM7 |
|---|---|
| [Ue] Rated Operational Voltage | 24 V DC |
| Product Or Component Type | CANopen interface I/O block |
| Input/Output Number | 8 |
| Input/Output Number Of Splitter Box | 8 I/O |
| Bus Type | CANopen |
| Enclosure Material | Plastic |
| Range Compatibility |
|
| Warranty | 18 months |
| Discrete Output Type | transistor |
| Discrete Input Voltage | 24 V |
| Fixing Mode | by 2 screws |
| Discrete Input Voltage Type | DC |
| Discrete Output Voltage Type | DC |
| Discrete Output Number | 0-8 configurable by software |
| Discrete Input Number | 0-8 configurable by software |
| Discrete Input Current | 4.4 mA |
| Discrete Output Current | <= 0.5 A |
| Electrical Connection |
|
| Net Weight | 0.195 kg |
| Discrete Output Voltage | 24 V |
| Discrete Input Logic | positive |
| Sensor Power Supply | 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection |
| Local Signalling |
|
| Operating Position | any position |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-60 °C |
| Resistance To Electromagnetic Fields |
|
| Standards | IEC 61131-2 |
| Storage Altitude | 0-3000 m |
| Shock Resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
| Marking | CE |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP67 conforming to IEC 61131-2 |
| Disturbance Radiated/Conducted | CISPR 11 |
| Electromagnetic Compatibility | EN/IEC 61000-4-6 |
| Pollution Degree | 2 IEC 60664 |
| Surge Withstand |
|
| Ambient Air Temperature For Storage | -25-85 °C |
| Relative Humidity | 5-95 % without condensation or dripping water |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients |
|
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
