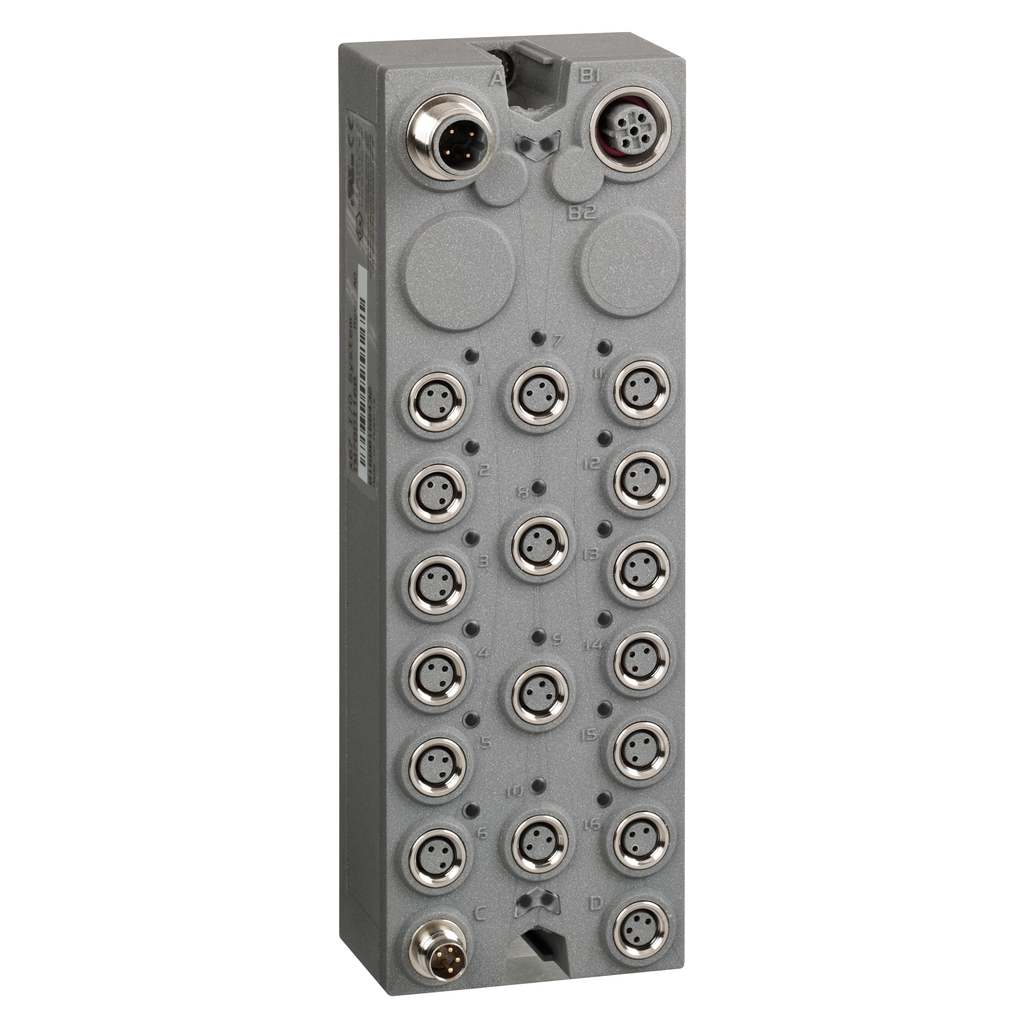

TM7BDM16B – Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector
TM7BDM16B
Discrete I/O expansion block, Modicon TM7, IP67, 16 DI/DO, 24 V DC, 0.5 A, M8 connector

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon TM7
[Ue] Rated Operational Voltage 24 V DC
Product Or Component Type discrete I/O expansion block
Input/Output Number 16
Input/Output Number Of Splitter Box 16 I/O
Bus Type TM7 bus
Enclosure Material Plastic
Range Compatibility
  • Modicon M258
  • Modicon LMC058
Warranty 18 months
Discrete Input Voltage 24 V
Fixing Mode by 2 screws
Discrete Input Voltage Type DC
Discrete Output Voltage Type DC
Discrete Output Number 0-16 <= 0.5 A transistor configurable by software)
Discrete Input Number 0-16 configurable by software
Discrete Input Current 4.4 mA
Electrical Connection
  • 1 male connector M12 - B coding - 4 ways bus IN
  • 1 female connector M12 - B coding - 4 ways bus OUT
  • 1 male connector M8 - 4 ways power IN
  • 1 female connector M8 - 4 ways power OUT
  • 16 female connectors M8 - 3 ways sensor or actuator
Net Weight 0.32 kg
Discrete Output Voltage 24 V
Discrete Input Logic positive
Sensor Power Supply 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Local Signalling
  • for bus diagnostic 2 LEDs
  • for sensor power supply diagnostics 2 LEDs
Operating Position any position
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1409005EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1409005EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • C-tick
  • ATEX II 3g EEx nA II T5
  • cURus
  • GOST-R
Ambient Air Temperature For Operation -10-60 °C
Standards IEC 61131-2
Storage Altitude 0-3000 m
Electromagnetic Compatibility
  • electrostatic discharge immunity test, 4 kV on contact EN/IEC 61000-4-2
  • 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) EN/IEC 61000-4-5
  • conducted RF disturbances EN/IEC 61000-4-6
  • conducted and radiated emissions CISPR 11
  • electrostatic discharge immunity test, 8 kV in air EN/IEC 61000-4-2
  • susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
  • susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz EN/IEC 61000-4-3
  • electrical fast transient/burst immunity test, 2 kV power supply EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test, 1 kV input/output EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test, 1 kV shielded cable EN/IEC 61000-4-4
  • 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) EN/IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) EN/IEC 61000-4-5
Shock Resistance 30 gn 11 ms IEC 60721-3-5 Class 5M3
Marking CE
Vibration Resistance
  • 7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3
  • 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3
  • 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Ip Degree Of Protection IP67 conforming to IEC 61131-2
Pollution Degree 2 IEC 60664
Ambient Air Temperature For Storage -25-85 °C
Relative Humidity 5-95 % without condensation or dripping water
Operating Altitude 0...6561.68 ft (0...2000 m)
