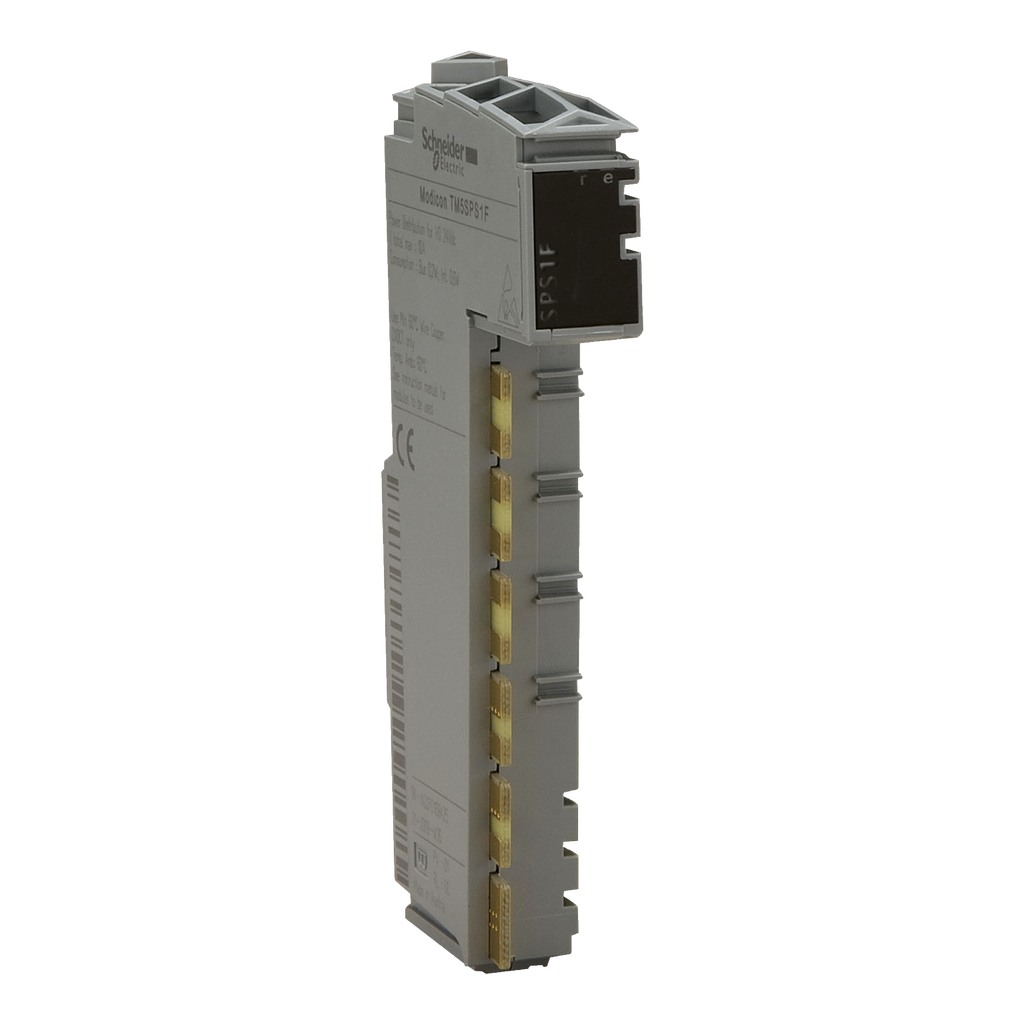

TM5SPS1F – Power distribution module with internal fuse, Modicon TM5, for I/O 24 V DC, 6.3 A
TM5SPS1F
Power distribution module with internal fuse, Modicon TM5, for I/O 24 V DC, 6.3 A

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 0.8W and supplies a 10A current for I/O power segment. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon TM5
Product Or Component Type power distribution module with internal fuse
Product Specific Application supply 24 V DC I/O modules
Warranty 18 months
[Us] Rated Supply Voltage 24 V
Network Type DC
Marking CE
Power Supply Output Current 6.3-6.3 A I/O power segment
Current Consumption <= 34 mA 24 V DC
Maximum Power Dissipation In W 1.02 W
Color Gray
Short-Circuit Protection 6.3 A internal fuse
Range Compatibility
  • Modicon M258
  • Modicon LMC058
Product Compatibility
  • motion controller
  • logic controller
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1511026EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1511026EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • C-tick
  • CSA
  • GOST-R
  • cULus
Resistance To Electromagnetic Fields
  • 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
  • 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Standards
  • IEC 61131-2
  • UL 508
  • CSA C22.2 No 142
  • CSA C22.2 No 213
Storage Altitude 0-3000 m
Ambient Air Temperature For Operation
  • -10-55 °C without derating horizontal installation)
  • 55-60 °C with derating factor horizontal installation)
  • -10-50 °C vertical installation)
Vibration Resistance
  • 1 gn 8.4-150 Hz DIN rail
  • 3.5 mm 5-8.4 Hz DIN rail
Shock Resistance 15 gn 11 ms
Disturbance Radiated/Conducted CISPR 11
Electromagnetic Compatibility EN/IEC 61000-4-6
Surge Withstand
  • 0.5 kV differential mode EN/IEC 61000-4-5
  • 1 kV common mode EN/IEC 61000-4-5
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity 5-95 % without condensation
Resistance To Electrostatic Discharge
  • 4 kV on contact EN/IEC 61000-4-2
  • 8 kV in air EN/IEC 61000-4-2
Resistance To Fast Transients
  • 1 kV EN/IEC 61000-4-4 I/O)
  • 1 kV EN/IEC 61000-4-4 shielded cable)
  • 2 kV EN/IEC 61000-4-4 power lines)
Operating Altitude 0...6561.68 ft (0...2000 m)
