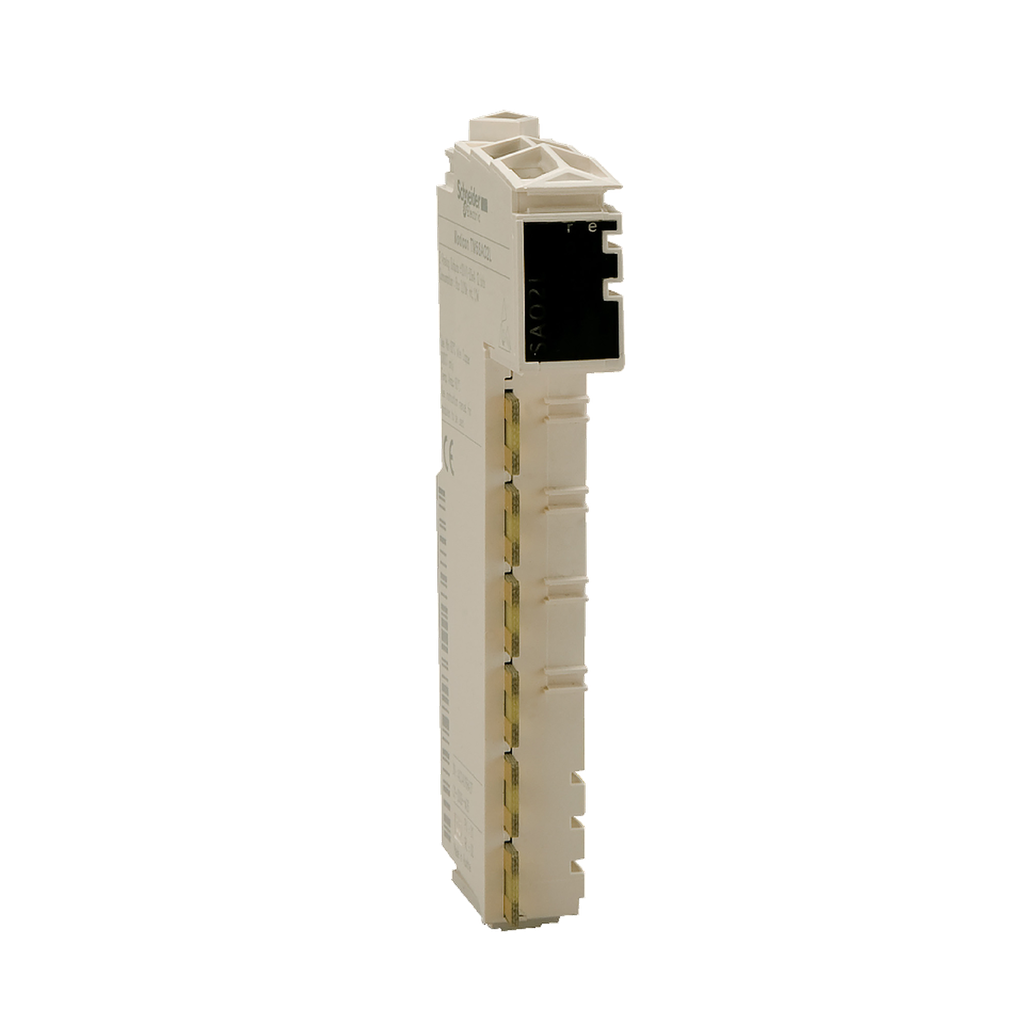

TM5SMM6D2L – Mixed I/O module, Modicon TM5, module
TM5SMM6D2L
Mixed I/O module, Modicon TM5, module

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon TM5
Product Or Component Type mixed I/O module
Range Compatibility
  • Modicon LMC058
  • Modicon M258
Product Compatibility
  • motion controller
  • logic controller
Warranty 18 months
[Us] Rated Supply Voltage 24 V DC -15...20 %
Output Voltage 24 V DC
Minimum Output Impedance
  • 1 kOhm +/- 10 V 0-55 °C
  • 10 kOhm +/- 10 V 55-60 °C
Discrete Output Type transistor
Measurement Error
  • < 0.08 % of full scale +/- 10 V) 25 °C
  • < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C
  • < 0.15 % of full scale+/- 10 V) 25 °C
  • < 0.15 % of full scale0...20 mA) 25 °C
Discrete Output Logic source
Discrete Input Voltage 24 V
Analogue Output Type
  • voltage +/- 10 V
  • current 0...20 mA
Discrete Input Voltage Type DC
Wiring Mode 1 wire digital input/output
Non-Linearity
  • +/- 0.02 %FS 0...20 mA/4...20 mA)
  • +/- 0.02 %FS +/- 10 V)
  • +/- 0.1 %FS0...20 mA)
  • +/- 0.1 %FS+/- 10 V)
Supply internal
Response Time
  • <= 250 µs from state 0 to state 1 digital output
  • <= 250 µs from state 1 to state 0 digital output
  • 1 ms analog output
Discrete Input Current 3.3 mA
Marking CE
Analogue Input Resolution
  • 12 bits + sign voltage
  • 12 bits current
Input Voltage Limits 20.4...28.8 V
Net Weight 0.025 kg
Voltage State 0 Guaranteed <= 5 V
Discrete Output Current
  • <= 0.5 A per output
  • <= 1 A
Maximum Leakage Current 5 µA when switched off) digital output
Type Of Cable shielded cable
Input Impedance
  • 7.18 kOhm digital
  • >= 1 MOhm analog, +/- 10 V
Current Consumption
  • 2 mA 5 V DC bus
  • 73 mA 24 V DC inputs/outputs
Conversion Time 300 µs analog output
Analogue Input Number 1
Discrete Output Number 2
Maximum Power Dissipation In W 1.75 W
Analogue Output Number 1
Color White
Discrete Input Logic sink
Load Impedance Ohmic
  • <= 400 Ohm0...20 mA) 0-55 °C
  • <= 300 Ohm0...20 mA) 55-60 °C
  • <= 300 Ohm 0...20 mA/4...20 mA)
Output Voltage Limits 20.4...28.8 V
Isolation
  • no insulation between channels
  • 500 Vrms AC insulation between channel and bus
Discrete Input Number 4
Local Signalling
  • for power supply (ON) 1 LED (green)
  • for power supply (OFF) 1 LED (red)
  • for digital input status 4 LEDs (green)
  • for digital output status 2 LEDs (orange)
  • 1 LED (orange)
  • 1 LED (green)
Common Mode Rejection
  • 70 dB DC analog input
  • 70 dB 50 Hz analog input
Temperature Coefficient
  • +/- 0.009 %FS/°C 0...20 mA/4...20 mA)
  • +/-0.006 %FS/°C +/- 10 V)
  • +/- 0.02 %FS/°C0...20 mA)
  • +/- 0.02 %FS/°C+/- 10 V)
Analogue Output Resolution
  • 12 bits + sign, +/- 10 V
  • 12 bits, 0...20 mA
Peak Output Current 14 A
Measurement Resolution
  • 2.441 mV, +/- 10 V, +/- 10 V
  • 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA
Protection Type
  • against reverse polarity digital output
  • against short-circuits digital output
  • thermal overload protection digital output
  • against short-circuits analog output
Analogue Input Type
  • voltage +/- 10 V
  • current 0...20 mA/4...20 mA
Input Filtering
  • <= 2 µs hardware
  • 1 ms by default
  • <= 25 ms configurable by software
Voltage State 1 Guaranteed >= 15 V
Switching Frequency 100 Hz, resistive digital output
Sampling Duration 300 µs analog input
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1511026EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1511026EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • C-tick
  • CSA
  • cULus
  • GOST-R
Resistance To Electromagnetic Fields
  • 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
  • 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Standards
  • IEC 61131-2
  • CSA C22.2 No 142
  • UL 508
  • CSA C22.2 No 213
Storage Altitude 0-3000 m
Ambient Air Temperature For Operation
  • 0-55 °C without derating horizontal installation)
  • 55-60 °C with derating factor horizontal installation)
  • 0-50 °C vertical installation)
Ip Degree Of Protection IP20IEC 61131-2
Vibration Resistance
  • 1 gn 8.4-150 Hz DIN rail
  • 3.5 mm 5-8.4 Hz DIN rail
Shock Resistance 15 gn 11 ms
Disturbance Radiated/Conducted CISPR 11
Electromagnetic Compatibility EN/IEC 61000-4-6
Pollution Degree 2 IEC 60664
Surge Withstand
  • 0.5 kV differential mode EN/IEC 61000-4-5
  • 1 kV common mode EN/IEC 61000-4-5
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity 5-95 % without condensation
Resistance To Electrostatic Discharge
  • 4 kV on contact EN/IEC 61000-4-2
  • 8 kV in air EN/IEC 61000-4-2
Resistance To Fast Transients
  • 1 kV EN/IEC 61000-4-4 I/O)
  • 1 kV EN/IEC 61000-4-4 shielded cable)
  • 2 kV EN/IEC 61000-4-4 power lines)
Operating Altitude 0...6561.68 ft (0...2000 m)
