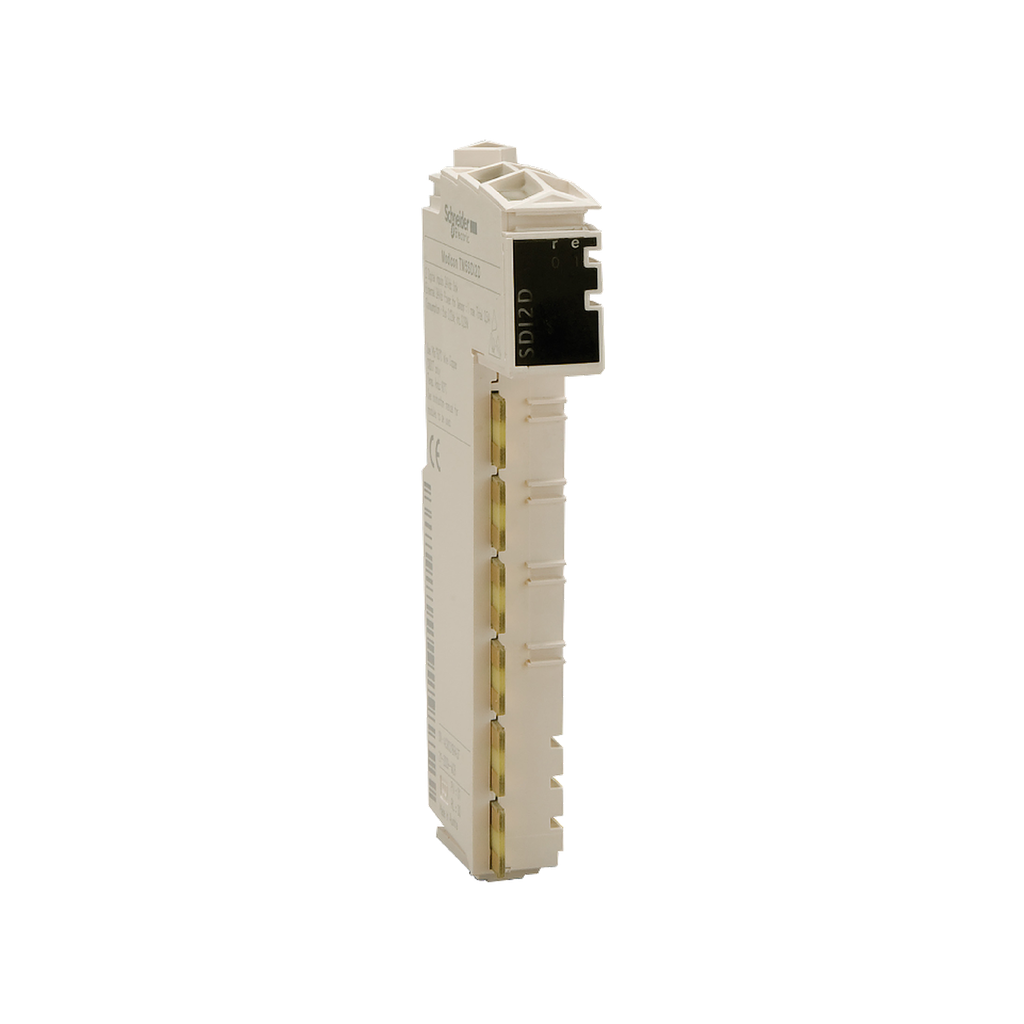

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides 8 discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 42mA at 5V DCbus, 21mA at 24V DC all inputs on, a maximum power dissipation of 1.52W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | transistor |
---|---|
Range Of Product | Modicon TM5 |
Discrete Input Voltage | 24 V |
Product Or Component Type | discrete I/O module |
Discrete Output Number | 4 |
Discrete Input Number | 8 |
Warranty | 18 months |
Discrete Input Current | 3.75-3.75 mA |
Discrete Output Logic | source |
Current Per Channel | 0.5 A |
Output Voltage | 24 V DC |
Maximum Current Per Output Common | 2 A |
Discrete Input Voltage Type | DC |
Maximum Voltage Drop | <0.3 V at 500 mA output |
Response Time |
|
Marking | CE |
Electrical Connection | 1 wire |
Input Voltage Limits | 20.4...28.8 V |
Net Weight | 0.025 kg |
Voltage State 0 Guaranteed | <= 5 V |
Switching Frequency | <= 500 Hz resistive |
Output Voltage Limits | 20.4...28.8 V |
Current Consumption |
|
Maximum Power Dissipation In W | 1.52 W |
Color | White |
Discrete Input Logic | sink |
Isolation |
|
Local Signalling |
|
Input Impedance | 6.4 kOhm |
Protection Type |
|
Peak Output Current | 12 A |
Range Compatibility |
|
Product Compatibility |
|
Maximum Leakage Current | 5 µA when switched off |
Input Filtering |
|
Voltage State 1 Guaranteed | >= 15 V |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511026EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511026EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Storage Altitude | 0-3000 m |
Electromagnetic Compatibility |
|
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP20IEC 61131-2 |
Vibration Resistance |
|
Shock Resistance | 15 gn 11 ms |
Pollution Degree | 2 IEC 60664 |
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 5-95 % without condensation |
Operating Altitude | 0...6561.68 ft (0...2000 m) |
