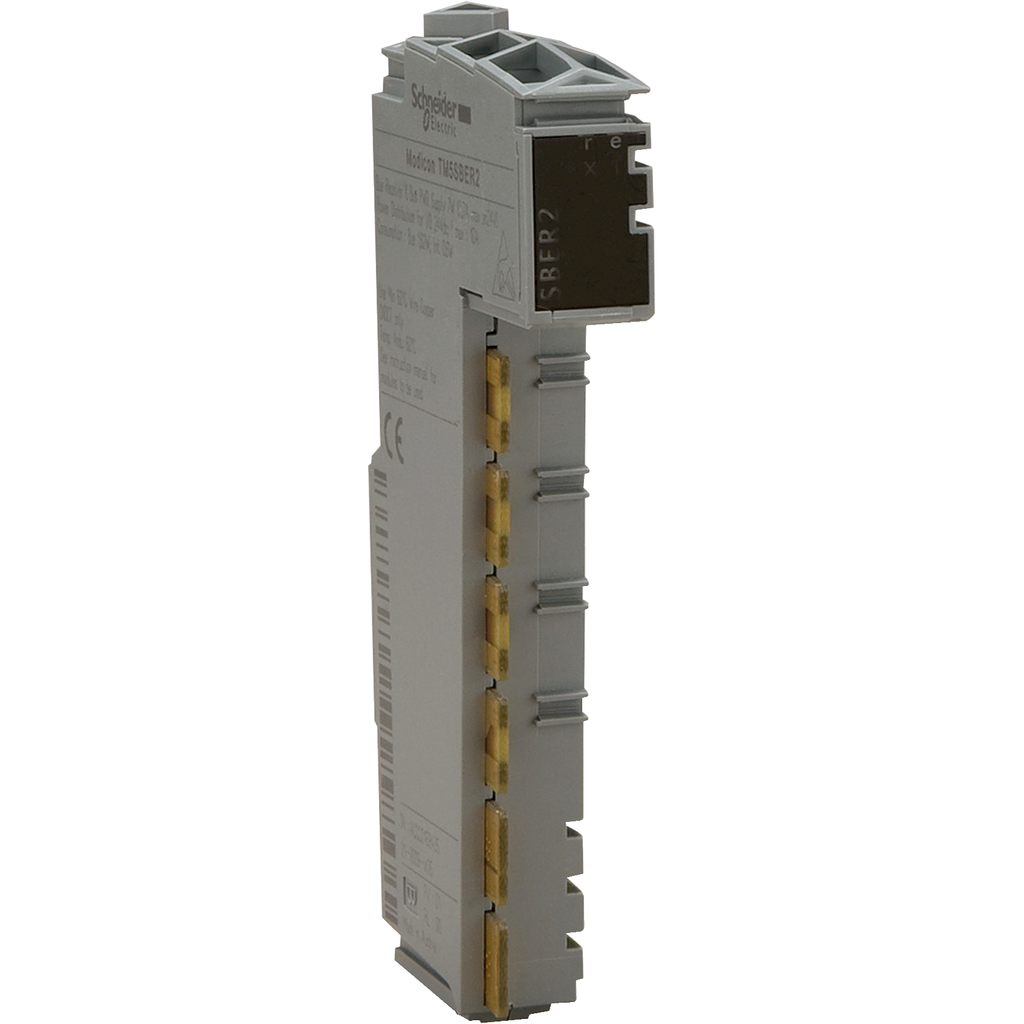

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote receiver module provides communication between remote I/O and distribute power. It is a remote receiver module with a current consumption of 25mA at 24V DC input/output and a maximum power dissipation of 2.22W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM5 |
---|---|
Product Or Component Type | remote receiver module |
Product Specific Application |
|
Warranty | 18 months |
Marking | CE |
Net Weight | 0.025 kg |
Bus Length | 2500 m |
Current Consumption | 25 mA 24 V DC input/output |
Maximum Power Dissipation In W | 2.22 W |
Color | Gray |
Local Signalling |
|
Range Compatibility |
|
Product Compatibility |
|
Maximum Cable Distance Between Devices | 100 m |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511026EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511026EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Electromagnetic Fields |
|
Standards |
|
Storage Altitude | 0-3000 m |
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection |
|
Vibration Resistance |
|
Shock Resistance | 15 gn 11 ms |
Disturbance Radiated/Conducted | CISPR 11 |
Electromagnetic Compatibility | EN/IEC 61000-4-6 |
Pollution Degree | 2 IEC 60664 |
Surge Withstand |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity | 5-95 % without condensation |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
