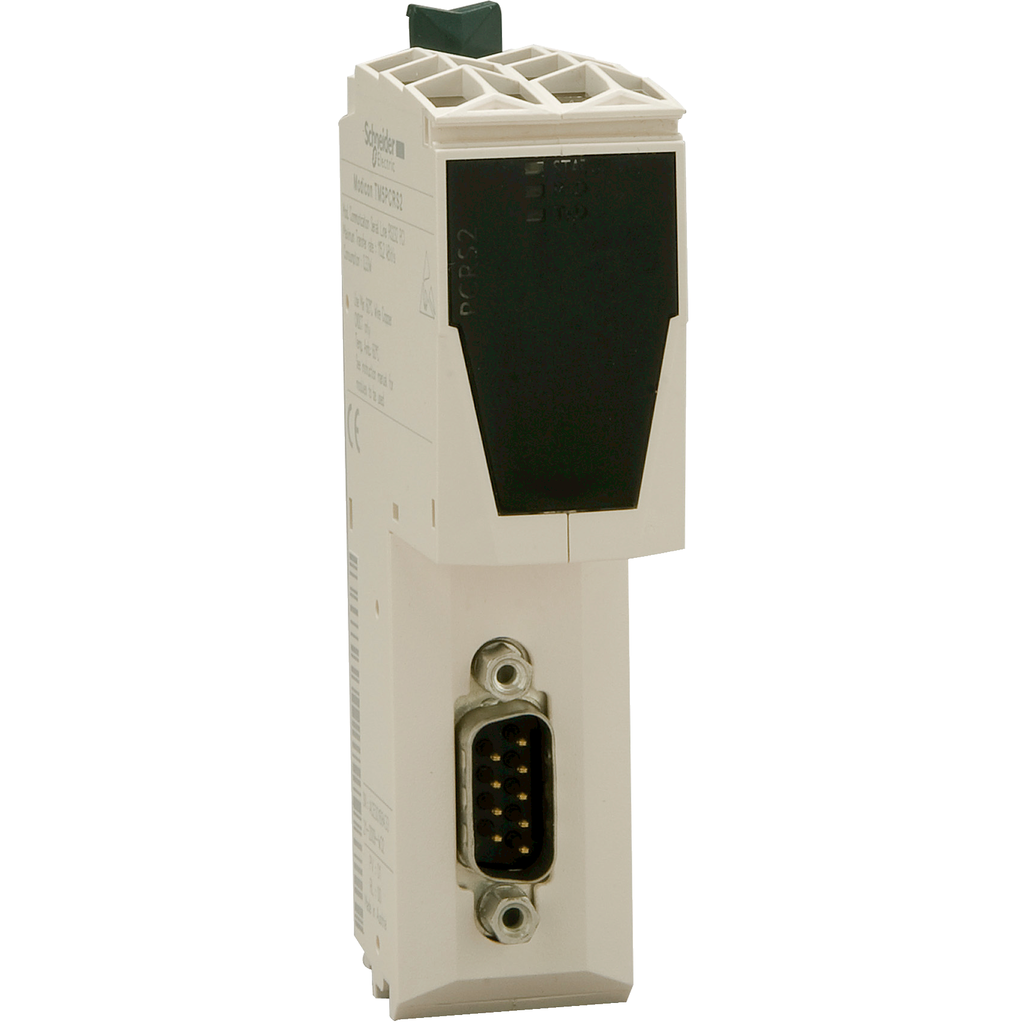

Profibus DP communication module, Modicon TM5, slave link, PCI
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. It is a Profibus DP communication module for Modicon M258 controllers. It ensures the communication on Profibus bus of M258 controllers monitoring decentralized sensors. This is a communication module designed for creating distributed IO islands on Profibus DP bus. This optional communication module is inserted in two free PCI slots located on M258 logic controllers. It has 1 isolated serial link, female SUB-D 9 connector (RS485), with a 12 Mbit/s data transmission rate. It weighs 0.064kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM258LD42DT4L, TM258LF42DT4L, TM258LF42DR and TM258LF66DT4L logic controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon TM5 |
|---|---|
| Product Or Component Type | Profibus DP communication module |
| Physical Interface | RS485 |
| Warranty | 18 months |
| Marking | CE |
| Net Weight | 0.05 kg |
| Integrated Connection Type | 1 isolated serial link, female SUB-D 9 Profibus DP RS485), <= 12 Mbit/s |
| Method Of Access | slave V1 |
| Range Compatibility |
|
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511025EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511025EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Electromagnetic Fields |
|
| Standards |
|
| Storage Altitude | 0-3000 m |
| Ambient Air Temperature For Operation |
|
| Ip Degree Of Protection | IP20IEC 61131-2 |
| Vibration Resistance |
|
| Shock Resistance | 15 gn 11 ms |
| Disturbance Radiated/Conducted | CISPR 11 |
| Electromagnetic Compatibility | EN/IEC 61000-4-6 |
| Pollution Degree | 2 IEC 60664 |
| Surge Withstand |
|
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 5-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients |
|
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
