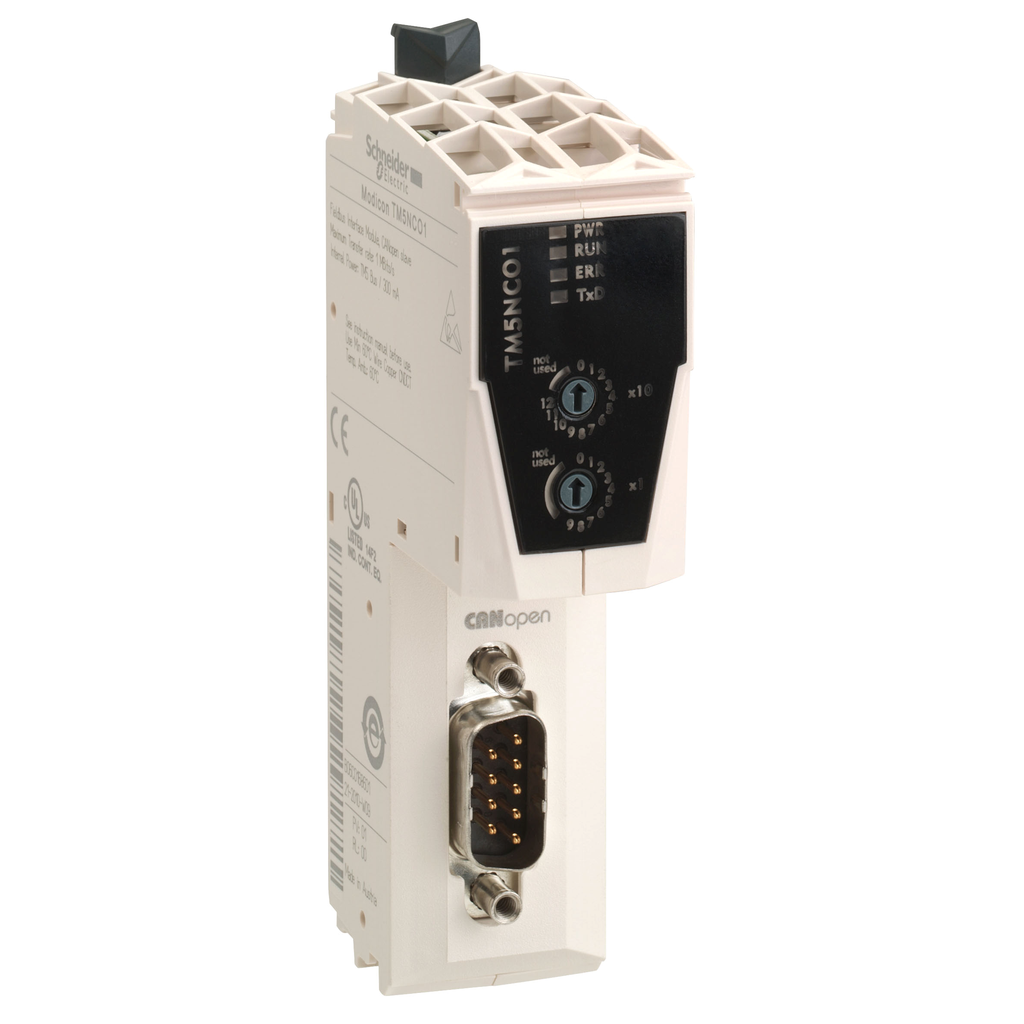

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a bus coupler designed for creating distributed IO islands on CANopen fieldbus, exchanging data between controller and distributed IO. Its access method is based on CSMA-MA, multi-master protocol. This is a bus coupler module designed for creating distributed IO islands on the Canopen fieldbus. This bus coupler works with an electronic power distribution module, a bus base and a terminal block. It has a 9-way SUB-D connector ISO 11898, with a 10 to 1000 Kbps data transmission rate. It weighs 0.080kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 logic controllers, Modicon LMC058/LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand: Schneider Electric
