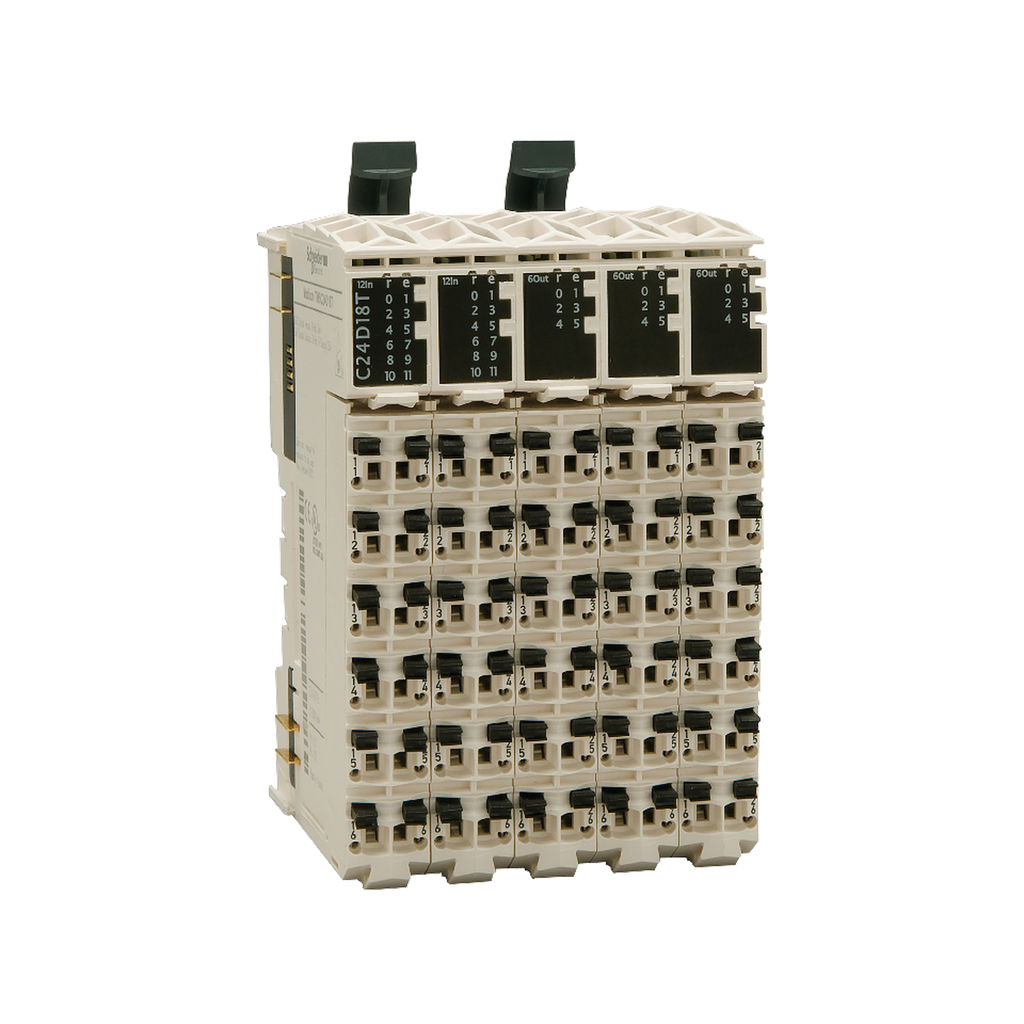

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 24 discrete inputs with sink logic and 12 discrete relay outputs with sink/source logic. It is an expansion block with 2 module(s) x 12 digital input with input voltage of 24V DC and 2 module(s) x 6 relay output with voltage of 30V DC, 240V AC. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM5 |
---|---|
Product Or Component Type | compact I/O expansion block |
Warranty | 18 months |
Minimum Switching Current | 10 mA 5 V DC |
Discrete Output Type | relay |
Discrete Output Function | 1 NO |
Discrete Output Logic | source or sink |
Discrete Input Voltage | 24 V |
Output Voltage |
|
Discrete Input Voltage Type | DC |
Wiring Mode | 1 wire discrete input |
Response Time |
|
Discrete Input Current | 3.75 mA |
Marking | CE |
Input Voltage Limits | 20.4...28.8 V |
Voltage State 0 Guaranteed | <= 5 V |
Discrete Output Current | 2 A per output |
Input/Output Number | 36 |
Output Voltage Limits |
|
Current Consumption |
|
Disturbance Radiated/Conducted | CISPR 11 |
Input/Output Number Of Splitter Box | 24 I + 12 O |
Electromagnetic Compatibility | EN/IEC 61000-4-6 |
Analogue Input Number | 0 |
Number Of Modules |
|
Discrete Output Number | 12 |
Maximum Power Dissipation In W | 4.3 W |
Color | White |
Discrete Input Logic | sink |
Isolation |
|
Discrete Input Number | 24 |
Local Signalling |
|
Surge Withstand |
|
Mechanical Durability | 20000000 cycles |
Input Impedance | 6.4 kOhm |
Electrical Connection | removable spring terminal block |
Enclosure Material | Plastic |
Input Filtering |
|
Voltage State 1 Guaranteed | >= 15 V |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511024EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511024EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Electromagnetic Fields |
|
Standards |
|
Mounting Support | DIN rail |
Storage Altitude | 0-3000 m |
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP20IEC 61131-2 |
Vibration Resistance |
|
Shock Resistance | 15 gn 11 ms |
Net Weight | 0.26 kg |
Pollution Degree | 2 IEC 60664 |
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 5-95 % without condensation |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
