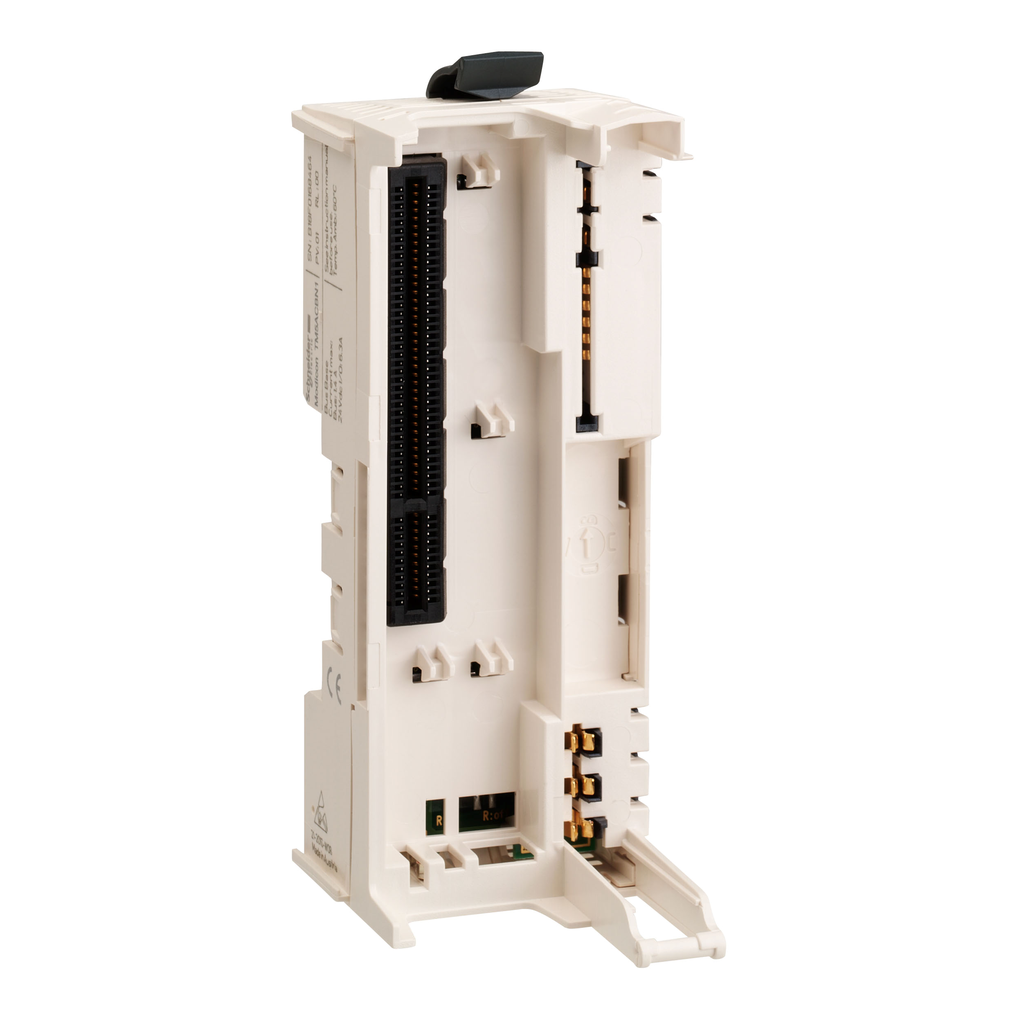

bus base, Modicon TM5, for field bus interface module and interface power, 24V DC, white
This product is part of the Modicon TM5 range, an offer of connection accessories for IP20 modular I/O system. The bus base module offers a rated supply voltage of 24V DC supplied with 2 protective plates. It is available in white color. It weighs 0.02kg. It is suitable for packaging, material working, material handling and machine control solution applications. It is compatible with Modicon M258, Modicon LMC078 and Modicon LMC058 range of products such as a TM5NCO1 interface module, TM5SPS3 power supply and TM5NS31. This IP20 modular IO system offers a flexible and scalable configuration of expansions by direct connection with the Modicon controllers. Flexible and scalable, designed for complex machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon TM5 |
|---|---|
| Accessory / Separate Part Category | communication accessories |
| Sale Per Indivisible Quantity | 1 |
| Product Compatibility |
|
| Accessory / Separate Part Type | bus base |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24 V DC |
| Net Weight | 0.02 kg |
| Color | White |
| Provided Equipment | supplied with 2 protective plates |
| Range Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511023EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511023EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- TM5NCO.. CANopen Electronic Interface Module, Instruction Sheet - S1A33623_03 (pdf)
- TM5NS31 Sercos bus interface module, Instruction Sheet - S1A55947_03 (pdf)
- TM5NEIP1. IP20 I/O Distributed Performance EtherNet/IP FieldBus Interface TM5 Module, Instruction Sheet - PHA71802_03 (pdf)
- Catalog Modicon TM5 High-Performance and Safe IP20 Modular I/O System_January 2023 - Catalog+Modicon+TM5_High+Performance+and+Safe+IP20+Modular+IO+System_January+2023 (pdf)
