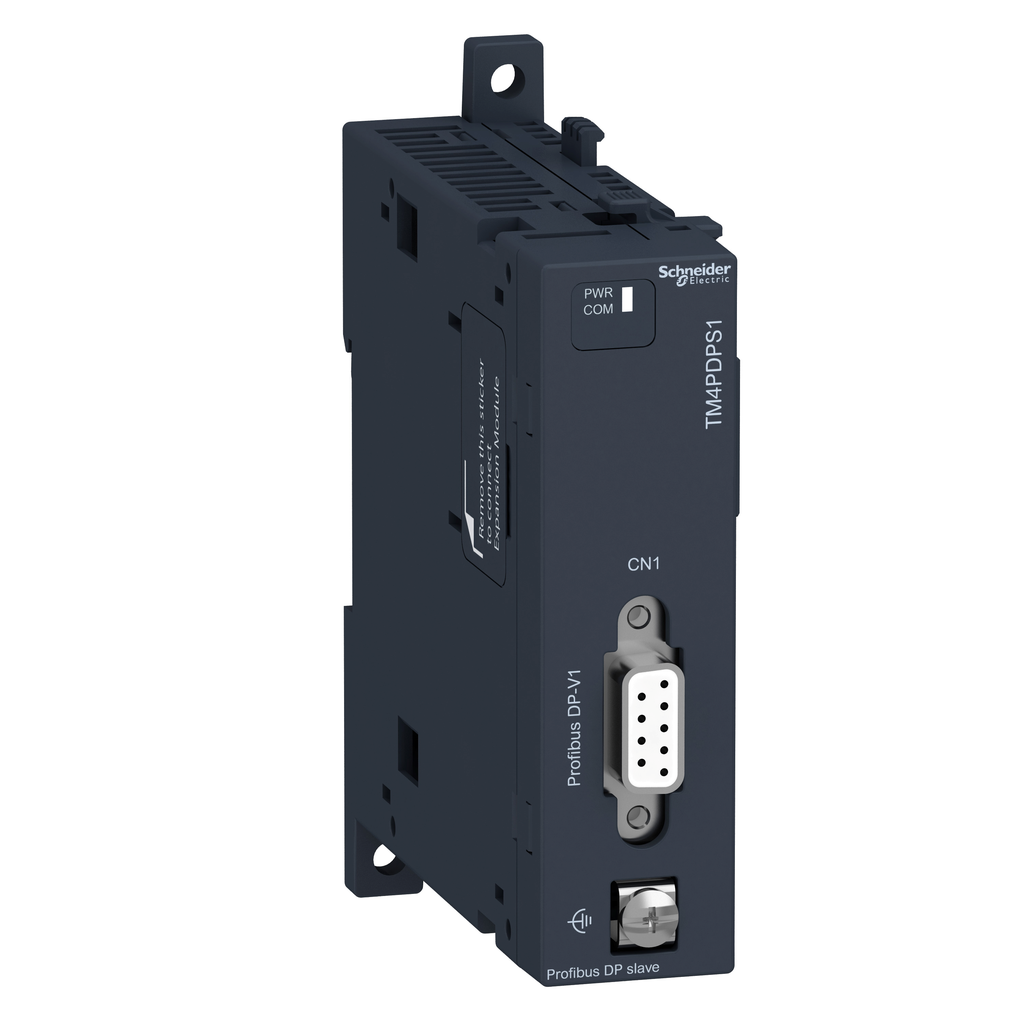

TM4PDPS1 - network switch module, Modicon M241, 1 Profibus DP slave

TM4PDPS1

network switch module, Modicon M241, 1 Profibus DP slave

This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	Profibus DP communication module
Electrical Connection	screw connector terminal for connecting the functional ground SUB-D 9 1 female connector for connecting Profibus
Height	90 mm
Integrated Connection Type	Profibus DP female SUB-D 9
Transmission Rate	1.5 Mbit/s 200-200 m 500 kbit/s 400-400 m 187.5 kbit/s 1000-1000 m 9.6...93.75 kbit/s 1200-1200 m 3...12 Mbit/s 100-100 m
Marking	CE
Net Weight	0.1 kg
Current Consumption	290 mA 5 V DC communication bus
Communication Port Protocol	Profibus DP V0 Profibus DP V1
Power Dissipation In W	1.5 W
Product Compatibility	Modicon M241 logic controller Modicon M251 logic controller
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for power supply 1 LED (green/yellow) for communication 1 LED (green/red)
Surge Withstand	1 kV power lines (DC) common mode EN/IEC 61000-4-5 2 kV power lines (AC) common mode EN/IEC 61000-4-5 2 kV relay output common mode EN/IEC 61000-4-5 1 kV I/O common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 0.5 kV I/O differential mode EN/IEC 61000-4-5
Range Compatibility	Modicon M251 Modicon M241
Width	25 mm
Depth	90 mm
Insulation	between bus and internal logic 1000 V DC
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403009EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	C-tick cULus
Resistance To Conducted Disturbances	10 V 0.15...80 MHz EN/IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
Standards	EN/IEC 61131-2 UL 508 EIA-485
Ambient Air Temperature For Operation	-10-55 °C horizontal installation -10-50 °C vertical installation
Storage Altitude	0-3000 m
Pollution Degree	2
Shock Resistance	15 gn 11 ms
Vibration Resistance	1 mm 5-13.2 Hz symmetrical rail 3 gn 8.7-150 Hz symmetrical rail 1 mm 5-13.2 Hz panel mounting 0.7 gn 13.2-100 Hz panel mounting
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Ip Degree Of Protection	IP20 with protective cover in place
Resistance To Electrostatic Discharge	8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2 8 kV in air Marine specification (LR, ABS, DNV, GL) 6 kV on contact Marine specification (LR, ABS, DNV, GL)
Resistance To Fast Transients	2 kV EN/IEC 61000-4-4 power lines) 2 kV EN/IEC 61000-4-4 relay output) 1.5 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 Ethernet line) 1 kV EN/IEC 61000-4-4 serial link)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL) radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL) conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011 radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL) radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL) conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
