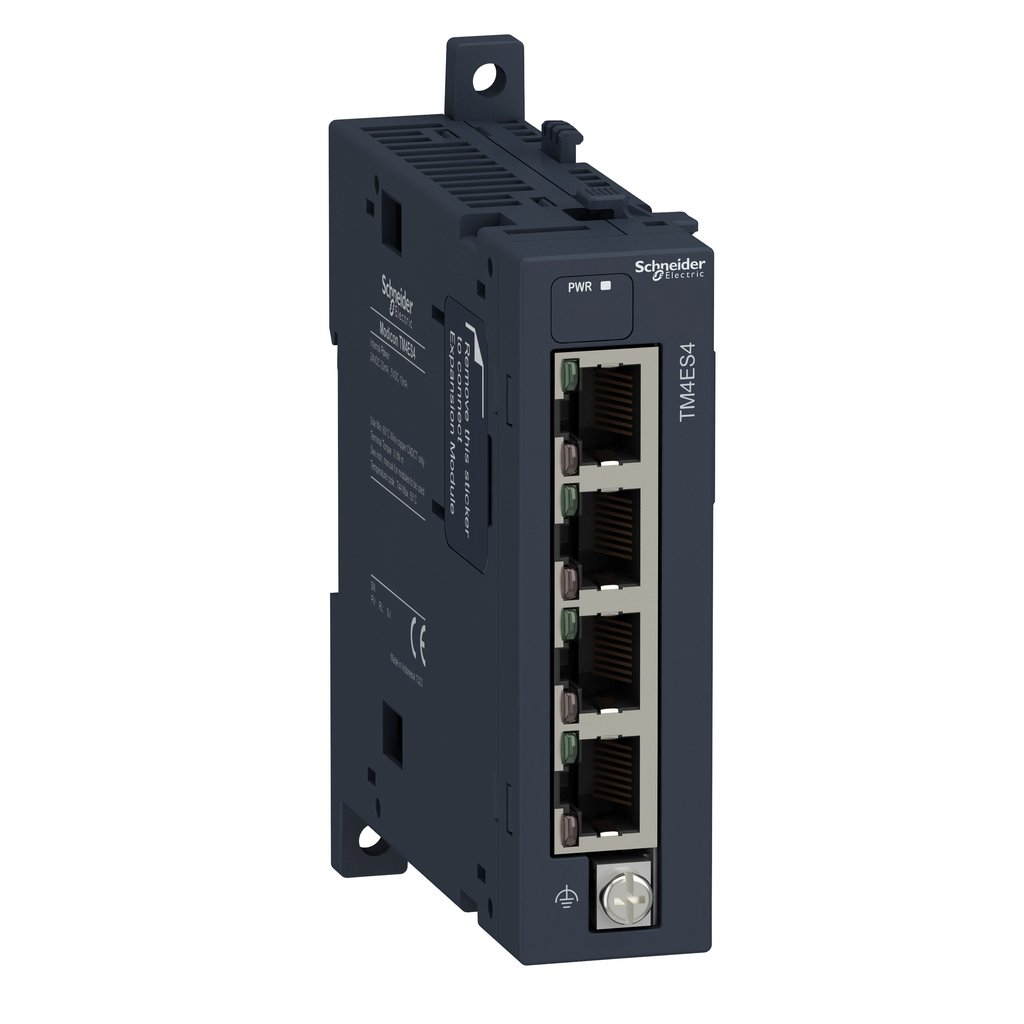

TM4ES4 - network switch module, Modicon M241, 4 Ethernet switchs

TM4ES4

network switch module, Modicon M241, 4 Ethernet switchs

This communication module is proposed as an option Modicon M241/251 controllers. This module provides an Ethernet connection with 4 ports on controllers without embedded Ethernet. It also provides a second Ethernet connection with 4 ports on controllers with embedded Ethernet (except on TM241CEC24x). It is equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	Ethernet unmanaged switch
Electrical Connection	RJ45 4 connectors for connecting Ethernet network screw connector terminal for connecting the functional ground
Height	90 mm
Integrated Connection Type	Ethernet 4 RJ45
Communication Service	Modbus TCP server Modbus TCP slave device FTP NGVL monitoring IEC VAR ACCESS programming SNMP Modbus TCP client downloading updating firmware Ethernet/IP slave device DHCP client
Port Ethernet	10BASE-T/100BASE-TX - 4 copper cable
Transmission Rate	10/100 Mbit/s
Marking	CE
Redundancy	no
Net Weight	0.125 kg
Current Consumption	360 mA 5 V DC communication bus
Communication Port Protocol	Ethernet IP/Modbus TCP TCP (Transmission Control Protocol) UDP (User Datagram Protocol) SNMP
Product Compatibility	Modicon M241 logic controller Modicon M251 logic controller
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for PWR 1 LED (green) for Ethernet link 1 LED per channel (green/yellow) for Ethernet port activity 1 LED per channel (green)
Surge Withstand	1 kV power lines (DC) common mode EN/IEC 61000-4-5 2 kV power lines (AC) common mode EN/IEC 61000-4-5 2 kV relay output common mode EN/IEC 61000-4-5 1 kV I/O common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 0.5 kV I/O differential mode EN/IEC 61000-4-5
Range Compatibility	Modicon M251 Modicon M241
Web Services	web server
Width	25 mm
Maximum Number Of Connections	8 Modbus server 16 Ethernet/IP device
Depth	90 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403009EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	cULus C-tick
Resistance To Conducted Disturbances	10 V 0.15...80 MHz EN/IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
Standards	UL 508 EN/IEC 61131-2
Ambient Air Temperature For Operation	-10-55 °C horizontal installation -10-50 °C vertical installation
Storage Altitude	0-3000 m
Pollution Degree	2
Shock Resistance	15 gn 11 ms
Vibration Resistance	1 mm 5-13.2 Hz symmetrical rail 3 gn 8.7-150 Hz symmetrical rail 1 mm 5-13.2 Hz panel mounting 0.7 gn 13.2-100 Hz panel mounting
Ambient Air Temperature For Storage	-25-70 °C
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Ip Degree Of Protection	IP20 with protective cover in place
Resistance To Electrostatic Discharge	8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2 8 kV in air Marine specification (LR, ABS, DNV, GL) 6 kV on contact Marine specification (LR, ABS, DNV, GL)
Resistance To Fast Transients	2 kV EN/IEC 61000-4-4 power lines) 2 kV EN/IEC 61000-4-4 relay output) 1.5 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 Ethernet line) 1 kV EN/IEC 61000-4-4 serial link)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL) radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL) conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011 radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL) radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL) conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
