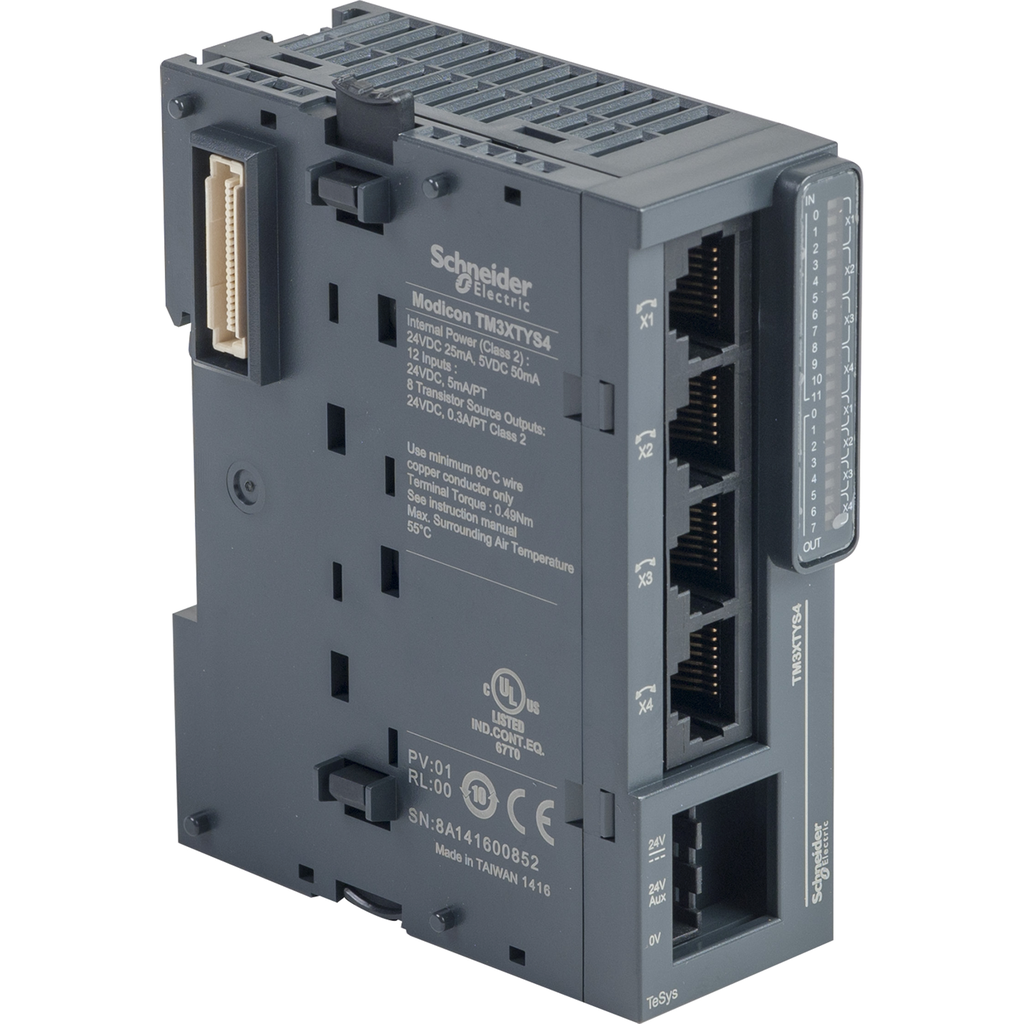

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote Catalogue[Us] Rated Supply Voltage | 24 V DC external supply - 15...20 %) |
---|---|
Range Of Product | Modicon TM3 |
Number Of Input Channels | 12 |
Product Or Component Type | parallel interface module |
Product Specific Application | TeSys U |
Range Compatibility |
|
Number Of Output Channels | 8 |
Reset | automatic reset |
Electrical Connection |
|
Height | 90 mm |
Maximum Load Current |
|
Output Voltage | 24 V DC transistor output |
Response Time |
|
Net Weight | 0.115 kg |
Current Consumption |
|
Input Voltage Limits | 19.2...28.8 V per input |
Output Protection Type | against overload current limiter |
Local Signalling |
|
Mounting Support |
|
Width | 30 mm |
Input Current Limits | 5-5 mA per input |
Depth | 85 mm |
Insulation |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1402009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1402009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Ambient Air Temperature For Operation |
|
Storage Altitude | 0-3000 m |
Pollution Degree | 2 |
Shock Resistance | 15 gn 11 ms |
Resistance To Magnetic Fields | 30 A/m 50/60 Hz EN/IEC 61000-4-8 |
Marking | CE |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Surge Withstand |
|
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Resistance To Fast Transients |
|
Electromagnetic Emission |
|
