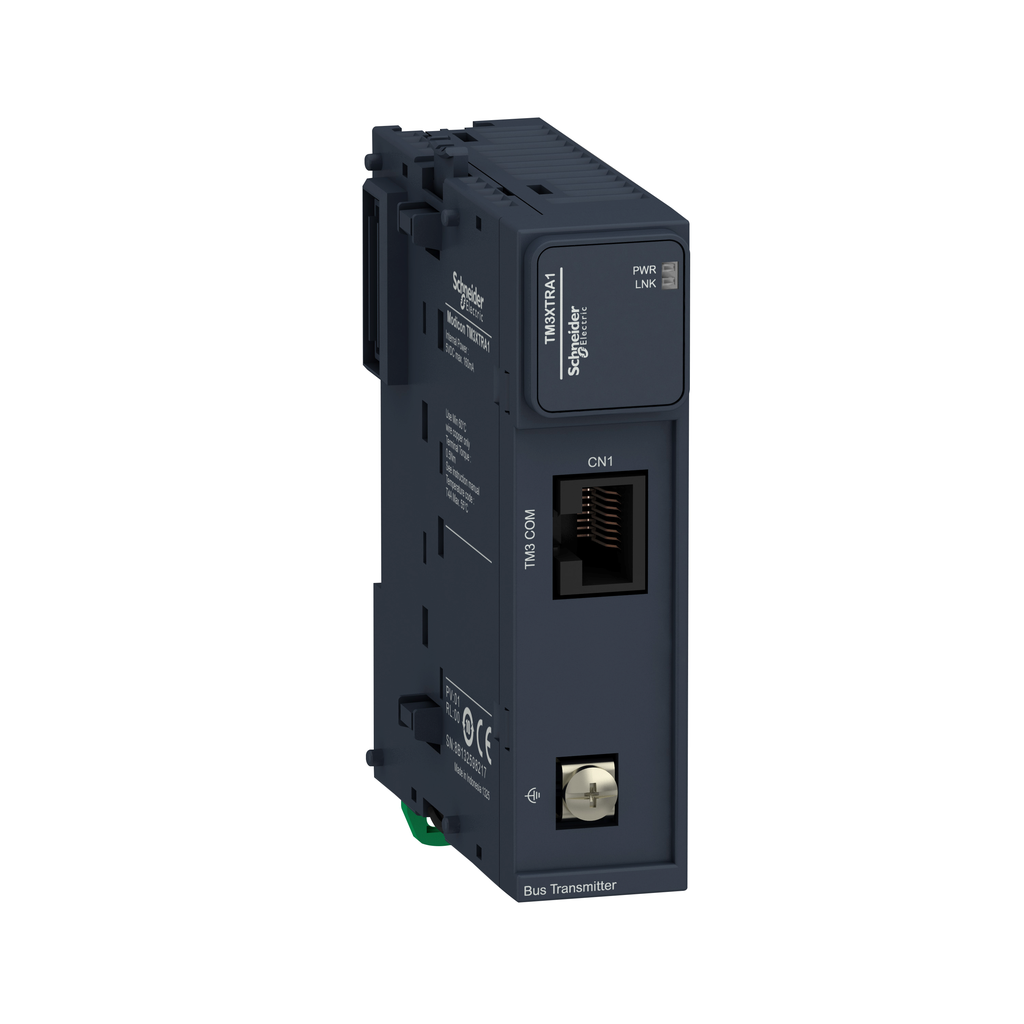

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM3 |
---|---|
Product Or Component Type | remote transmitter module |
Range Compatibility |
|
Resistance To Conducted Disturbances |
|
Electrical Connection |
|
Height | 90 mm |
Resistance To Electromagnetic Fields |
|
Marking | CE |
Net Weight | 0.065 kg |
Current Consumption |
|
Maximum Power Dissipation In W | 0.6 W |
Cable Distance Between Devices | 0.5-5 mm extension cable 2 RJ45 between receiver and transmitter |
Mounting Support |
|
Local Signalling |
|
Resistance To Electrostatic Discharge |
|
Width | 23.65 mm |
Depth | 73.3 mm |
Electromagnetic Emission |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403011EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403011EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Storage Altitude | 0-3000 m |
Standards |
|
Pollution Degree | 2 |
Ambient Air Temperature For Operation |
|
Shock Resistance | 15 gn 11 ms |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 5-95 % without condensation |
Ip Degree Of Protection | IP20 with protective cover in place |
Operating Altitude | 0...6561.68 ft (0...2000 m) |
