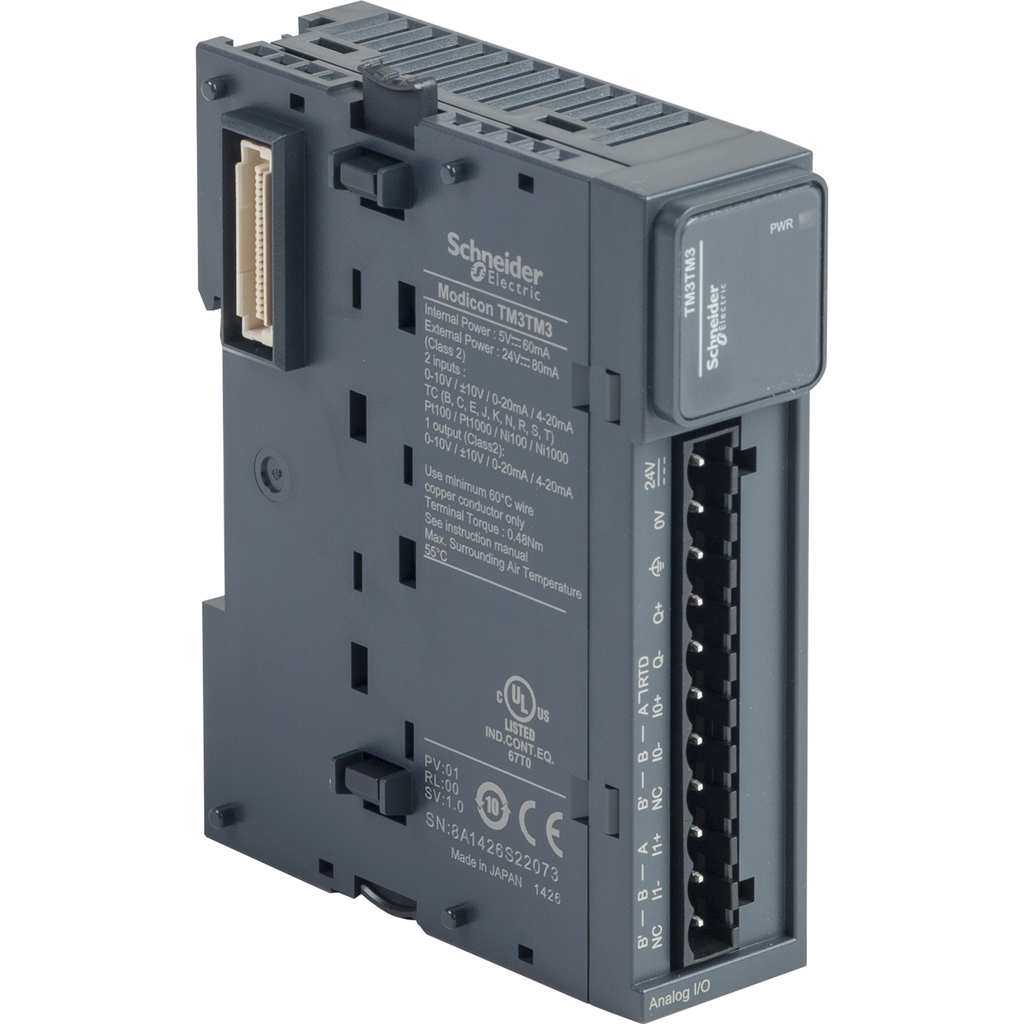

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 2 inputs, 1 output with 16bit, 15bit + sign input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 60mA, 55mA at 5V DC via bus connector, 55mA, 80mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs, outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM3 |
---|---|
Analogue Output Type |
|
Product Or Component Type | input/output analog module |
Analogue Input Number | 2 |
Analogue Output Number | 1 |
Range Compatibility |
|
Analogue Input Type |
|
Electrical Connection | 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs, outputs and supply |
Height | 90 mm |
Input Impedance |
|
Load Type | resistive |
Type Of Cable | twisted shielded pairs cable <30 m input/output |
Non-Linearity |
|
Lsb Value |
|
Permissible Continuous Overload |
|
Marking | CE |
Analogue Input Resolution |
|
Net Weight | 0.115 kg |
Absolute Accuracy Error |
|
Current Consumption |
|
Conversion Time |
|
Analogue Output Resolution | 12 bits |
Temperature Drift | +/- 0.006 %FS/°C |
Supply Voltage Limits | 20.4-28.8 V |
Stabilisation Time | 1 ms |
Load Impedance Ohmic |
|
Output Ripple | 20 mV |
Mounting Support |
|
Local Signalling | for PWR 1 LED (green) |
Surge Withstand |
|
Cross Talk | <= 1 LSB |
Width | 23.6 mm |
Depth | 70 mm |
[Us] Rated Supply Voltage | 24 V DC |
Insulation |
|
Sampling Duration |
|
Repeat Accuracy |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1402009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1402009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Standards | EN/IEC 61131-2 |
Immunity To Microbreaks | 10 ms |
Ambient Air Temperature For Operation |
|
Storage Altitude | 0-3000 m |
Pollution Degree | 2 |
Shock Resistance | 15 gn 11 ms |
Resistance To Magnetic Fields | 30 A/m EN/IEC 61000-4-8 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Resistance To Electrostatic Discharge |
|
Ip Degree Of Protection | IP20 |
Resistance To Fast Transients | 1 kV EN/IEC 61000-4-4 I/O) |
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
