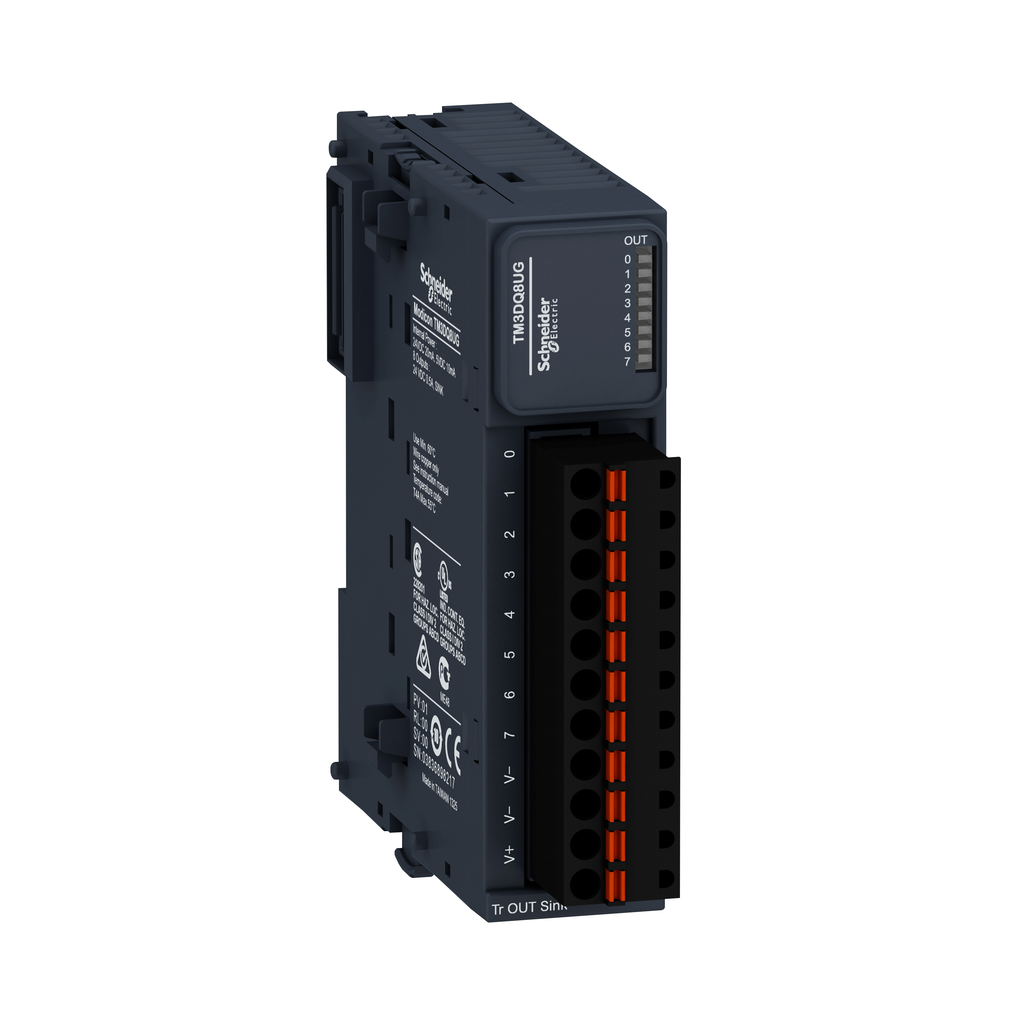

TM3DQ8UG – Discrete output module, Modicon TM3, 8 outputs transistor NPN (spring)
TM3DQ8UG
Discrete output module, Modicon TM3, 8 outputs transistor NPN (spring)

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Discrete Output Type transistor
Range Of Product Modicon TM3
Discrete Output Logic negative logic (sink)
Discrete Output Number 8
Product Or Component Type discrete output module
Discrete Output Current 50 mA transistor output
Discrete Output Voltage 24 V DC transistor output
Range Compatibility
  • Modicon M241
  • Modicon M251
  • Modicon M221
  • Modicon M262
Maximum Cable Distance Between Devices unshielded cable <30 m transistor output
Electrical Connection 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs
Height 90 mm
Marking CE
Response Time
  • 450 µs (turn-on)
  • 450 µs (turn-off)
Discrete I/O Number 8
Net Weight 0.76 kg
Maximum Voltage Drop <0.4 V
Current Consumption
  • 5 mA 5 V DC via bus connector at state off)
  • 0 mA 24 V DC via bus connector at state off)
  • 20 mA 24 V DC via bus connector at state on)
  • 10 mA 5 V DC via bus connector at state on)
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • plate or panel with fixing kit
Local Signalling for output status 1 LED per channel (green)
Width 27.4 mm
Depth 84.6 mm
Maximum Leakage Current 0.1 mA transistor output
Insulation
  • between output and internal logic 500 V AC
  • non-insulated between outputs
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1402009EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1402009EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CE
  • cULus
  • UKCA
  • RCM
  • EAC
  • cULus HazLoc
Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-6
  • 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3
  • 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
Standards EN/IEC 61131-2
Ambient Air Temperature For Operation
  • -10-35 °C vertical installation
  • -10-55 °C horizontal installation
Storage Altitude 0-3000 m
Pollution Degree 2
Shock Resistance 15 gn 11 ms
Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8
Vibration Resistance
  • 3.5 mm 5-8.4 Hz DIN rail
  • 3 gn 8.4-150 Hz DIN rail
  • 3.5 mm 5-8.4 Hz panel
  • 3 gn 8.4-150 Hz panel
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity
  • 10-95 %, without condensation in operation)
  • 10-95 %, without condensation in storage)
Surge Withstand 1 kV I/O common mode EN/IEC 61000-4-5 DC
Ip Degree Of Protection IP20 with protective cover in place
Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2
  • 4 kV on contact EN/IEC 61000-4-2
Operating Altitude 0...6561.68 ft (0...2000 m)
Resistance To Fast Transients 1 kV I/OEN/IEC 61000-4-4
Electromagnetic Emission
  • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011
  • radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
