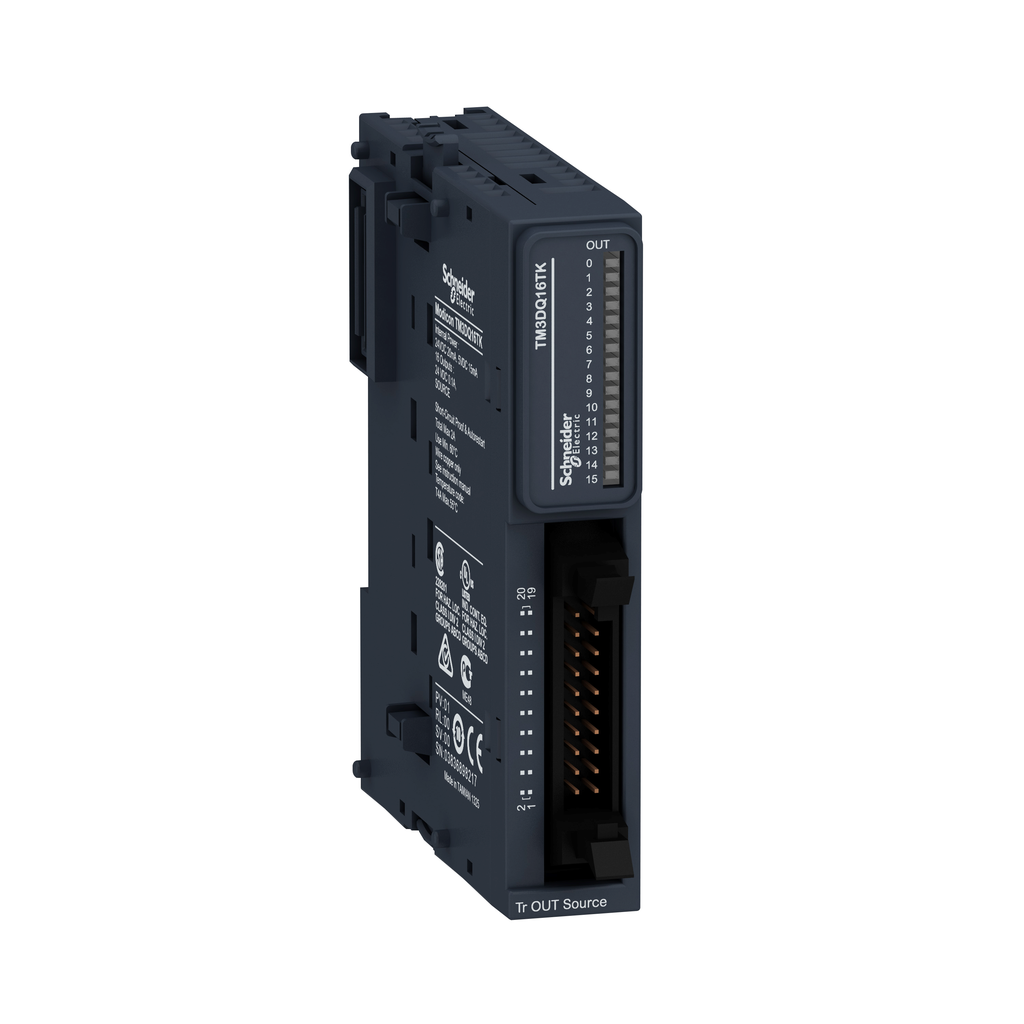

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with HE-10 connector outputs for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.72kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | transistor |
---|---|
Range Of Product | Modicon TM3 |
Discrete Output Logic | positive logic (source) |
Discrete Output Number | 16 |
Product Or Component Type | discrete output module |
Discrete Output Current | 100 mA transistor output |
Discrete Output Voltage | 24 V DC transistor output |
Range Compatibility |
|
Maximum Cable Distance Between Devices | unshielded cable <5 m transistor output |
Electrical Connection | HE-10 connector for outputs |
Height | 90 mm |
Marking | CE |
Response Time |
|
Discrete I/O Number | 16 |
Net Weight | 0.72 kg |
Maximum Voltage Drop | <0.4 V |
Current Consumption |
|
Mounting Support |
|
Local Signalling | for output status 1 LED per channel (green) |
Width | 21.4 mm |
Depth | 81.3 mm |
Maximum Tungsten Load | <9.6 W transistor output |
Maximum Leakage Current | 0.1 mA transistor output |
Insulation |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1402009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1402009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Standards | EN/IEC 61131-2 |
Ambient Air Temperature For Operation |
|
Storage Altitude | 0-3000 m |
Pollution Degree | 2 |
Shock Resistance | 15 gn 11 ms |
Resistance To Magnetic Fields | 30 A/m 50/60 Hz EN/IEC 61000-4-8 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Surge Withstand | 1 kV I/O common mode EN/IEC 61000-4-5 DC |
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Resistance To Fast Transients | 1 kV I/OEN/IEC 61000-4-4 |
Electromagnetic Emission |
|
