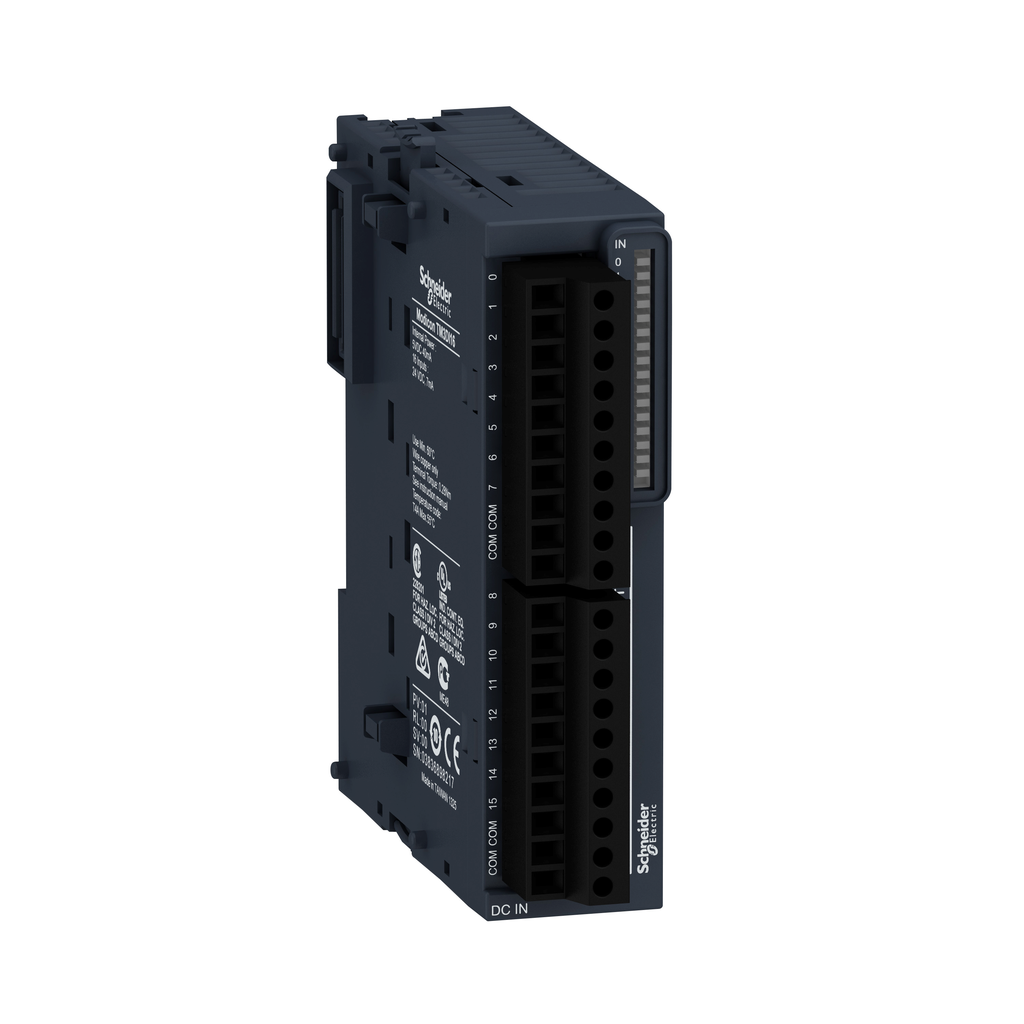

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Input Logic | sink or source (positive/negative) |
---|---|
Range Of Product | Modicon TM3 |
Discrete Input Voltage | 24 V |
Product Or Component Type | discrete input module |
Discrete Input Current | 7 mA input |
Range Compatibility |
|
Discrete Input Number | 16 input IEC 61131-2 type 3 |
Input Impedance | 3.4 kOhm |
Maximum Cable Distance Between Devices | unshielded cable <50 m regular input |
Electrical Connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs |
Height | 90 mm |
Discrete Input Voltage Type | DC |
Current State 1 Guaranteed | >= 2.5 mA input) |
Marking | CE |
Response Time |
|
Discrete I/O Number | 16 |
Net Weight | 0.1 kg |
Voltage State 0 Guaranteed | 0...5 V input |
Current Consumption |
|
Voltage State 1 Guaranteed | 15...28.8 V input |
Current State 0 Guaranteed | <= 1 mA input) |
Mounting Support |
|
Local Signalling | for input status 1 LED per channel (green) |
Width | 27.4 mm |
Depth | 84.6 mm |
Insulation |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1402009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1402009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Standards | EN/IEC 61131-2 |
Ambient Air Temperature For Operation |
|
Storage Altitude | 0-3000 m |
Pollution Degree | 2 |
Shock Resistance | 15 gn 11 ms |
Resistance To Magnetic Fields | 30 A/m 50/60 Hz EN/IEC 61000-4-8 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Surge Withstand | 1 kV I/O common mode EN/IEC 61000-4-5 DC |
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Resistance To Fast Transients | 1 kV I/OEN/IEC 61000-4-4 |
Electromagnetic Emission |
|
