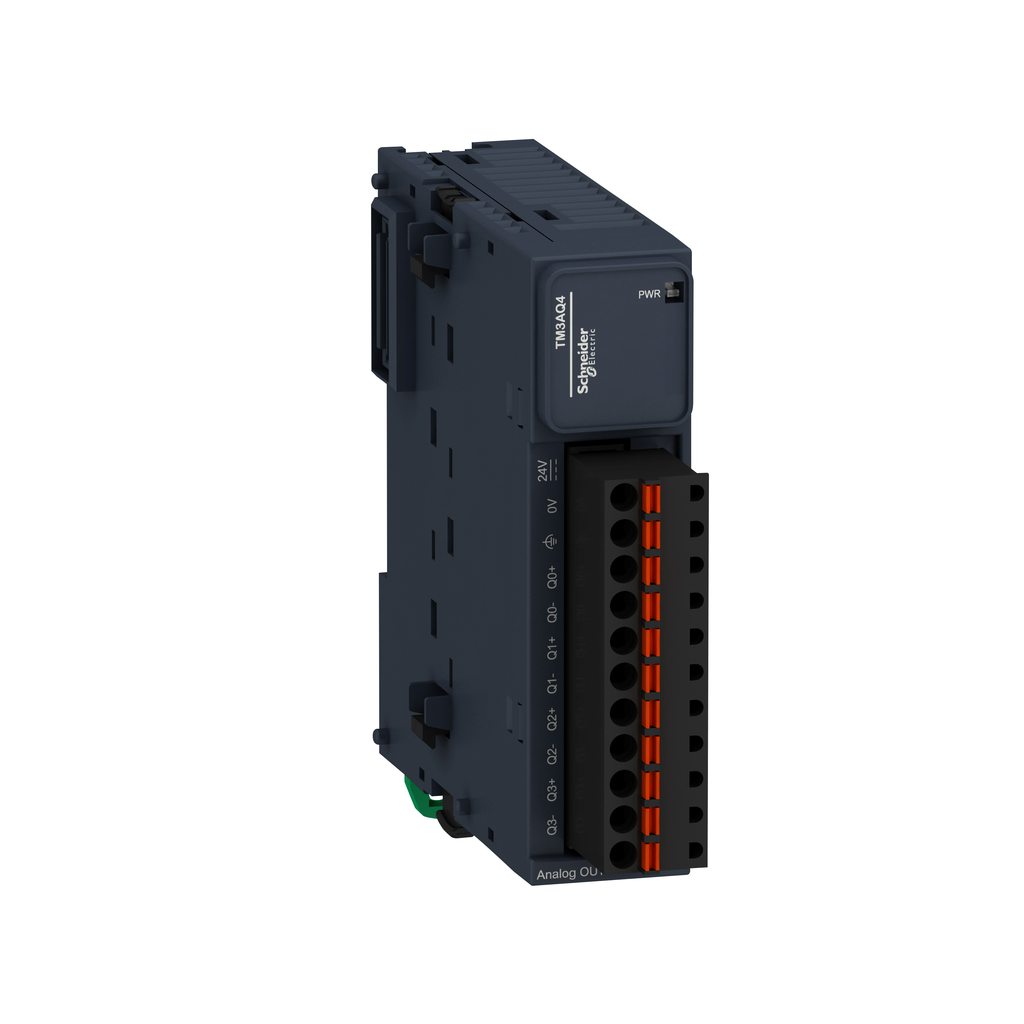

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 4 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 125mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for outputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM3 |
---|---|
Analogue Output Type |
|
Product Or Component Type | analog output module |
Analogue Output Number | 4 |
Range Compatibility |
|
Electrical Connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs and supply |
Height | 90 mm |
Load Type | resistive |
Type Of Cable | twisted shielded pairs cable <30 m output |
Non-Linearity | +/- 0.2 %FS |
Lsb Value |
|
Marking | CE |
Analogue Input Resolution |
|
Net Weight | 0.1 kg |
Absolute Accuracy Error |
|
Current Consumption |
|
Conversion Time | 1 ms + 1 ms per channel + 1 controller cycle time |
Analogue Output Resolution |
|
Temperature Drift | +/- 0.01 %FS/°C |
Supply Voltage Limits | 20.4-28.8 V |
Stabilisation Time | 1 ms |
Load Impedance Ohmic |
|
Output Ripple | 20 mV |
Mounting Support |
|
Local Signalling | for PWR 1 LED (green) |
Surge Withstand |
|
Cross Talk | <= 1 LSB |
Width | 23.6 mm |
Depth | 70 mm |
[Us] Rated Supply Voltage | 24 V DC |
Insulation |
|
Repeat Accuracy | +/- 0.4 %FS |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1402009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1402009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Standards | EN/IEC 61131-2 |
Immunity To Microbreaks | 10 ms |
Ambient Air Temperature For Operation |
|
Storage Altitude | 0-3000 m |
Pollution Degree | 2 |
Shock Resistance | 15 gn 11 ms |
Resistance To Magnetic Fields | 30 A/m EN/IEC 61000-4-8 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Resistance To Electrostatic Discharge |
|
Ip Degree Of Protection | IP20 |
Resistance To Fast Transients | 1 kV EN/IEC 61000-4-4 I/O) |
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
