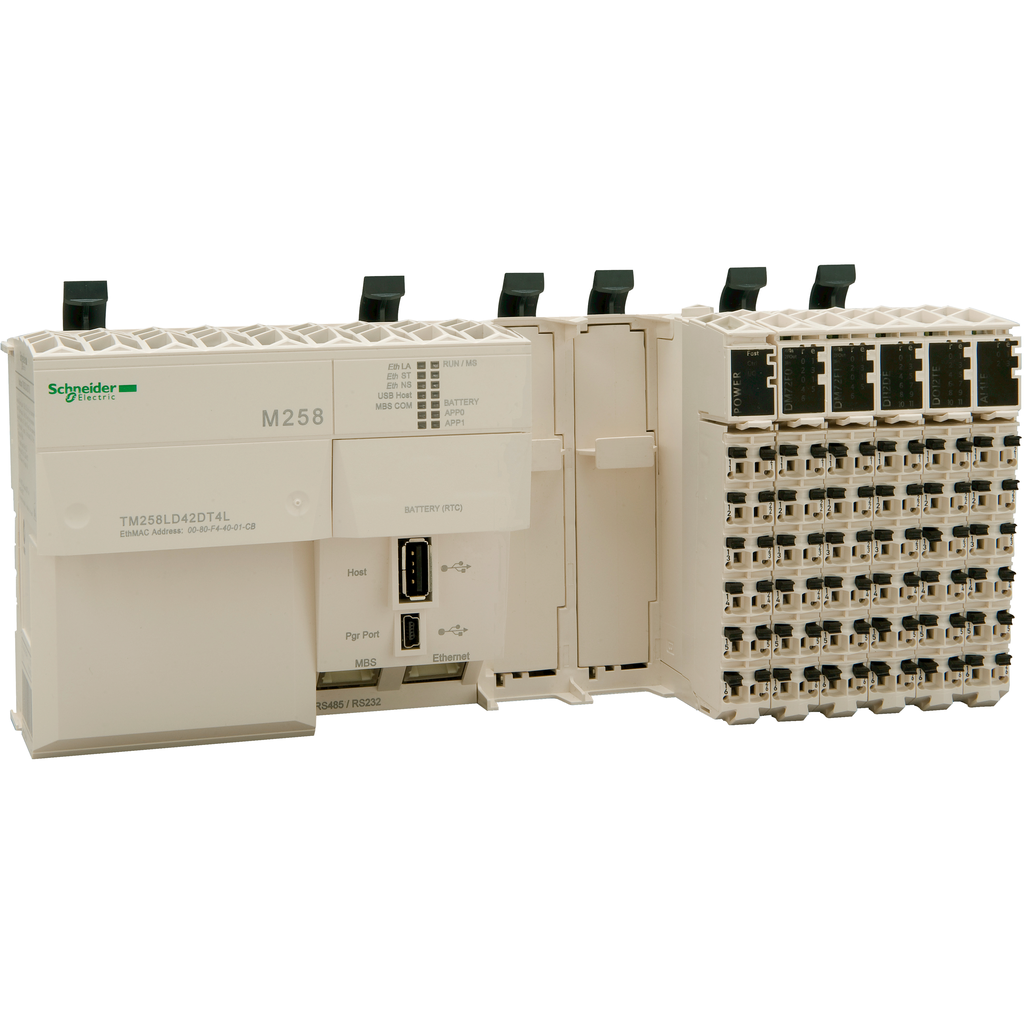

This product is part of the Modicon M258 range, an offer of logic controllers for high performance machine builders. It has 42 logic I/O and it is supplied with 24V dc, and embeds 5 communication ports, 1 RS232/RS485 serial link, 1 USB mini-B programming port, 1 USB type A program transfer port, 1 Ethernet port and 1 CANopen port. Plus 2 free slots PCI. It is supplied with I/O modules with a removable terminal block with locking lever and a display block showing the I/O states, power supply module with removable terminal block and locking lever. This controller embeds a performant CPU (22ns/inst), several communication ports as Ethernet & CANopen master and advanced built-in features as data logging, WebServer and FTP server. Discrete input logic type are sink for fast inputs, sink for regular inputs, and source for logic inputs. Analog input type are current 0mA to 20mA or 4mA to 20mA, voltage +/- 10V. Discrete output logic type is source. There is an isolation between channels 500Vrms and internal logic and no isolation between channels. It supports 128MB flash and 64MB internal RAM memory. It is an IP20 rated product. Its dimensions are 237.5mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.77kg. It is suitable for used in general machine control, conveying and packaging applications. This product is certified by CE, GOST-R CSA, C-Tick and CULus. It meets IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142 and UL 508 standards. The capacity of M258 logic controllers can be enhanced with the Modicon TM5 expansion module offer. This controller is also equipped with a locking lever for mounting/dismounting on symmetrical DIN rail. Compact and totally expandable, the Modicon M258 Logic Controllers are designated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. 30% saving time in assembly, wiring and commissioning.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M258 |
---|---|
Discrete Output Number |
|
Product Or Component Type | logic controller |
Discrete I/O Number | 42 |
Analogue Input Number | 4 |
Warranty | 18 months |
Discrete Input Logic |
|
Data Backed Up | variables of type retain and retain persistent CR2477M Renata, 1.5 years |
Input Impedance |
|
Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
Line Rated Current |
|
Maximum Cable Distance Between Devices |
|
Height | 99 mm |
Discrete Output Logic | source |
Discrete Input Voltage | 24 V |
Integrated Connection Type |
|
Mounting Support | symmetrical DIN rail |
Discrete Input Voltage Type | DC |
Power Consumption In W | 14.14 W |
Marking | CE |
Net Weight | 0.77 kg |
Discrete Output Current | 4 mA fast output |
Voltage State 0 Guaranteed |
|
Configurable Filtering Time |
|
Discrete Output Voltage | 24 V DC |
Isolation Between Channels | none |
Isolation Between Channels And Internal Logic | 500 Vrms AC |
Voltage State 1 Guaranteed |
|
Supply Voltage Limits | 20.4-28.8 V |
Output Voltage Limits | 19.2...28.8 V |
Peak Current |
|
Local Signalling |
|
Discrete Input Current |
|
Analogue Input Resolution | 12 bits |
Realtime Clock |
|
Width | 237.5 mm |
Depth | 85 mm |
Analogue Input Type |
|
[Us] Rated Supply Voltage |
|
Discrete Input Number |
|
Memory Description |
|
Counting Input Number | 8 200 kHz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110507EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1105007EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Electromagnetic Fields |
|
Standards |
|
Storage Altitude | 0-3000 m |
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP20IEC 61131-2 |
Vibration Resistance |
|
Shock Resistance | 15 gn 11 ms |
Disturbance Radiated/Conducted | CISPR 11 |
Pollution Degree | 2 IEC 60664 |
Surge Withstand |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity | 5-95 % without condensation |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
