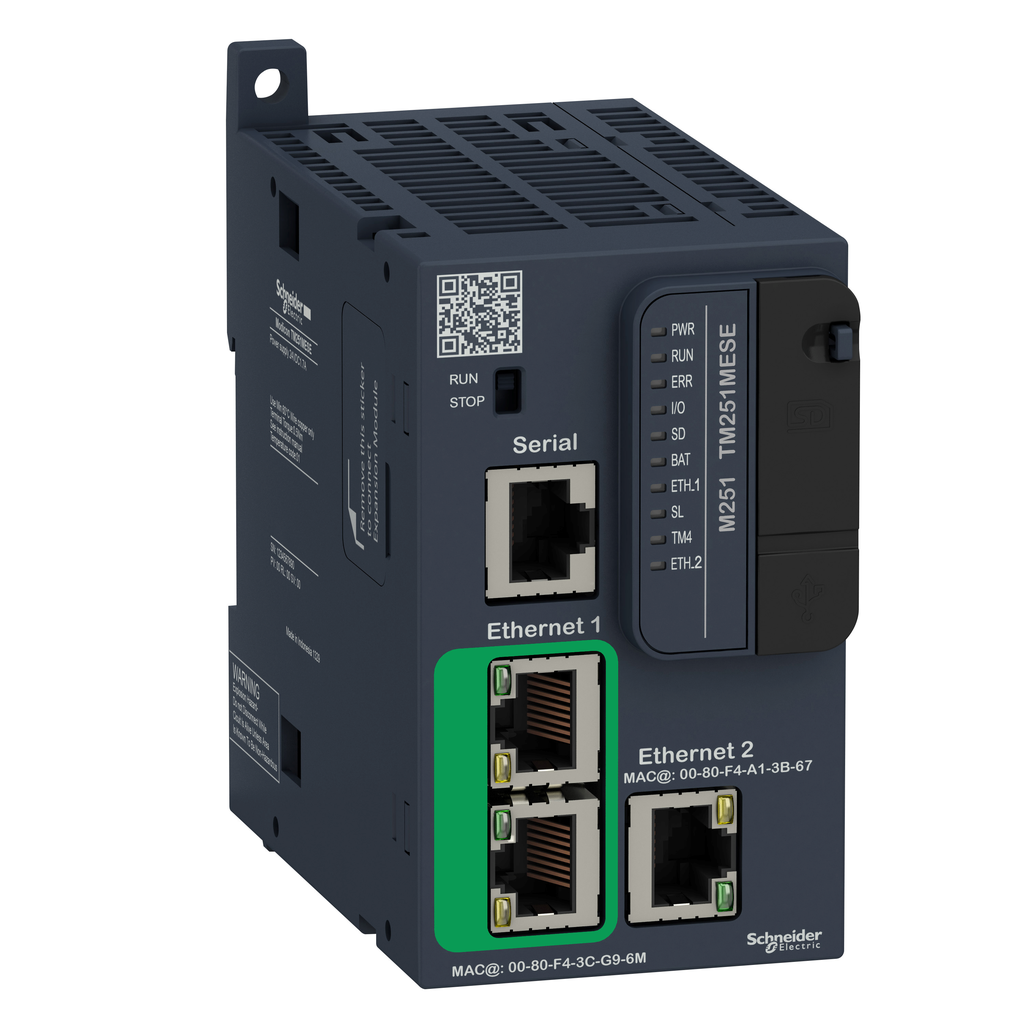

This product is part of the Modicon M251 range, an offer of logic controllers for modular and distributed architectures. This logic controller provides 7 local, 14 remote I/O expansion modules. It is a Modicon logic controller with a rated supply voltage of 24V DC, an inrush current of 50A and a power consumption of 32.6W to 40.4W. Boost the performance of machine with powerful data transfer via SD Card, embedded web and FTP server and more. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial with RJ45 connector and RS232/RS485 interface, dual-port Ethernet with RJ45 connector and ethernet port Ethernet 2 with RJ45 connector. It is a Modicon M251 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 32GB. It is an IP20 rated product. Its dimensions are 54mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.22kg. The Modicon M251 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, CSA and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M251 through intuitive machine programming with SoMachine, ready-to-use applications and function blocks. Increase flexibility, while saving space in your cabinet with the Modicon M251 logic controller for modular and distributed architectures.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M251 |
---|---|
Product Or Component Type | logic controller |
[Us] Rated Supply Voltage | 24 V DC |
Data Backed Up | 128 MB built-in flash memory backup of user programs |
Electrical Connection | removable screw terminal block power supply pitch 5.08 mm) |
Height | 90 mm |
Inrush Current | 50 A |
Power Consumption In W | 32.6-40.4 W with max number of I/O expansion module) |
Port Ethernet |
|
Transmission Rate |
|
Clock Drift | <= 60 s/month 25-25 °C |
Battery Type | BR2032 lithium non-rechargeable 4 year(s) |
Communication Port Protocol |
|
Marking | CE |
Backup Time | 2 years 25 °C |
Cycle Time |
|
Maximum Number Of I/O Expansion Module |
|
Net Weight | 0.22 kg |
Application Structure |
|
Memory Capacity |
|
Supply Voltage Limits | 20.4-28.8 V |
Integrated Connection Type |
|
Mounting Support |
|
Communication Service |
|
Local Signalling |
|
Surge Withstand |
|
Execution Time For 1 Kinstruction |
|
Realtime Clock | with |
Web Services | web server |
Width | 54 mm |
Maximum Number Of Connections |
|
Number Of Slave |
|
Depth | 95 mm |
Data Storage Equipment | <= 16 GB SD card optional) |
Insulation |
|
Supply | serial)serial link supply 5 V, <200 mA |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1401009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1401009EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Immunity To Microbreaks | 10 ms |
Storage Altitude | 0-3000 m |
Standards |
|
Pollution Degree | 2 |
Ambient Air Temperature For Operation |
|
Shock Resistance | 15 gn 11 ms |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
