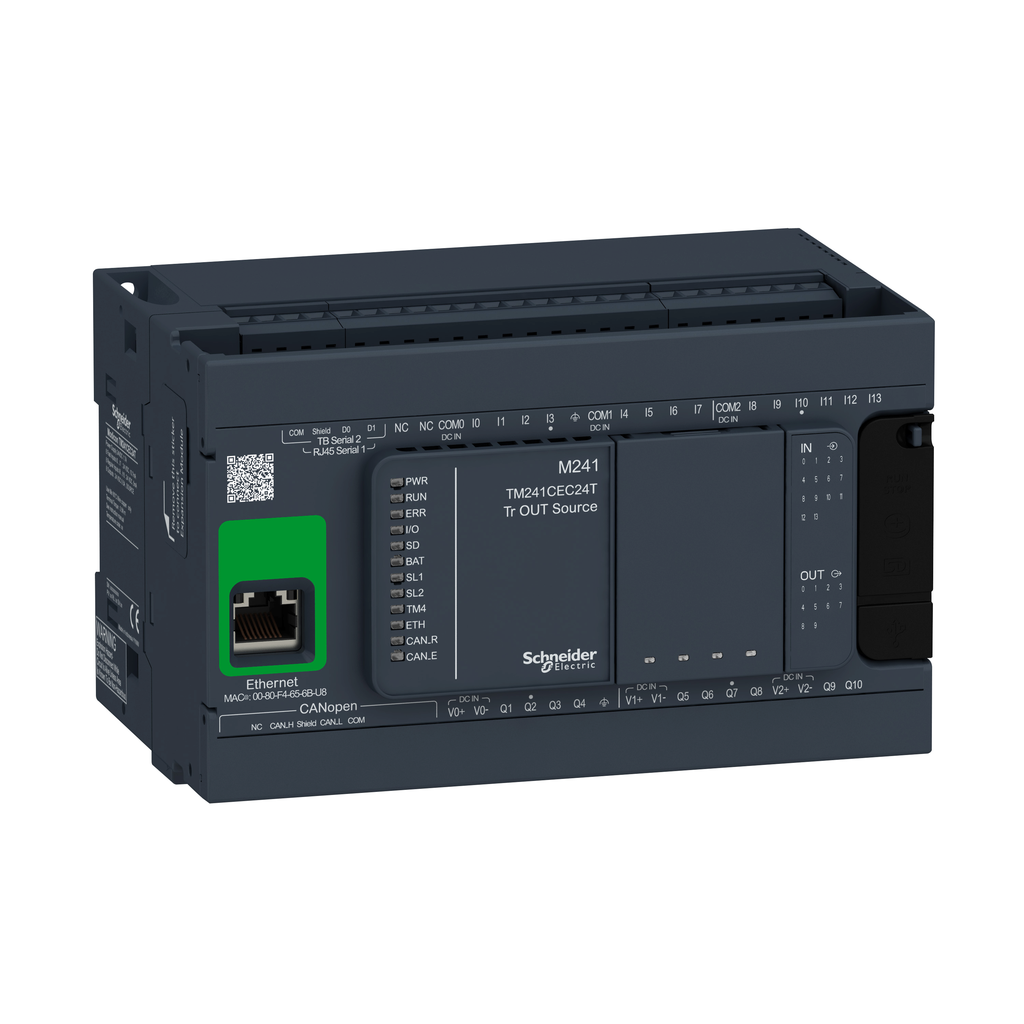

TM241CEC24T – logic controller, Modicon M241, 24 IO, transistor, PNP, Ethernet, CAN master
TM241CEC24T
logic controller, Modicon M241, 24 IO, transistor, PNP, Ethernet, CAN master

This TM241 controller is part of the Modicon M241 Logic controller range. It has 24 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable terminal block for connecting the power supply, a button cell backup battery BR2032. This M241 logic controller has 5 embedded communication ports, two serial links (RS232/RS485 and RS485) and USB mini-B programming port. It also has an Ethernet port and a CANopen port. It enables the control of simple movements or of control loops. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Discrete Output Type transistor
Range Of Product Modicon M241
Discrete Output Number 10 transistor 4 fast output
Product Or Component Type logic controller
Discrete Output Current
  • 0.5 A transistor output Q0...Q9)
  • 0.1 A fast output (PTO mode) Q0...Q3)
Discrete Output Voltage 24 V DC transistor output
[Us] Rated Supply Voltage 24 V DC
Discrete Input Number 14 , discrete input 8 fast input IEC 61131-2 Type 1
Discrete Input Logic sink or source
Data Backed Up 128 MB built-in flash memory backup of user programs
Electrical Connection
  • removable screw terminal block for inputs and outputs pitch 5.08 mm)
  • removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Input Impedance
  • 4.7 kOhm input
  • 2.81 kOhm fast input
Maximum Cable Distance Between Devices
  • unshielded cable <50 m input
  • shielded cable <10 m fast input
  • unshielded cable <50 m output
  • shielded cable <3 m fast output
Height 90 mm
Canopen Feature Profile
  • DS 301 V4.02
  • DR 303-1
Discrete Output Logic positive logic (source)
Discrete Input Voltage 24 V
Inrush Current 50 A
Power Consumption In W 32.6-40.4 W with max number of I/O expansion module)
Discrete Input Voltage Type DC
Positioning Functions
  • PTO 4 100 kHz)
  • PTO 4 transistor output 1 kHz)
Accuracy
  • +/- 0.1 % 0.02-0.1 kHz fast output
  • +/- 1 % 0.1-1 kHz fast output
Port Ethernet 10BASE-T/100BASE-TX - 1 copper cable
Maximum Current Per Output Common
  • 2 A Q0...Q3 fast output
  • 2 A Q4...Q7 output
  • 1 A Q8...Q9 output
Transmission Rate
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485
  • 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
  • 480 Mbit/s 3-3 m USB
  • 10/100 Mbit/s Ethernet
  • 1000 kbit/s 20-20 m CANopen
  • 800 kbit/s 40-40 m CANopen
  • 500 kbit/s 100-100 m CANopen
  • 250 kbit/s 250-250 m CANopen
  • 125 kbit/s 500-500 m CANopen
  • 50 kbit/s 1000-1000 m CANopen
  • 20 kbit/s 2500-2500 m CANopen
Clock Drift <= 60 s/month 25-25 °C
Battery Type BR2032 lithium non-rechargeable 4 year(s)
Communication Port Protocol non isolated serial link Modbus master/slave
Marking CE
Backup Time 2 years 25 °C
Discrete I/O Number 24
Reset Time
  • 10 ms automatic reset output
  • 12 s automatic reset fast output
Maximum Number Of I/O Expansion Module
  • 7 (local I/O-Architecture)
  • 14 (remote I/O-Architecture)
Net Weight 0.53 kg
Application Structure
  • 8 external event tasks
  • 4 cyclic master tasks
  • 3 cyclic master tasks + 1 freewheeling task
  • 8 event tasks
Voltage State 0 Guaranteed <= 5 V input
Maximum Voltage Drop <1 V
Configurable Filtering Time
  • 1 µs fast input
  • 12 ms fast input
  • 0 ms input
  • 1 ms input
  • 4 ms input
  • 12 ms input
Output Voltage Limits 30 V DC
Memory Capacity
  • 8 MB program
  • 64 MB system memory RAM
Communication Service
  • SNMP client/server
  • Modbus TCP slave device
  • Modbus TCP server
  • Modbus TCP client
  • IEC VAR ACCESS
  • FTP client/server
  • SQL client
  • DHCP client
  • Ethernet/IP adapter
  • send and receive email from the controller based on TCP/UDP library
  • web server (WebVisu & XWeb system)
  • OPC UA server
  • DNS client
Voltage State 1 Guaranteed >= 15 V input
Supply Voltage Limits 20.4-28.8 V
Integrated Connection Type
  • non isolated serial link serial 1 RJ45 RS232/RS485
  • non isolated serial link serial 2 removable screw terminal block RS485
  • USB port mini B USB 2.0
  • Ethernet RJ45
  • CANopen J1939 male SUB-D 9
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • plate or panel with fixing kit
Control Signal Type
  • A/B 100 kHz fast input (HSC mode)
  • pulse/direction 200 kHz fast input (HSC mode)
  • single phase 200 kHz fast input (HSC mode)
Local Signalling
  • for PWR 1 LED (green)
  • for RUN 1 LED (green)
  • for module error (ERR) 1 LED (red)
  • for I/O error (I/O) 1 LED (red)
  • for SD card access (SD) 1 LED (green)
  • for BAT 1 LED (red)
  • for SL1 1 LED (green)
  • for SL2 1 LED (green)
  • for bus fault on TM4 (TM4) 1 LED (red)
  • for I/O state 1 LED per channel (green)
  • for Ethernet port activity 1 LED (green)
  • for CANopen run 1 LED (green)
  • for CANopen error 1 LED (green)
Surge Withstand
  • 1 kV power lines (DC) common mode EN/IEC 61000-4-5
  • 1 kV shielded cable common mode EN/IEC 61000-4-5
  • 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5
  • 1 kV relay output differential mode EN/IEC 61000-4-5
  • 1 kV input common mode EN/IEC 61000-4-5
  • 1 kV transistor output common mode EN/IEC 61000-4-5
Response Time
  • 50 µs turn-on, I0...I13 input
  • 50 µs turn-off, I0...I13 input
  • <= 2 µs turn-on, I0...I7 fast input
  • <= 2 µs turn-off, I0...I7 fast input
  • <= 34 µs turn-on, Q0...Q9 output
  • <= 250 µs turn-off, Q0...Q9 output
  • <= 2 µs turn-on, Q0...Q3 fast output
  • <= 2 µs turn-off, Q0...Q3 fast output
Discrete Input Current
  • 5 mA input
  • 10.7 mA fast input
Maximum Output Frequency
  • 20 kHz fast output (PWM mode)
  • 100 kHz fast output (PLS mode)
  • 1 kHz output
Execution Time For 1 Kinstruction
  • 0.3 ms event and periodic task
  • 0.7 ms other instruction
Realtime Clock with
Web Services web server
Width 150 mm
Maximum Number Of Connections
  • 16 Ethernet/IP device
  • 8 Modbus server
Number Of Slave 63 CANopen
Depth 95 mm
Maximum Tungsten Load <2.4 W
Protection Type
  • short-circuit protection
  • short-circuit and overload protection with automatic reset
  • reverse polarity protection fast output
Maximum Leakage Current 5 µA output
Data Storage Equipment <= 16 GB SD card optional)
Insulation
  • between supply and internal logic 500 V AC
  • non-insulated between supply and ground
  • between input and internal logic 500 V AC
  • non-insulated between inputs
  • between fast input and internal logic 500 V AC
  • between output and internal logic 500 V AC
  • non-insulated between outputs
  • between fast output and internal logic 500 V AC
Supply serial 1)serial link supply 5 V, <200 mA
Counting Input Number
  • 4 fast input (HSC mode) 200 kHz
  • 14 standard input 1 kHz
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1307080EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1307080EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • RCM
  • cULus
  • CE
  • UKCA
  • DNV-GL
  • ABS
  • LR
Resistance To Conducted Disturbances
  • 10 V 0.15...80 MHz EN/IEC 61000-4-6
  • 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)
  • 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields
  • 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3
  • 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3
  • 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
Immunity To Microbreaks 10 ms
Storage Altitude 0-3000 m
Standards
  • ANSI/ISA 12-12-01
  • CSA C22.2 No 142
  • CSA C22.2 No 213
  • EN/IEC 61131-2:2007
  • Marine specification (LR, ABS, DNV, GL)
  • UL 508
Pollution Degree 2
Ambient Air Temperature For Operation
  • -10-50 °C vertical installation)
  • -10-55 °C horizontal installation)
Shock Resistance 15 gn 11 ms
Vibration Resistance
  • 3.5 mm 5-8.4 Hz symmetrical rail
  • 3 gn 8.4-150 Hz symmetrical rail
  • 3.5 mm 5-8.4 Hz panel mounting
  • 3 gn 8.4-150 Hz panel mounting
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity
  • 10-95 %, without condensation in operation)
  • 10-95 %, without condensation in storage)
Ip Degree Of Protection IP20 with protective cover in place
Resistance To Electrostatic Discharge
  • 8 kV in air EN/IEC 61000-4-2
  • 4 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients
  • 2 kV EN/IEC 61000-4-4 power lines)
  • 1 kV EN/IEC 61000-4-4 Ethernet line)
  • 1 kV EN/IEC 61000-4-4 serial link)
  • 1 kV EN/IEC 61000-4-4 input)
  • 1 kV EN/IEC 61000-4-4 transistor output)
Operating Altitude 0...6561.68 ft (0...2000 m)
Electromagnetic Emission
  • conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011
  • conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011
  • radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011
  • conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011
  • radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
