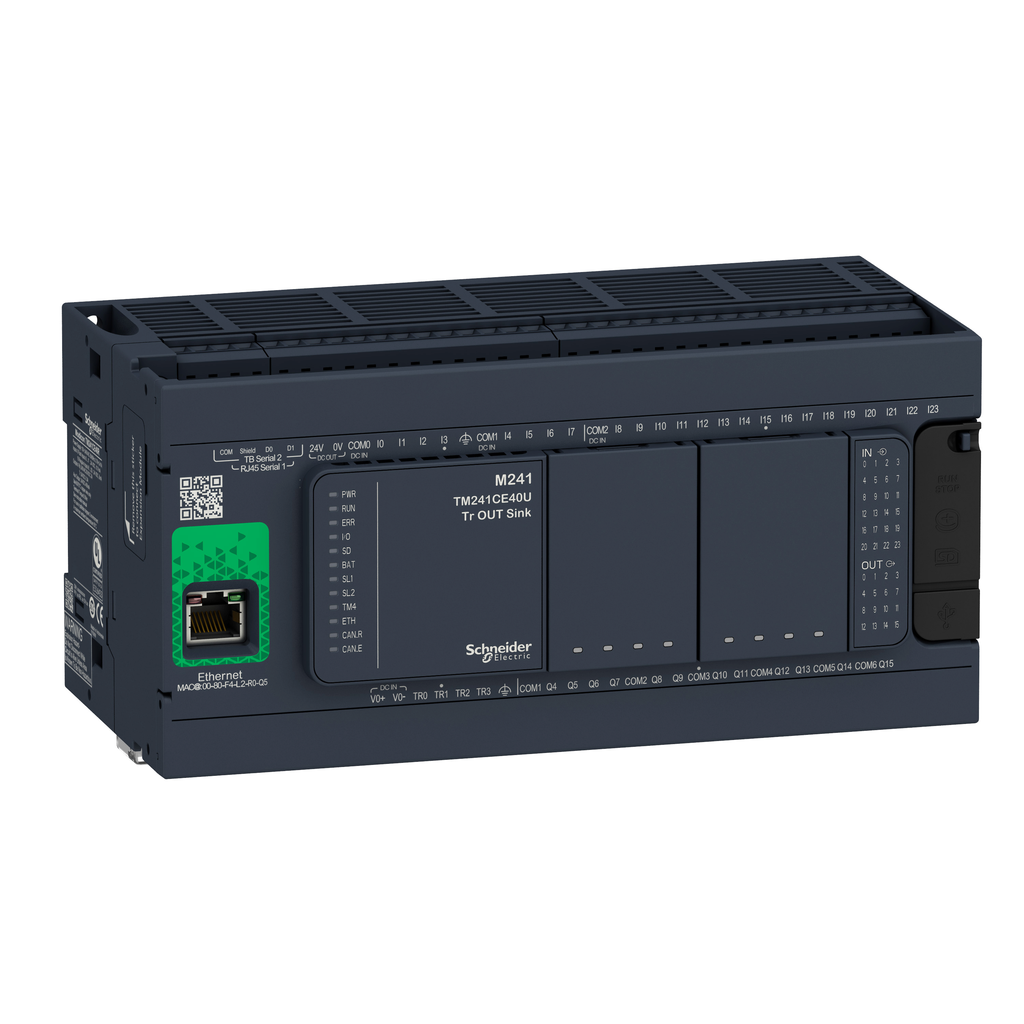

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 24 discrete, 8 fast inputs, 12 relay, 4 transistor, 4 fast outputs with transistor, ethernet relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type |
|
---|---|
Range Of Product | Modicon M241 |
Discrete Output Number |
|
Product Or Component Type | logic controller |
Discrete Output Current |
|
Discrete Output Voltage |
|
[Us] Rated Supply Voltage | 100...240 V AC |
Discrete Input Number | 24 , discrete input 8 fast input IEC 61131-2 Type 1 |
Network Frequency | 50/60 Hz |
Discrete Input Logic | sink or source |
Data Backed Up | 128 MB built-in flash memory backup of user programs |
Electrical Connection |
|
Input Impedance | 4.7 kOhm input |
Maximum Cable Distance Between Devices |
|
Height | 90 mm |
Discrete Output Logic | positive logic (source) |
Discrete Input Voltage | 24 V |
Discrete Input Voltage Type | DC |
Positioning Functions | PTO 4 100 kHz) |
Accuracy |
|
Port Ethernet | 10BASE-T/100BASE-TX - 1 copper cable |
Transmission Rate |
|
Clock Drift | <= 60 s/month 25-25 °C |
Battery Type | BR2032 lithium non-rechargeable 4 year(s) |
Communication Port Protocol | non isolated serial link Modbus master/slave |
Marking | CE |
Backup Time | 2 years 25 °C |
Discrete I/O Number | 40 |
Reset Time |
|
Cycle Time |
|
Maximum Number Of I/O Expansion Module |
|
Net Weight | 0.62 kg |
Application Structure |
|
Voltage State 0 Guaranteed | <= 5 V input |
Configurable Filtering Time | 1 µs fast input |
Output Voltage Limits |
|
Memory Capacity |
|
Communication Service |
|
Voltage State 1 Guaranteed | >= 15 V input |
Supply Voltage Limits | 85-264 V |
Integrated Connection Type |
|
Sensor Power Supply | 24-24 V DC 400 mA supplied by the controller |
Mounting Support |
|
Control Signal Type |
|
Local Signalling |
|
Surge Withstand |
|
Response Time | 50 µs turn-on, I0...I15 input |
Discrete Input Current | 7 mA input |
Maximum Output Frequency |
|
Execution Time For 1 Kinstruction |
|
Realtime Clock | with |
Web Services | web server |
Width | 190 mm |
Maximum Number Of Connections |
|
Number Of Slave |
|
Depth | 95 mm |
Protection Type |
|
Data Storage Equipment | <= 16 GB SD card optional) |
Insulation |
|
Supply | serial 1)serial link supply 5 V, <200 mA |
Counting Input Number |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1307080EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1307080EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Immunity To Microbreaks | 10 ms |
Storage Altitude | 0-3000 m |
Standards |
|
Pollution Degree | 2 |
Ambient Air Temperature For Operation |
|
Shock Resistance | 15 gn 11 ms |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
