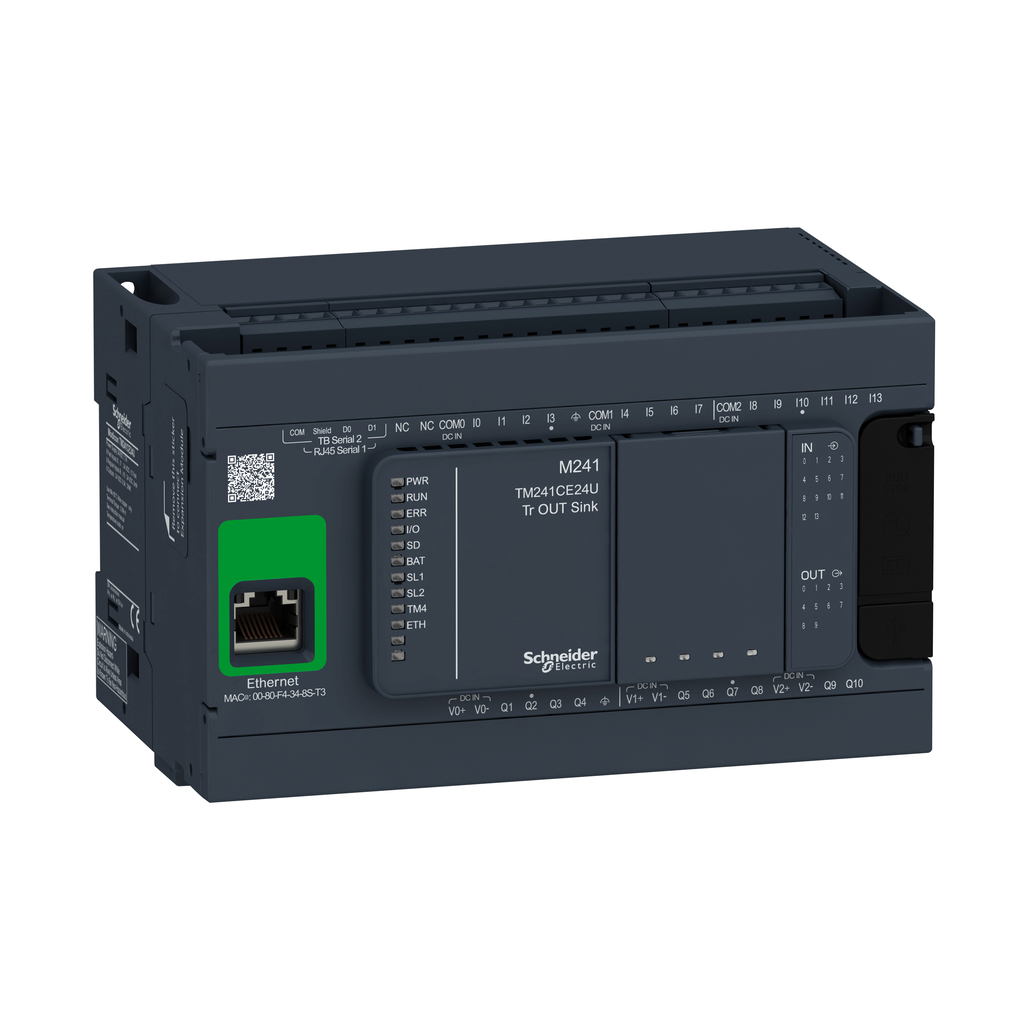

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 10 transistor, 4 fast outputs with ethernet NPN transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic negative output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0, non isolated serial link 1 with RJ45 and RS232/RS485 interface, non isolated serial link 2 with removable screw terminal block and RS485 interface and ethernet with RJ45 . It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | transistor |
---|---|
Range Of Product | Modicon M241 |
Discrete Output Number | 10 transistor 4 fast output |
Product Or Component Type | logic controller |
Discrete Output Current |
|
Discrete Output Voltage | 24 V DC transistor output |
[Us] Rated Supply Voltage | 24 V DC |
Discrete Input Number | 14 , discrete input 8 fast input IEC 61131-2 Type 1 |
Discrete Input Logic | sink or source |
Data Backed Up | 128 MB built-in flash memory backup of user programs |
Electrical Connection |
|
Input Impedance |
|
Maximum Cable Distance Between Devices |
|
Height | 90 mm |
Discrete Output Logic | negative logic (sink) |
Discrete Input Voltage | 24 V |
Inrush Current | 50 A |
Power Consumption In W | 32.6-40.4 W with max number of I/O expansion module) |
Discrete Input Voltage Type | DC |
Positioning Functions |
|
Accuracy |
|
Port Ethernet | 10BASE-T/100BASE-TX - 1 copper cable |
Maximum Current Per Output Common |
|
Transmission Rate |
|
Clock Drift | <= 60 s/month 25-25 °C |
Battery Type | BR2032 lithium non-rechargeable 4 year(s) |
Communication Port Protocol | non isolated serial link Modbus master/slave |
Marking | CE |
Backup Time | 2 years 25 °C |
Discrete I/O Number | 24 |
Reset Time |
|
Cycle Time |
|
Maximum Number Of I/O Expansion Module |
|
Net Weight | 0.53 kg |
Application Structure |
|
Voltage State 0 Guaranteed | <= 5 V input |
Maximum Voltage Drop | <1 V |
Configurable Filtering Time |
|
Output Voltage Limits | 30 V DC |
Memory Capacity |
|
Communication Service |
|
Voltage State 1 Guaranteed | >= 15 V input |
Supply Voltage Limits | 20.4-28.8 V |
Integrated Connection Type |
|
Mounting Support |
|
Control Signal Type |
|
Local Signalling |
|
Surge Withstand |
|
Response Time |
|
Discrete Input Current |
|
Maximum Output Frequency |
|
Execution Time For 1 Kinstruction |
|
Realtime Clock | with |
Web Services | web server |
Width | 150 mm |
Maximum Number Of Connections |
|
Number Of Slave |
|
Depth | 95 mm |
Maximum Tungsten Load | <2.4 W |
Protection Type |
|
Maximum Leakage Current | 5 µA output |
Data Storage Equipment | <= 16 GB SD card optional) |
Insulation |
|
Supply | serial 1)serial link supply 5 V, <200 mA |
Counting Input Number |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1307080EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1307080EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Immunity To Microbreaks | 10 ms |
Storage Altitude | 0-3000 m |
Standards |
|
Pollution Degree | 2 |
Ambient Air Temperature For Operation |
|
Shock Resistance | 15 gn 11 ms |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity |
|
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
