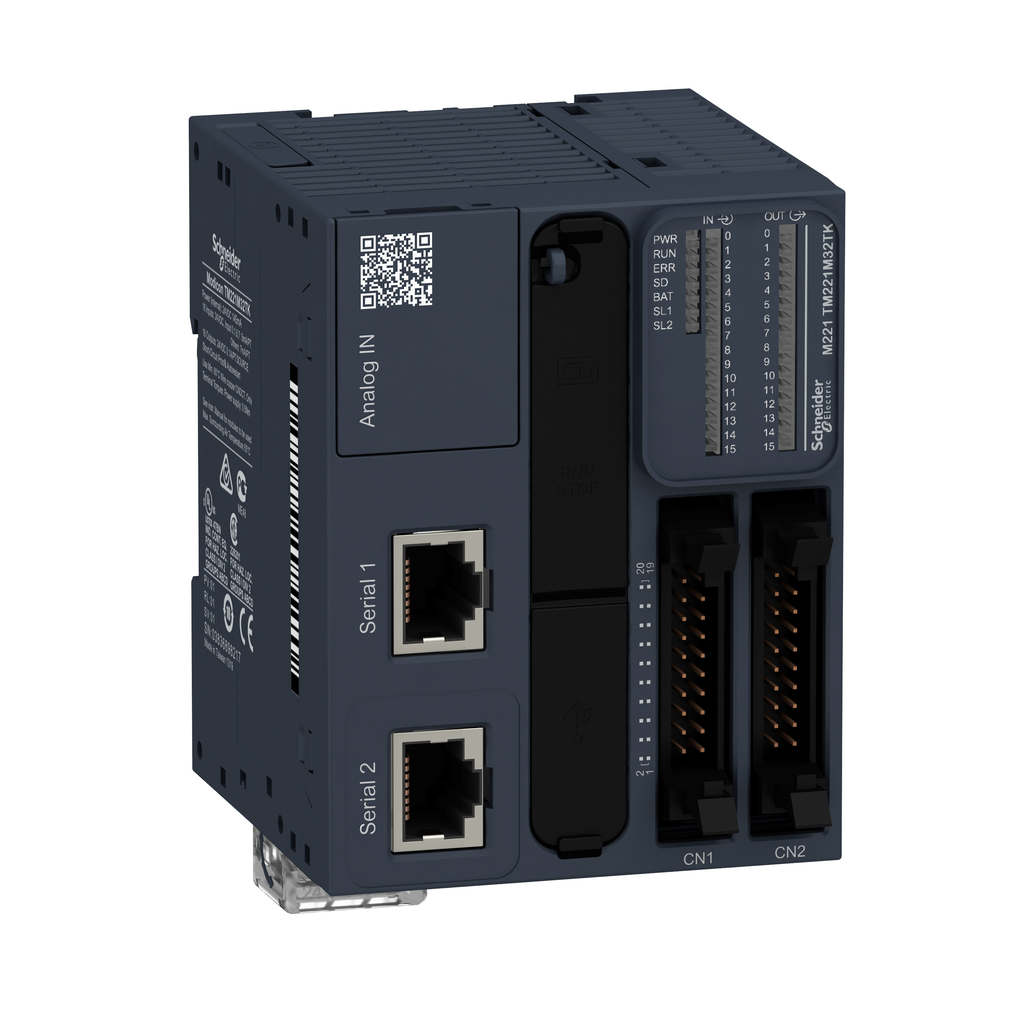

TM221M32TK - logic controller, Modicon M221, 32 IO, transistor, PNP

TM221M32TK

logic controller, Modicon M221, 32 IO, transistor, PNP

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 16 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.1A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.27kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Discrete Output Type	transistor
Range Of Product	Modicon M221
Discrete Output Number	16 transistor 2 fast output
Product Or Component Type	logic controller
Discrete Output Current	0.1 A
Discrete Output Voltage	24 V DC
Analogue Input Number	2 0...10 V
[Us] Rated Supply Voltage	24 V DC
Discrete Input Number	16 , discrete input 4 fast input IEC 61131-2 Type 1
Discrete Input Logic	sink or source (positive/negative)
Data Backed Up	256 kB built-in flash memory backup of application and data
Exct Time For Event Task	60 µs response time
Input Impedance	3.4 kOhm discrete input 100 kOhm analog input 4.9 kOhm fast input
Electrical Connection	terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs mini B USB 2.0 connector for a programming terminal HE-10 connector, 20 for inputs HE-10 connector, 20 for outputs
Maximum Cable Distance Between Devices	shielded cable <10 m fast input unshielded cable <30 m output unshielded cable <30 m digital input unshielded cable <1 m analog input shielded cable <3 m fast output
Height	90 mm
Discrete Output Logic	positive logic (source)
Discrete Input Voltage	24 V
Maximum Power Consumption In W	22.3 W 24 V with max number of I/O expansion module) 3.5 W 24 V without I/O expansion module)
Inrush Current	35 A
Discrete Input Voltage Type	DC
Communication Service	Modbus master Modbus slave
Positioning Functions	PTO 2 pulse/direction 100 kHz) PTO 1 CW/CCW 100 kHz)
Maximum Current Per Output Common	1.6 A
Transmission Rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 480 Mbit/s USB
Clock Drift	<= 30 s/month 25-25 °C
Battery Type	BR2032 or CR2032X lithium non-rechargeable
Output Frequency	100 kHz fast output (PWM/PLS mode) Q0...Q1 5 kHz output Q2...Q3 0.1 kHz output Q4...Q15
Communication Port Protocol	USB port USB - SoMachine-Network non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Protection Type	short-circuit and overload protection with automatic reset short-circuit protection on output overload and short-circuit protection 0.2 A
Marking	CE
Backup Time	1 year 25 °C by interruption of power supply)
Discrete I/O Number	32
Reset Time	1 s automatic reset
Regulation Loop	adjustable PID regulator up to 14 simultaneous loops
Maximum Number Of I/O Expansion Module	7 (local I/O-Architecture) 14 (remote I/O-Architecture)
Power Supply Output Current	0.52-0.52 A 5 V expansion bus 0.48-0.48 A 24 V expansion bus
Net Weight	0.27 kg
Application Structure	1 configurable freewheeling/cyclic master task 1 cyclic auxiliary task 8 interrupt tasks
Voltage State 0 Guaranteed	<= 5 V input
Maximum Voltage Drop	<1 V
Configurable Filtering Time	0 ms input 3 ms input 12 ms input
Maximum Size Of Object Areas	8000 %MW memory words 255 %TM timers 512 %KW constant words 512 %M memory bits 255 %C counters
Memory Capacity	256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Conversion Time	1 ms per channel + 1 controller cycle time analog input
Voltage State 1 Guaranteed	>= 15 V input
Function Available	PLS PWM frequency generator
Control Signal Type	single phase A/B pulse/direction
Supply Voltage Limits	20.4-28.8 V
Integrated Connection Type	USB port mini B USB 2.0 non isolated serial link serial 1 RJ45 RS485 non isolated serial link serial 2 RJ45 RS232/RS485
Execution Time Per Instruction	0.2 µs Boolean
Mechanical Durability	20000000 cycles transistor output
Absolute Accuracy Error	+/- 1 % of full scale analog input
Mounting Support	top hat type TH35-15 rail IEC 60715 top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Local Signalling	for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green) for I/O state 1 LED per channel (green)
Response Time	35 µs turn-off, I2...I5 input 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input 5 µs turn-on, turn-off, Q0...Q1 output 50 µs turn-on, turn-off, Q2...Q3 output 300 µs turn-on, turn-off, other terminals output
Discrete Input Current	7 mA discrete input 5 mA fast input
Execution Time For 1 Kinstruction	0.3 ms event and periodic task 0.7 ms other instruction
Analogue Input Resolution	10 bits
Realtime Clock	with
Lsb Value	10 mV
Width	70 mm
Depth	70 mm
Maximum Tungsten Load	<2.4 W output and fast output
Maximum Leakage Current	0.1 mA transistor output
Data Storage Equipment	2 GB SD card optional)
Insulation	between input and internal logic 500 V AC between fast input and internal logic 500 V AC non-insulated between inputs between output and internal logic 500 V AC non-insulated between analogue input and internal logic non-insulated between analogue inputs
Supply	serial 1)serial link supply 5 V, <200 mA
Counting Input Number	4 fast input (HSC mode) 100 kHz 32 bits
Permitted Overload On Inputs	+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403012EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403012EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	cULus LR RCM DNV-GL EAC ABS CE UKCA cULus HazLoc
Resistance To Conducted Disturbances	10 V 0.15...80 MHz EN/IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
Standards	EN/IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
Immunity To Microbreaks	10 ms
Storage Altitude	0-3000 m
Pollution Degree	<= 2
Ambient Air Temperature For Operation	-10-55 °C horizontal installation) -10-35 °C vertical installation)
Shock Resistance	147 m/s² 11 ms
Resistance To Magnetic Fields	30 A/m 50/60 Hz EN/IEC 61000-4-8
Vibration Resistance	3.5 mm 5-8.4 Hz symmetrical rail 3.5 mm 5-8.4 Hz panel mounting 1 gn 8.4-150 Hz symmetrical rail 1 gn 8.4-150 Hz panel mounting
Ambient Air Temperature For Storage	-25-70 °C
Environmental Characteristic	ordinary and hazardous location
Relative Humidity	10-95 %, without condensation in operation) 10-95 %, without condensation in storage)
Ip Degree Of Protection	IP20 with protective cover in place
Resistance To Electrostatic Discharge	8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2
Surge Withstand	2 kV power lines (AC) common mode EN/IEC 61000-4-5 2 kV relay output common mode EN/IEC 61000-4-5 1 kV I/O common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5
Resistance To Fast Transients	2 kV EN/IEC 61000-4-4 power lines) 2 kV EN/IEC 61000-4-4 relay output) 1 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 Ethernet line) 1 kV EN/IEC 61000-4-4 serial link)
Operating Altitude	0...6561.68 ft (0...2000 m)
Electromagnetic Emission	conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz EN/IEC 55011
