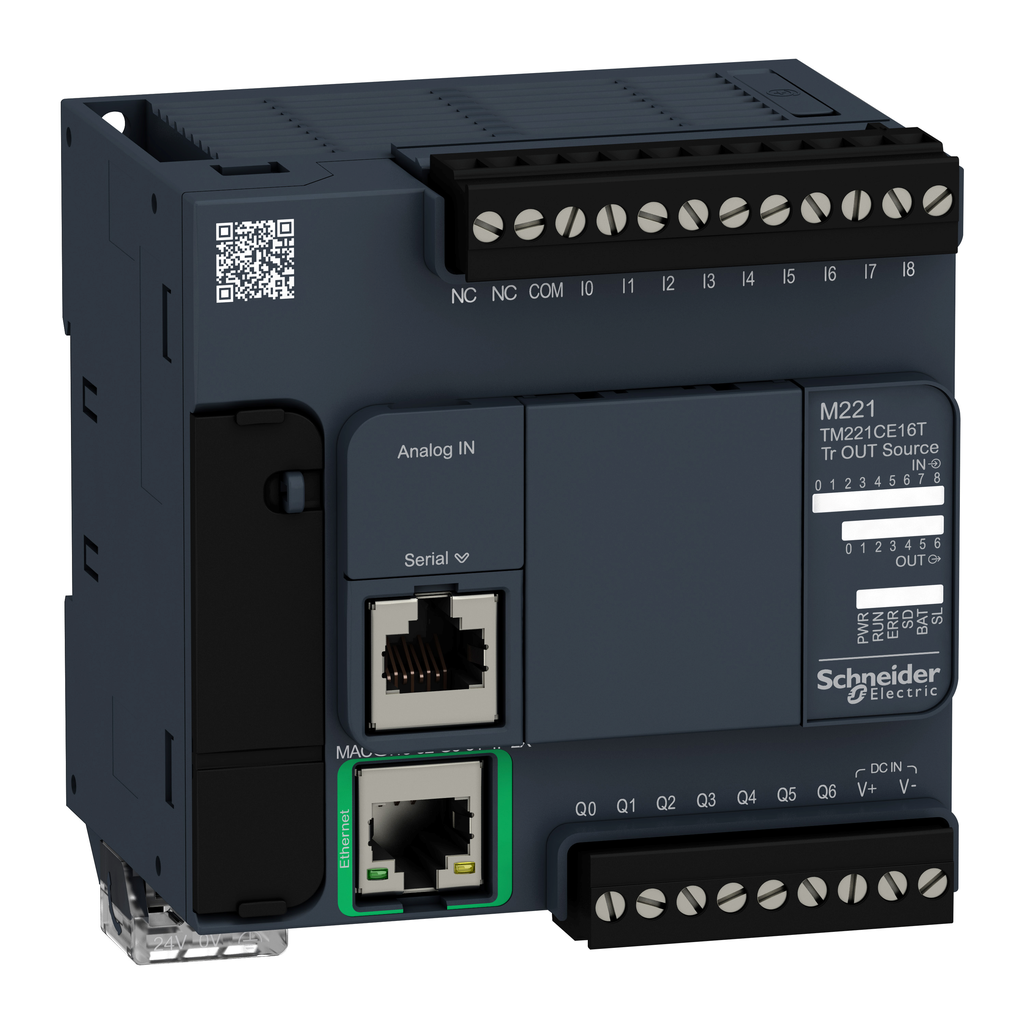

This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Brand: Schneider Electric
Add to Quote CatalogueDiscrete Output Type | transistor |
---|---|
Range Of Product | Modicon M221 |
Discrete Output Number | 7 transistor 2 fast output |
Product Or Component Type | logic controller |
Discrete Output Current | 0.5 A |
Discrete Output Voltage | 24 V DC |
Analogue Input Number | 2 0...10 V |
[Us] Rated Supply Voltage | 24 V DC |
Discrete Input Number | 9 , discrete input 4 fast input IEC 61131-2 Type 1 |
Discrete Input Logic | sink or source (positive/negative) |
Data Backed Up | 256 kB built-in flash memory backup of application and data |
Exct Time For Event Task | 60 µs response time |
Input Impedance |
|
Electrical Connection |
|
Maximum Cable Distance Between Devices |
|
Height | 90 mm |
Discrete Output Logic | positive logic (source) |
Discrete Input Voltage | 24 V |
Maximum Power Consumption In W |
|
Inrush Current | 35 A |
Discrete Input Voltage Type | DC |
Communication Service |
|
Positioning Functions |
|
Port Ethernet | 10BASE-T/100BASE-TX 1 100 m copper cable |
Maximum Current Per Output Common | 3.5 A |
Transmission Rate |
|
Clock Drift | <= 30 s/month 25-25 °C |
Battery Type | BR2032 or CR2032X lithium non-rechargeable |
Output Frequency |
|
Communication Port Protocol |
|
Protection Type | overload and short-circuit protection 1 A |
Marking | CE |
Backup Time | 1 year 25 °C by interruption of power supply) |
Discrete I/O Number | 16 |
Reset Time | 1 s automatic reset |
Regulation Loop | adjustable PID regulator up to 14 simultaneous loops |
Maximum Number Of I/O Expansion Module |
|
Power Supply Output Current |
|
Net Weight | 0.346 kg |
Voltage State 0 Guaranteed | <= 5 V input |
Maximum Voltage Drop | <1 V |
Configurable Filtering Time |
|
Maximum Size Of Object Areas |
|
Memory Capacity |
|
Conversion Time | 1 ms per channel + 1 controller cycle time analog input |
Voltage State 1 Guaranteed | >= 15 V input |
Function Available |
|
Control Signal Type |
|
Supply Voltage Limits | 20.4-28.8 V |
Integrated Connection Type |
|
Execution Time Per Instruction | 0.2 µs Boolean |
Mechanical Durability | 20000000 cycles transistor output |
Absolute Accuracy Error | +/- 1 % of full scale analog input |
Mounting Support |
|
Local Signalling |
|
Response Time |
|
Discrete Input Current |
|
Execution Time For 1 Kinstruction | 0.3 ms event and periodic task |
Analogue Input Resolution | 10 bits |
Realtime Clock | with |
Lsb Value | 10 mV |
Width | 95 mm |
Depth | 70 mm |
Maximum Tungsten Load | <12 W output and fast output |
Maximum Leakage Current | 0.1 mA transistor output |
Data Storage Equipment | 2 GB SD card optional) |
Insulation |
|
Supply | serial)serial link supply 5 V, <200 mA |
Counting Input Number | 4 fast input (HSC mode) 100 kHz 32 bits |
Permitted Overload On Inputs |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403012EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Conducted Disturbances |
|
Resistance To Electromagnetic Fields |
|
Standards |
|
Immunity To Microbreaks | 10 ms |
Storage Altitude | 0-3000 m |
Pollution Degree | <= 2 |
Ambient Air Temperature For Operation |
|
Shock Resistance | 147 m/s² 11 ms |
Resistance To Magnetic Fields | 30 A/m 50/60 Hz EN/IEC 61000-4-8 |
Vibration Resistance |
|
Ambient Air Temperature For Storage | -25-70 °C |
Environmental Characteristic | ordinary and hazardous location |
Relative Humidity |
|
Ip Degree Of Protection | IP20 with protective cover in place |
Resistance To Electrostatic Discharge |
|
Surge Withstand |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Electromagnetic Emission |
|
