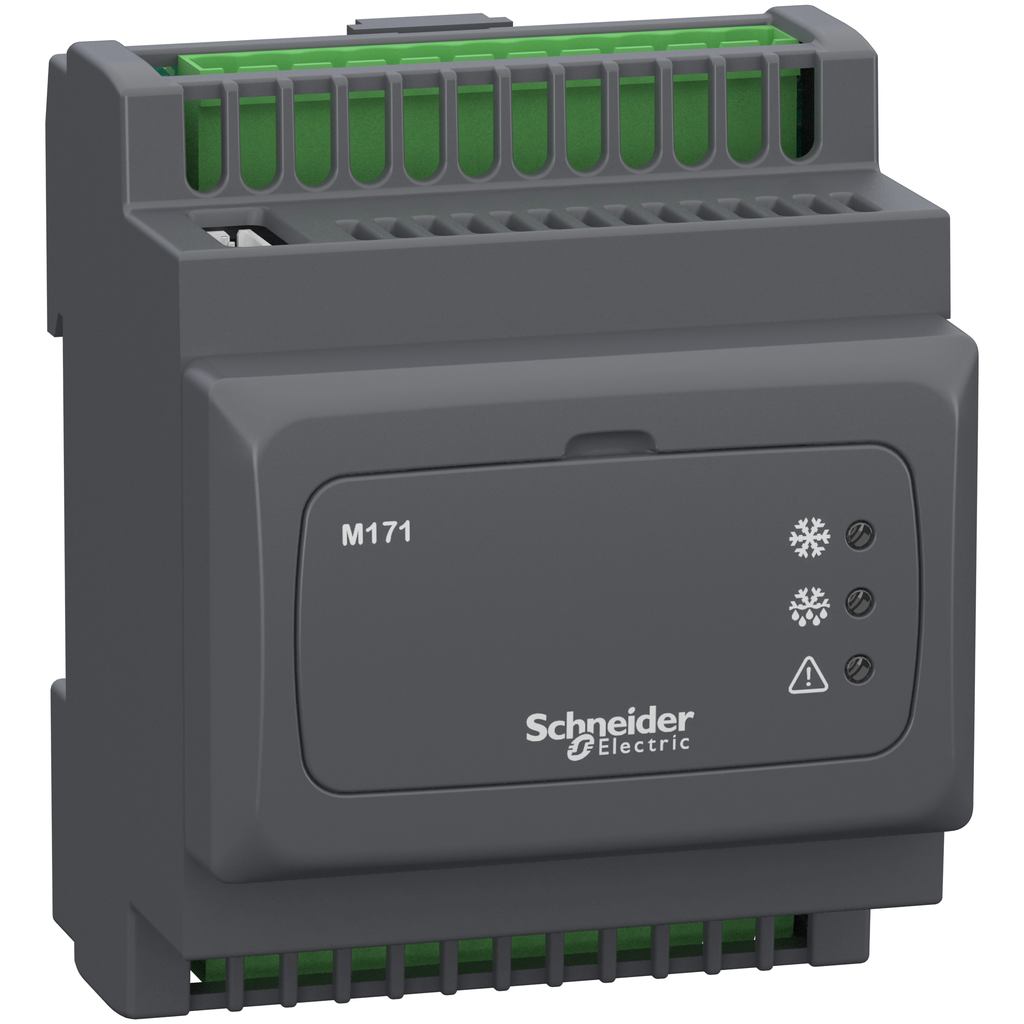

TM171VEVM4
EEV Driver, Autonomous & Modbus
Specifications
| Range Of Product | Modicon M171 |
|---|---|
| Product Or Component Type | controller |
| Analogue Input Number |
|
| Number Of Port | 1 Modbus serial link - RS485 |
| Contacts Usage | volt-free contacts |
| [Us] Rated Supply Voltage | 24 V +/- 10 % AC/DC |
| Height | 87 mm |
| Sensor Power Supply |
|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Output Number |
|
| Mounting Support | DIN rail |
| Discrete Input Number | 2 |
| Width | 70.2 mm |
| Display Type | Without Display |
| Depth | 61.6 mm |
| Input/Output Number |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710004EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710004EN |
| Sustainable Offer Status | Green Premium product |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -5-50 °C |
| Marking | CE |
Documents
- Spec Sheet
- Build HVAC machines with sustainability by design! - 998-21165013_GMA_Modicon+sustainability+flyer_QA1 (pdf)
- TM171 EEV Driver, Instruction Sheet - EAV96021_02 (pdf)
- Catalog Modicon M171 M172 logic controllers for HVAC solutions- January 2023 - Catalog+Modicon+M171-M172+logic+controllers+for+HVAC+solutions_January+2023 (pdf)
