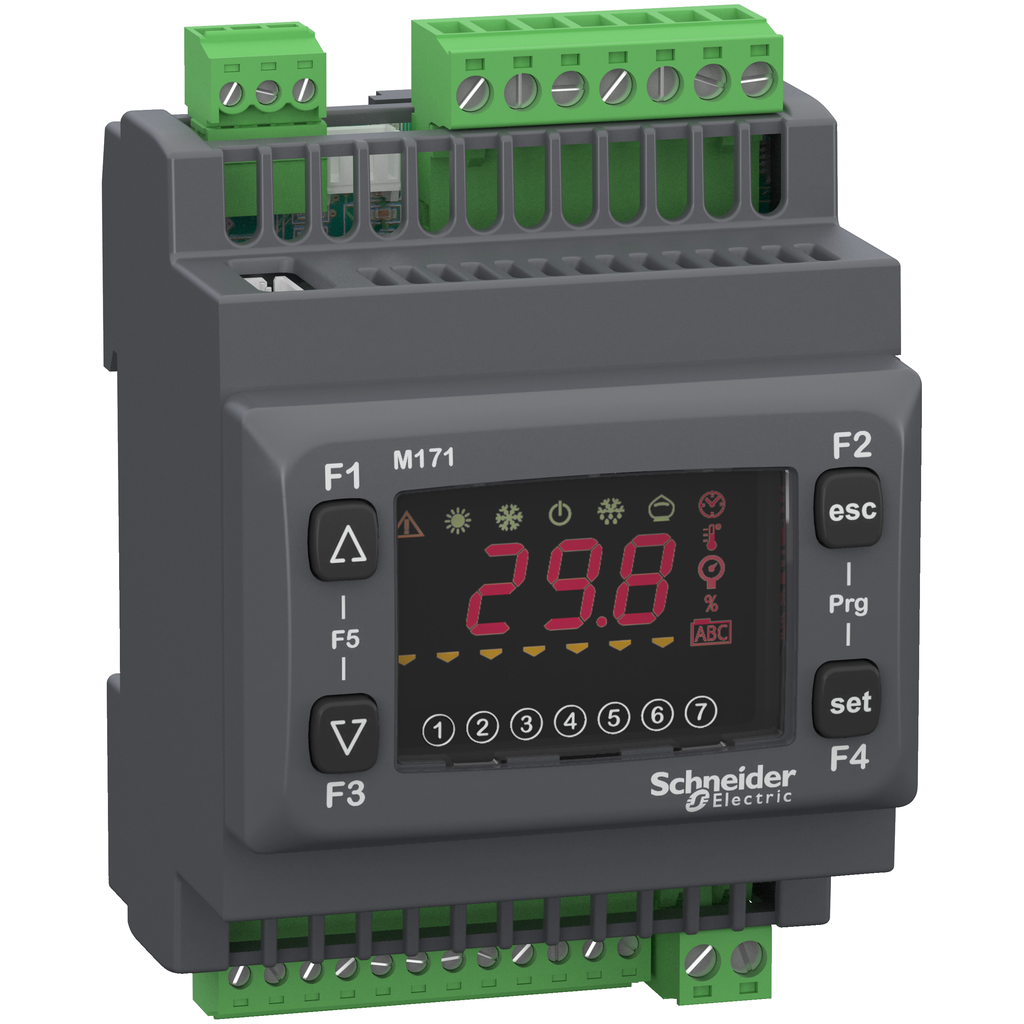

TM171OD14R
Modicon M171 Optimized Display 14 I/Os, 100-240Vac
Specifications
| Analogue Output Number |
|
|---|---|
| Analogue Input Number |
|
| Range Of Product | Modicon M171/M172 |
| Discrete Output Number |
|
| Discrete Input Number | 2 |
| Product Specific Application | HVAC and pumping solution |
| Variant | programmable |
| Product Or Component Type | controller |
| Number Of Inputs/Outputs | 14 |
| Discrete Output Current | 2 A relay |
| Number Of Port | 1 LAN expansion bus |
| Contacts Usage | volt-free contacts |
| [Us] Rated Supply Voltage | 100...240 V |
| Height | 87 mm |
| Sensor Power Supply | 12-12 V DC 85 mA |
| Width | 70.2 mm |
| Analogue Input Type |
|
| Depth | 61.6 mm |
| Input/Output Number |
|
| Discrete Input Logic | sink or source (positive/negative) |
| Net Weight | 0.19 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710004EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710004EN |
| Sustainable Offer Status | Green Premium product |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
