TM171ALON - M171 Perf. Plug-in LONWorks - Royal Wholesale Electric Suppliers

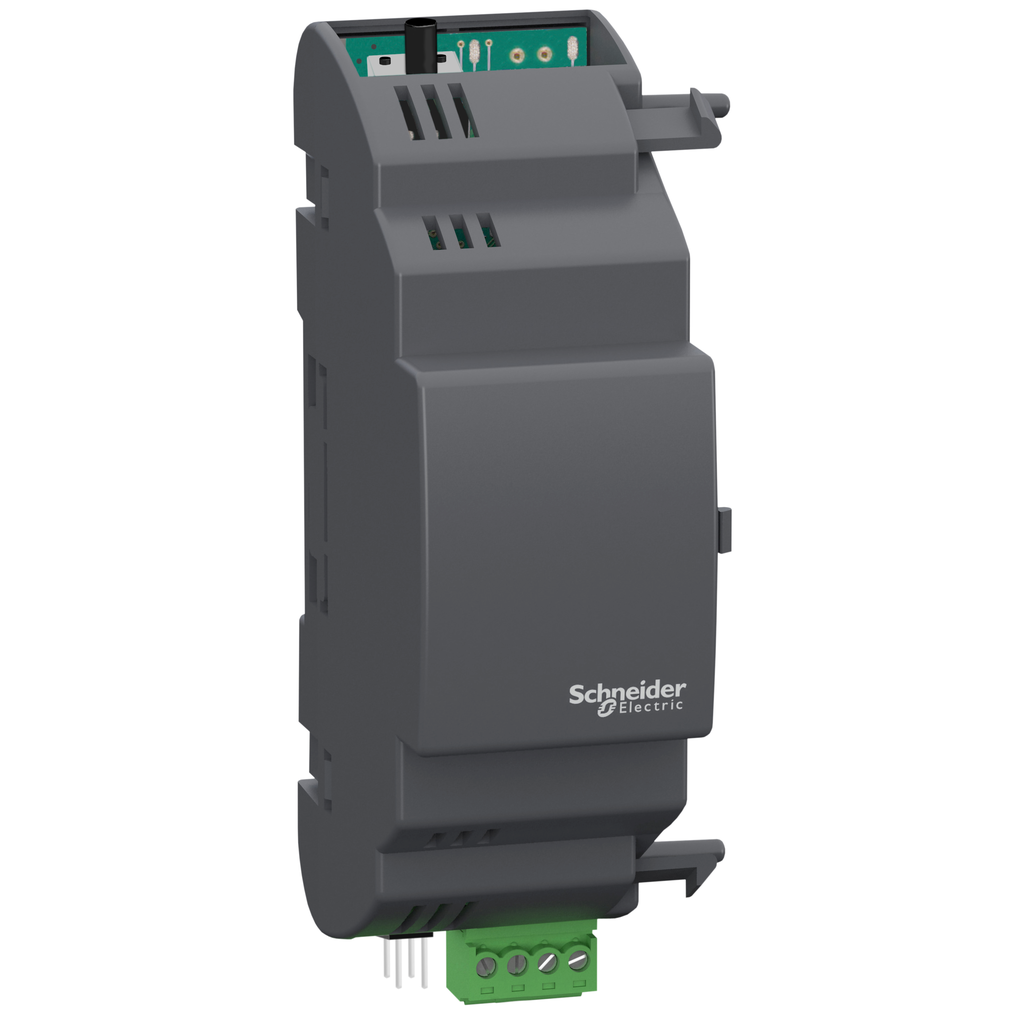

TM171ALON

Add to Quote Catalogue

Communication Port Protocol	LonWorks
Range Of Product	Modicon M171/M172
Product Or Component Type	communication module
Adjustment	pitch 3.81 mm
Integrated Connection Type	LON wire crimp - twisted pair
Physical Interface	90° insertion - 2.5-2.5 mm² cable
Transmission Rate	78 kbits/s
Electrical Connection	removable screw terminal block
Local Signalling	for service 1 LED (red) for status 1 LED (green)
Supply	via base board M171P/M172P
Product Compatibility	logic controller M171 performance logic controller M172 performance
Net Weight	0.077 kg
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Upgradeability	Upgradeable through digital modules and upgraded components
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications	EAC CSA CE cURus
Ambient Air Temperature For Operation	-10-55 °C
Ambient Air Temperature For Storage	-20-85 °C
Relative Humidity	10-90 % without condensation
Marking	CE
Ip Degree Of Protection	IP20
