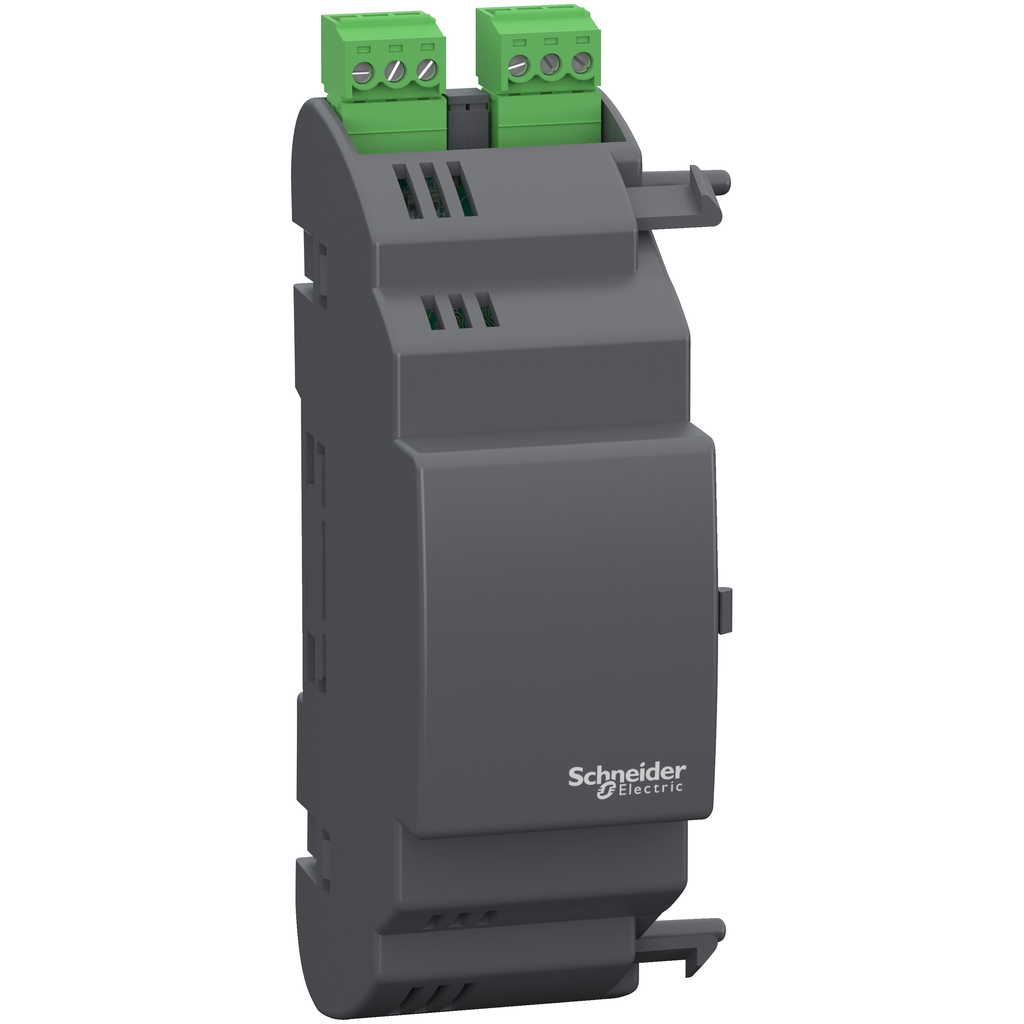

TM171ACAN
Modicon M171 Performance Plug-in CAN
Specifications
| Communication Port Protocol | CAN2.B |
|---|---|
| Range Of Product | Modicon M171 |
| Product Or Component Type | communication module |
| Integrated Connection Type | CAN port wire crimp - twisted pair |
| Physical Interface | twisted pair |
| Supply | via base board EVD/EVC |
| Product Compatibility |
|
| Net Weight | 0.077 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-55 °C |
| Ambient Air Temperature For Storage | -20-85 °C |
| Relative Humidity | 10-90 % without condensation |
| Marking | CE |
| Ip Degree Of Protection | IP20 |
Documents
- Spec Sheet
- Build HVAC machines with sustainability by design! - 998-21165013_GMA_Modicon+sustainability+flyer_QA1 (pdf)
- Modicon M171A Communication Modules , Instruction Sheet - EAV9600701_04 (pdf)
- Modicon M172 Performance and Optimized Logic Controller, Instruction Sheet - QGH90428_04_TM172PxG07R++TM172PxG18x++TM172OxM18R+-+IS+-+10L+-+0423 (pdf)
- Catalog Modicon M171 M172 logic controllers for HVAC solutions- January 2023 - Catalog+Modicon+M171-M172+logic+controllers+for+HVAC+solutions_January+2023 (pdf)
