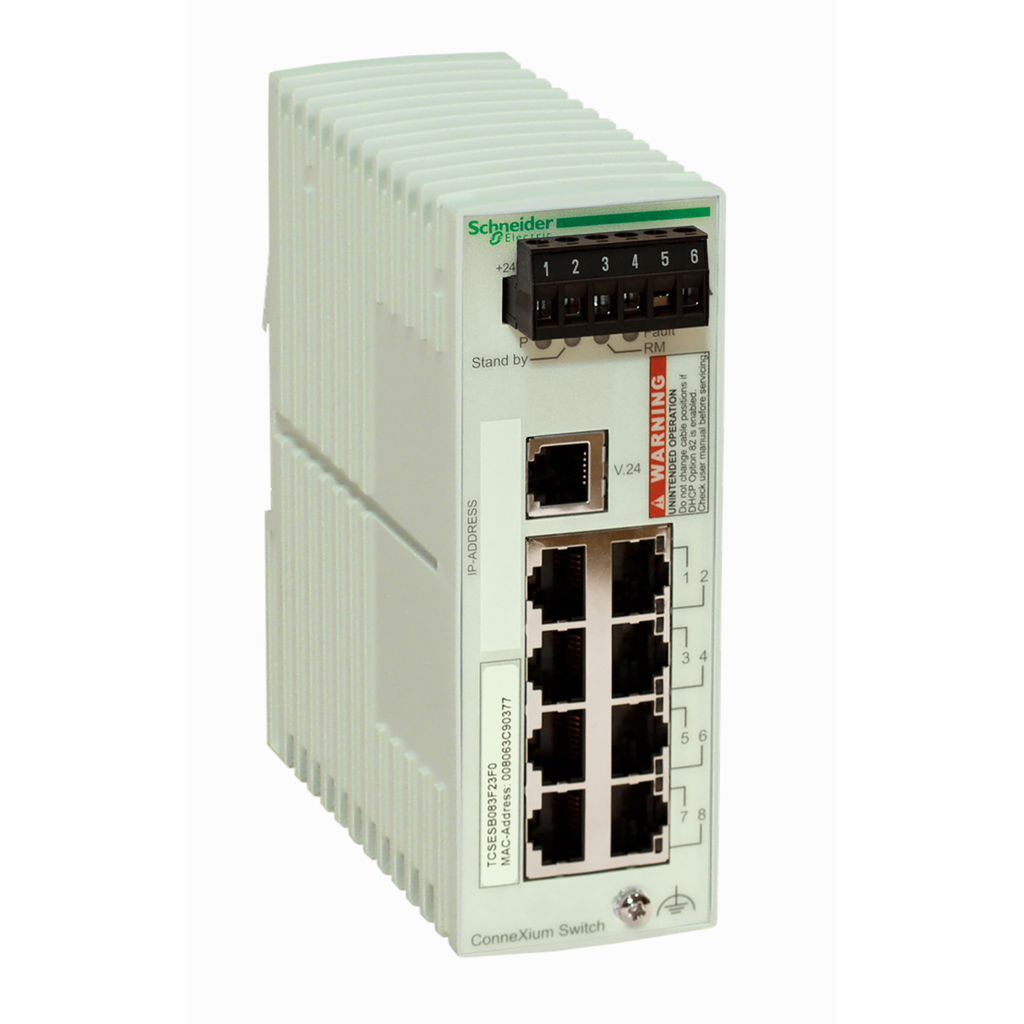

network switch, Modicon Networking, basic managed, 8 ports for copper
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Maximum Number Of Switches In Cascade | unlimited |
|---|---|
| Range Of Product | ConneXium |
| Port Ethernet | 10/100BASE-TX - 8 copper cable |
| Product Or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol |
|
| Cybersecurity | role-based access control |
| Concept | Transparent Ready |
| Warranty | 18 months |
| Maximum Cable Distance Between Devices | 100 m copper cable |
| [Us] Rated Supply Voltage | 12...24 V |
| Height | 131 mm |
| Alarm Function |
|
| Integrated Connection Type | shielded RJ45 copper cable |
| Transmission Support Medium | twisted shielded pairs cable CAT 5E copper cable |
| Mounting Support | 35 mm symmetrical DIN rail |
| Power Consumption In W | 6 W |
| Communication Service |
|
| Marking |
|
| Alarm Output | 1 voltfree contact 1 A |
| Redundancy |
|
| Net Weight | 0.4 kg |
| Electrical Connection | removable connector 6 ways power supply |
| Maximum Number Of Switches In A Ring | 50 |
| Function Available | system information |
| Ethernet Service |
|
| Ethernet Cabling System | TF switches |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Local Signalling |
|
| Diagnostics Run Time |
|
| Width | 47 mm |
| Depth | 111 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100304EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1003004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Product Certifications |
|
| Directives |
|
| Relative Humidity | 10-95 % non-condensing |
| Ip Degree Of Protection | IP20 |
