TCSCTN023F13M03
CANopen terminal adaptor, Altivar, Lexium, 2 RJ45 connectors for daisy chain connection

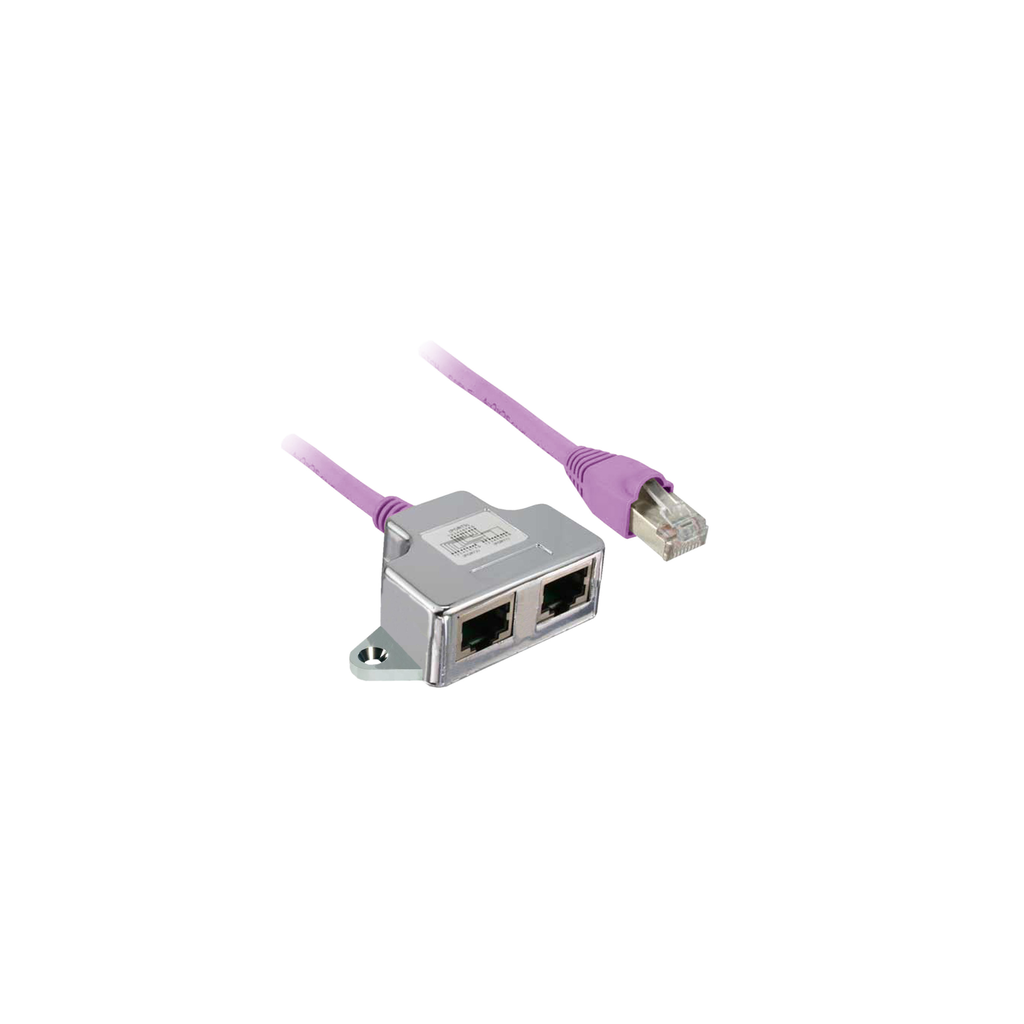

This Daisy chain tap is an accessory for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors for connecting CANopen bus in a daisy chain and one cordset equipped with an RJ45 connector for connecting the drive. It also comprises 1 cordset equipped with an RJ45 connector for connecting the drive. It enables the connection of your variable speed drive to CANopen machine bus. It is 3m long. It weighs 50g.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | CANopen |
|---|---|
| Bus Type | CANopen |
| Accessory / Separate Part Category | connection accessories |
| Product Or Component Type | CANopen terminal adaptor |
| Range Compatibility |
|
| Accessory / Separate Part Type | adaptor |
| Accessory / Separate Part Destination | for link conforming to the CANopen standard |
| Warranty | 18 months |
| Electrical Connection |
|
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
