T36AN13G7

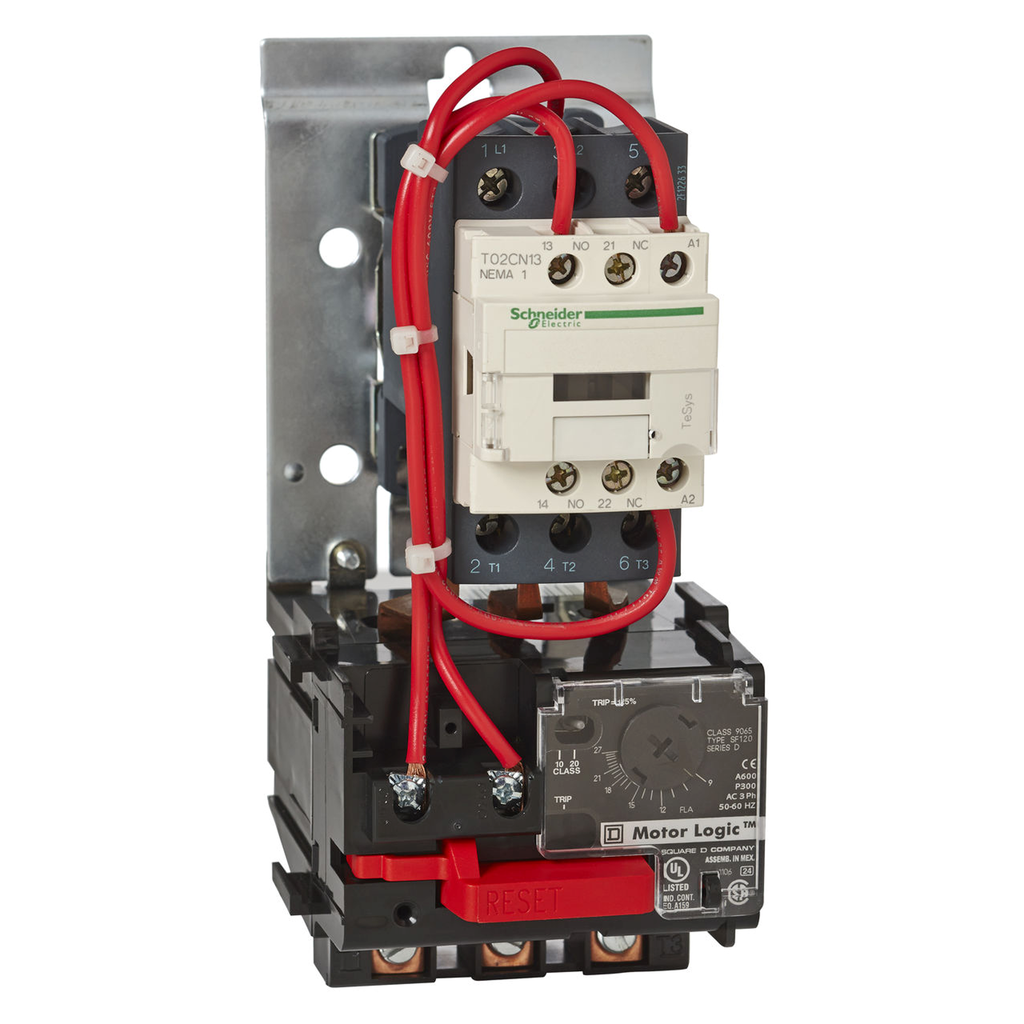

Motor Starter, TeSys NEMA, nonreversing, Size 00, 9A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 00 motor starter has a 9 amperage continuous current rating. It also has ratings of 1.5 HP at 200 to 230 Vac and 2 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 3 to 9 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Motor Starter Type | non reversing |
| Thermal Overload Type | solid state Motor Logic class 10/20 3-9 A |
| [Uc] Control Circuit Voltage | 120 V AC |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Range Of Product | TeSys N |
| Nema Degree Of Protection | not rated (open device) |
| Nema Size | 00 |
| Poles Description | 3P |
| Rated Power In Hp |
|
| Line Rated Current | 9 A |
| Electrical Connection | screw clamp terminals |
| Control Circuit | common control circuit |
| Product Or Component Type | starter |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
