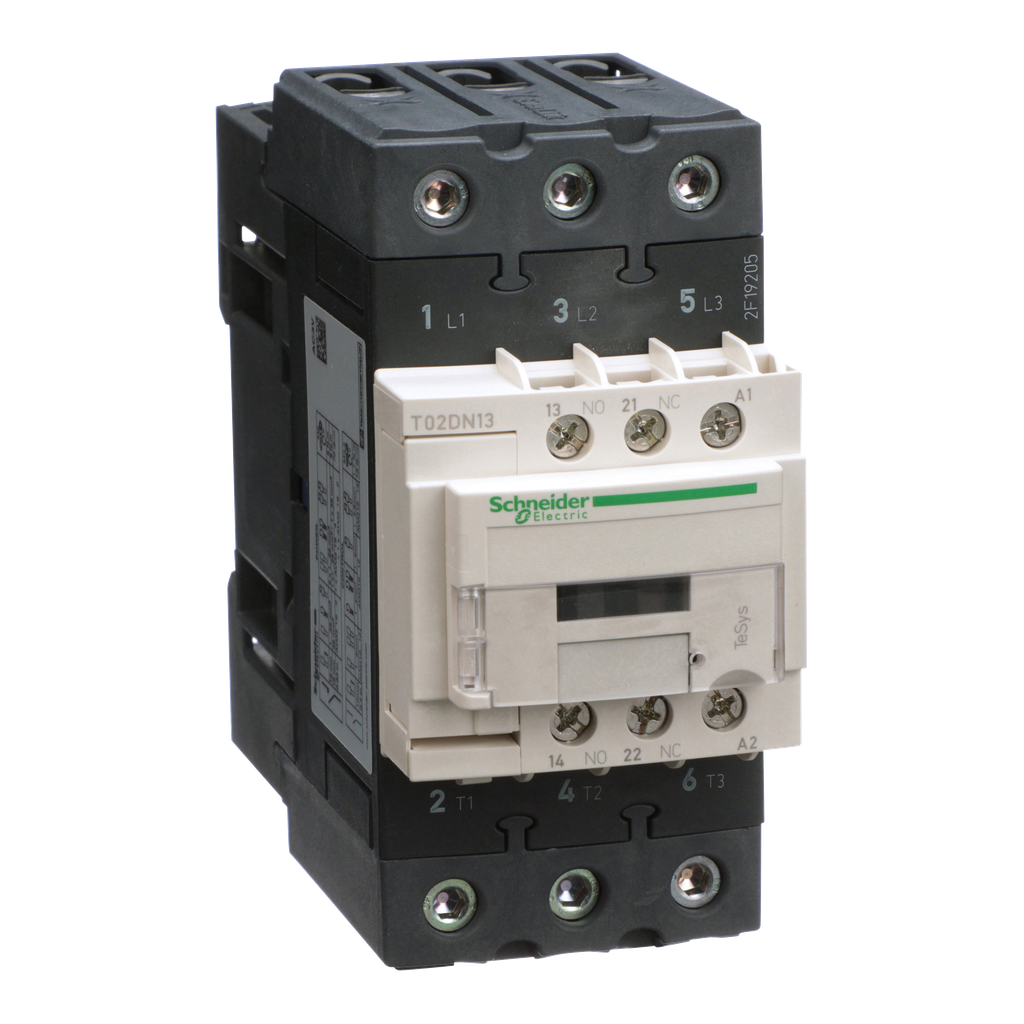

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 contactor has a 45 continuous current rating. It also has ratings of 10 HP at 200, 15 HP at 230 Vac and 25 HP at 460 and 575 VAC. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. The contactor has a 120 VAC replaceable coil. Contactor is UL listed and CSA Certified. This contactor is not in an enclosure. This contactor is 5.47 inches tall, 2.16 inches wide and 4.72 inches deep. It weighs 2.08 lbs. The screw clamp terminals will accept power wires from 16 AWG to 4 AWG and control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | TeSys N |
---|---|
Nema Size | 2 |
Contactor Application | non-reversing |
Product Or Component Type | contactor |
Maximum Horse Power Rating |
|
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
[Uc] Control Circuit Voltage | 120 V AC |
Height | 5.47 in |
Auxiliary Contact Composition | 1 NO + 1 NC |
Electrical Connection | screw clamp terminals |
Phase | 3 phase |
Net Weight | 2.04 lb(US) |
Poles Description | 3P |
Line Rated Current | 45 A |
Control Circuit | common control circuit |
Width | 2.16 in |
Depth | 4.72 in |
[Ue] Rated Operational Voltage | 600 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110229EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1102029EN |
Eu Rohs Directive | Compliant |
