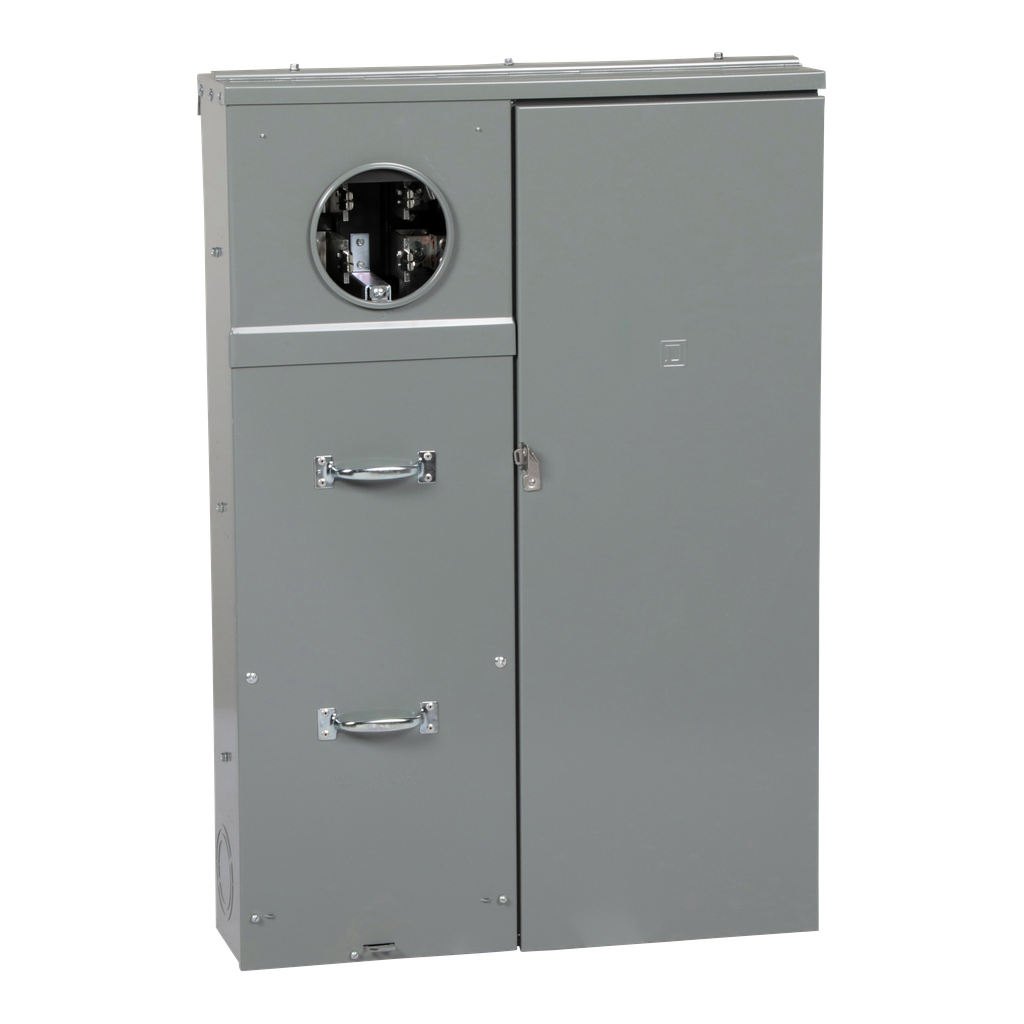

SU3040D400FN - All in one, Homeline, CSED, ringed socket, 400A, semi flush mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass

SU3040D400FN

All in one, Homeline, CSED, ringed socket, 400A, semi flush mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass

Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 30 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 400A and short-circuit current 25kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Homeline
Product Or Component Type	All-In-One
Hub Type	A-L
Meter Socket Type	ringed
Warranty	18 months
Height	43.00 in
Tightening Torque	terminal screw 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 1/0, aluminium/copper service ground 45 lb.in, AWG 6...AWG 1, aluminium/copper service ground 40 lb.in, AWG 8, aluminium/copper branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	UG
Electrical Connection	lugs service ground studs line side
Number Of Circuits	40
Number Of Spaces	30
Short-Circuit Current	25 kA
Number Of Tandem Circuit Breakers	10
Service Disconnect Rated Current	200 A
Line Rated Current	400 A
Width	28.25 in
Awg Gauge	AWG 4...250 kcmil aluminium)service ground AWG 4...250 kcmil copper)service ground
Depth	7.87 in
Device Composition	service disconnect (factory installed)
Device Mounting	semi flush
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant

All in one, Homeline, CSED, ringed socket, 400A, semi flush mount, 30 spaces, 40 circuits, 25kA SCCR, no bypass
