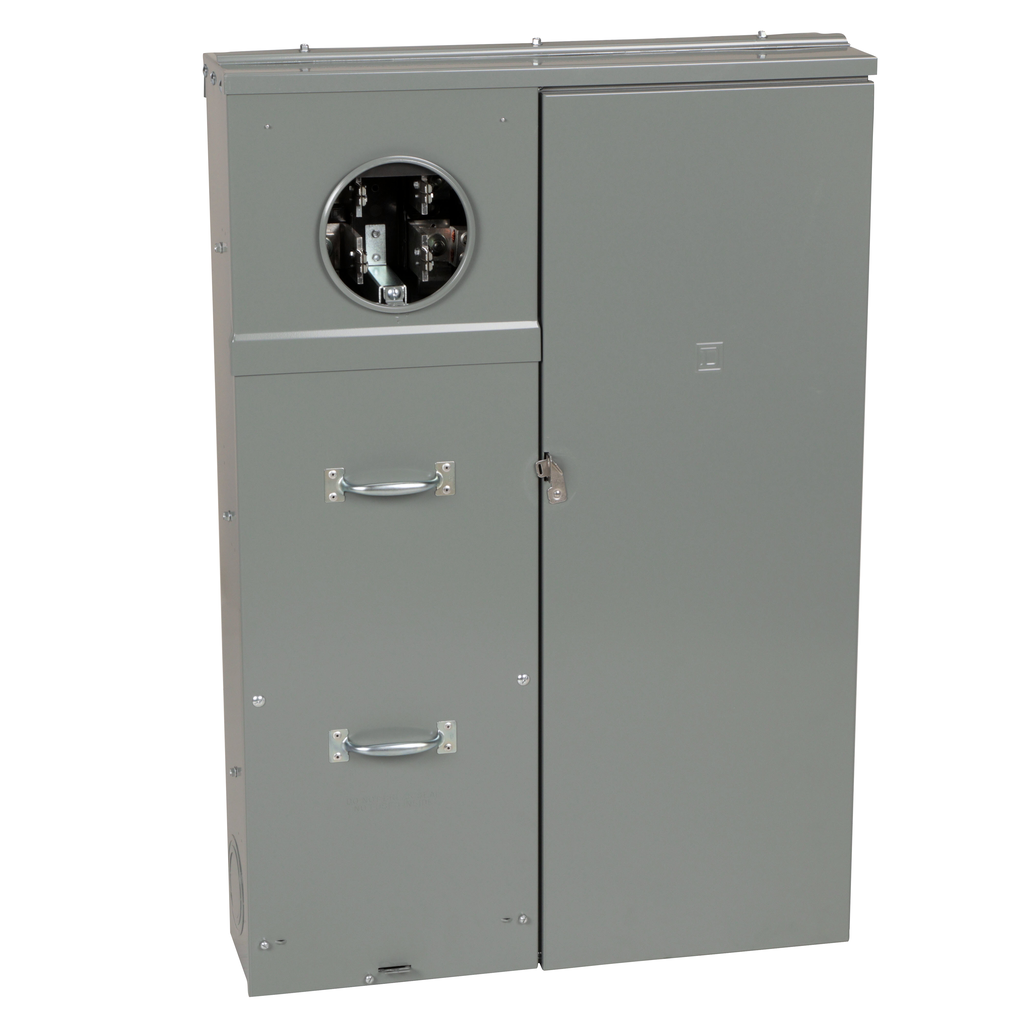

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect can be a QDL, QGL or QJL circuit breaker with a maximum rating of 200 A. Device has a SCCR rating of 10 kA with a QBL, of 25 kA with QDL, of 65 kA with QGL or of 100 kA with a QJL breaker. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Homeline |
---|---|
Hub Type | A-L |
Meter Socket Type | ringed |
Product Or Component Type | All-In-One |
Warranty | 18 months |
Connections - Terminals | lugs |
Height | 41.25 in |
Short-Circuit Current | 25 kA |
Number Of Tandem Circuit Breakers | 10 |
Tightening Torque |
|
Branch Circuit Breaker Rated Current | 200 A |
Bypass Type | class 320 manual bypass |
Service Feed Location | UG |
Service Disconnect Rated Current | 200 A |
Line Rated Current | 400 A |
Width | 28.25 in |
Awg Gauge |
|
Electrical Connection |
|
Depth | 7.50 in |
Number Of Circuits | 40 |
Number Of Spaces | 30 |
Device Composition | service disconnect (factory installed) |
Phase | single phase |
Device Mounting | semi flush |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications | UL Listed |
Nema Degree Of Protection | NEMA 3R |
