STRV00121

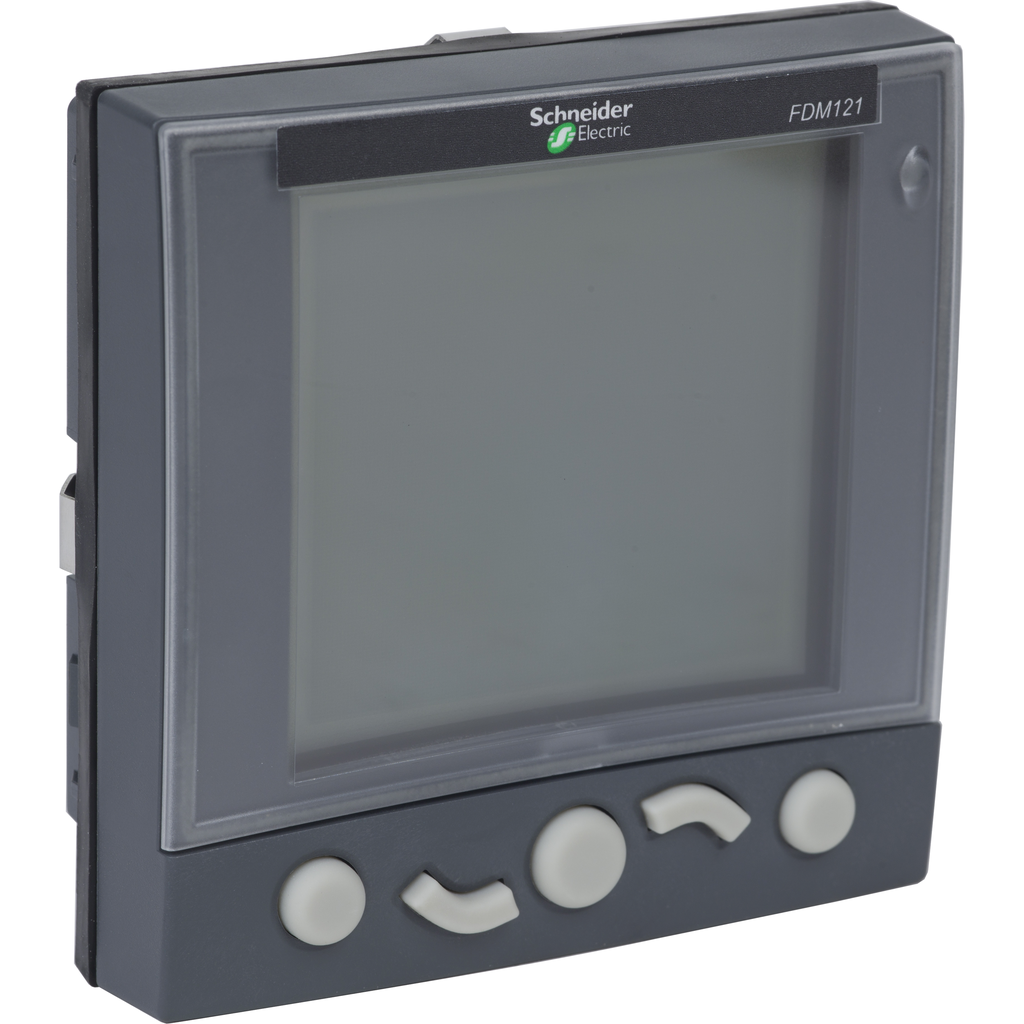

Accessory, PowerPacT H, J, L, P, R, front display module 121 (1 circuit breaker to 1 front display over ULP)
This is a display module for MasterPact and PowerPact circuit breakers. This is a display and signaling accessory. This accessory works in conjunction with FDM121, 1 circuit breaker to 1 front display over ULP. This product complies with UL standards. This product is a front mounted device. With a tightening torque of 0.8-0.8 Nm, and a cable cross section of 0.2-1.5 mm² and AWG gauge of AWG 24 / AWG 16
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Circuit Breaker Type |
|
| Accessory / Separate Part Category |
|
| Product Or Component Type | display module |
| Warranty | 18 months |
| Mounting Mode | front |
| Tightening Torque | 0.8-0.8 N.m 0.2-1.5 mm² (AWG 24...AWG 16) |
| Product Compatibility |
|
| Mounting Location | front |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
