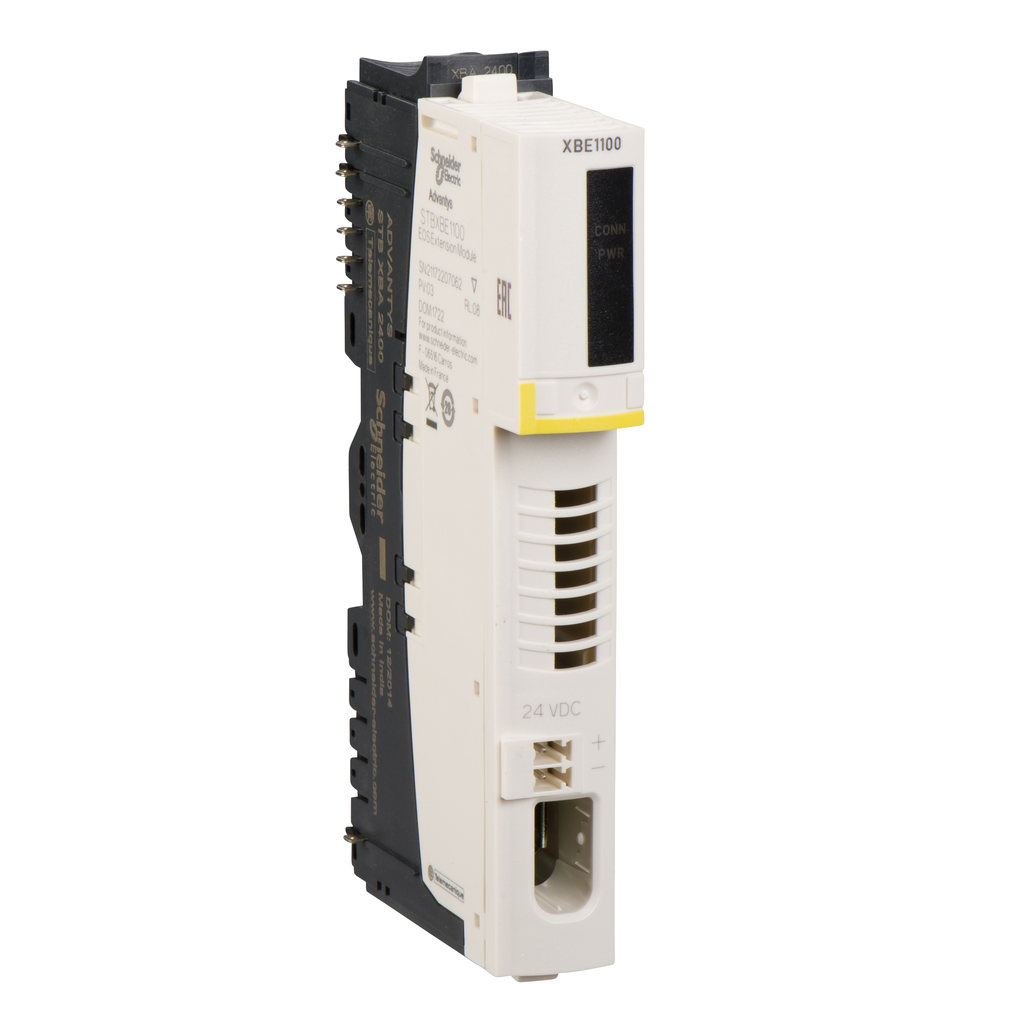

bus extension kit, Modicon STB, EOS internal
This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This EOS internal bus extension kit is furnished with FireWire for interface. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base and STBXBE1100 module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Product Or Component Type | EOS internal bus extension kit |
| Warranty | 18 months |
| Marking | CE |
| Mounting Location | end of segment (except for the last segment) |
| Electrical Connection | Firewire interface |
| Overvoltage Category | II |
| Product Compatibility | standard STB modules |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
