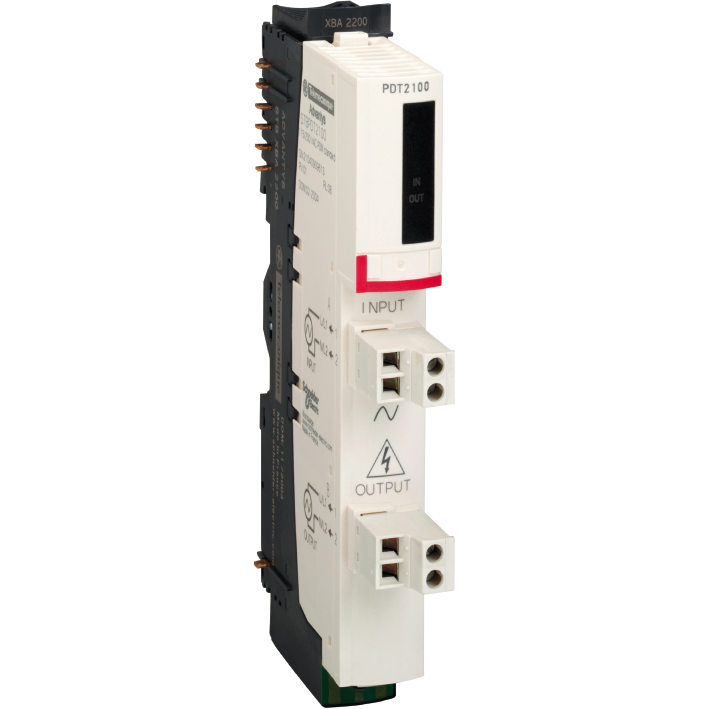

STBPDT2100K - standard power distribution kit STB - 115..230 V AC

STBPDT2100K

standard power distribution kit STB - 115..230 V AC

Add to Quote Catalogue

Specifications

Range Of Product	Modicon STB distributed I/O solution
Product Or Component Type	standard power distribution kit
Warranty	18 months
[Us] Rated Supply Voltage	115...230 V
Voltage Range	85...265 V AC sensor/actuator bus
Height	18.4 mm
Status Led	1 LED (Green) actuator bus power supply (OUT) 1 LED (Green) sensor bus power supply (IN)
Hot Swapping Fallback	hot swapping illegal
Voltage Detection Threshold	< 50 V +/-5 AC IN/OUT LED non lit > 70 V +/-5 AC IN/OUT LED lit
Protection Type	built-in overcurrent protection, 10 A time-lag output circuit built-in overcurrent protection, 5 A time-lag input circuit
Marking	CE
Power Supply Output Current	0-10 A 30 °C output circuit) 0-2.5 A 60 °C input circuit) 0-5 A 30 °C input circuit) 0-5 A 60 °C output circuit)
Net Weight	0.129 kg
Permissible Current	30 A for 2 minutes grounding terminal
Supply Circuit Type	AC
Width	125 mm
Overvoltage Category	II
Depth	65.1 mm
Product Compatibility	mounting base STBXBA2200
Kit Composition	STBPDT2100 module STBXBA2200 base STBXTS2130, spring type connectors STBXTS1130, screw type connectors
Supply Frequency	50...60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511012EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1511012EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA FM Class 1 Division 2 UL
Ambient Air Temperature For Operation	0-60 °C without)
Shock Resistance	30 gn 11 ms IEC 88 reference 2-27
Vibration Resistance	+/-0.35 mm 10-58 Hz 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail
Ip Degree Of Protection	IP20 conforming to EN 61131-2 class 1
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % 60-60 °C without condensation
Operating Altitude	<= 6561.68 ft (2000 m)
