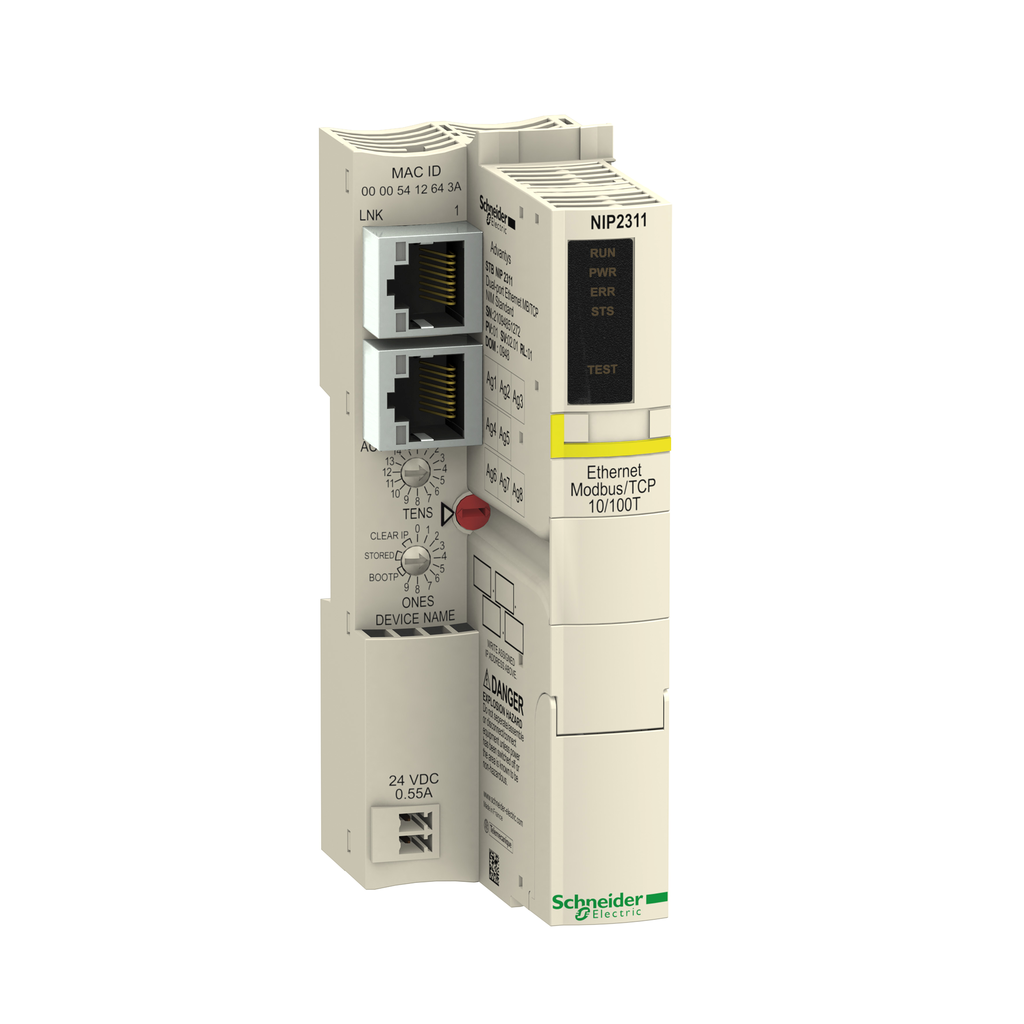

network interface module, Modicon STB, standard, Ethernet, modbus TCP/IP, 10-100Mbits
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Number Of Segments | 1 primary, maximum 6 extensions |
| Exchange Mode | half or full duplex |
| Transmission Rate | 10/100 Mbit/s 0-100 m per segment |
| Product Or Component Type | standard Network Interface Module |
| Structure Type |
|
| Integrated Connection Type |
|
| Port Ethernet | 10BASE-T/100BASE-T |
| Warranty | 18 months |
| Height | 40.5 mm |
| Number Of Addressable I/O Module | 0-32 per island |
| Status Led |
|
| Output Voltage | 5.25 V DC +/- 0.21 %)logic bus |
| Communication Service |
|
| Marking | CE |
| Power Supply Type | SELV |
| Input Current | 550 mA supply circuit |
| Net Weight | 0.145 kg |
| Supply Voltage Limits | 19.2-30 V |
| Maximum Supply Current | 700 A |
| Width | 130 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Nominal Output Current |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080803EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Ambient Air Temperature For Operation |
|
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
