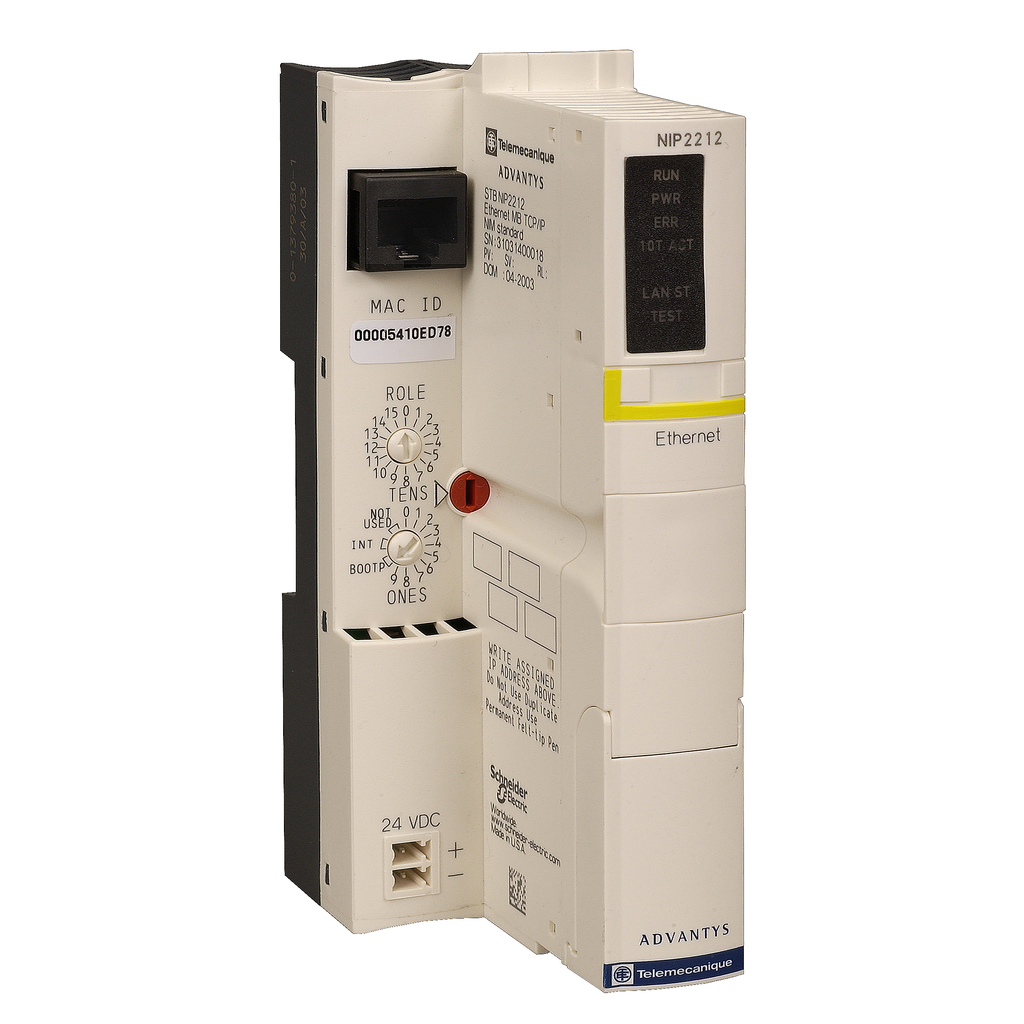

network interface module, Modicon STB, standard, Ethernet, 10Mbit/s
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Devices Per Segment | 0-256 |
|---|---|
| Range Of Product | Modicon STB distributed I/O solution |
| Number Of Segments | 1 primary, maximum 6 extensions |
| Transmission Rate |
|
| Product Or Component Type | standard Network Interface Module |
| Structure Type | industrial LAN |
| Port Ethernet | 10BASE-T |
| Concept | Transparent Ready |
| Warranty | 18 months |
| Height | 128.3 mm |
| Number Of Addressable I/O Module | 0-32 per island |
| Status Led |
|
| Output Voltage | 5.25 V DC +/- 0.21 %)logic bus |
| Communication Service |
|
| Marking | CE |
| Power Supply Type | SELV |
| Input Current | 430 mA supply circuit |
| Net Weight | 0.13 kg |
| Supply Voltage Limits | 19.2-30 V |
| Maximum Supply Current | 700 A |
| Width | 40.5 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Nominal Output Current |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080803EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
