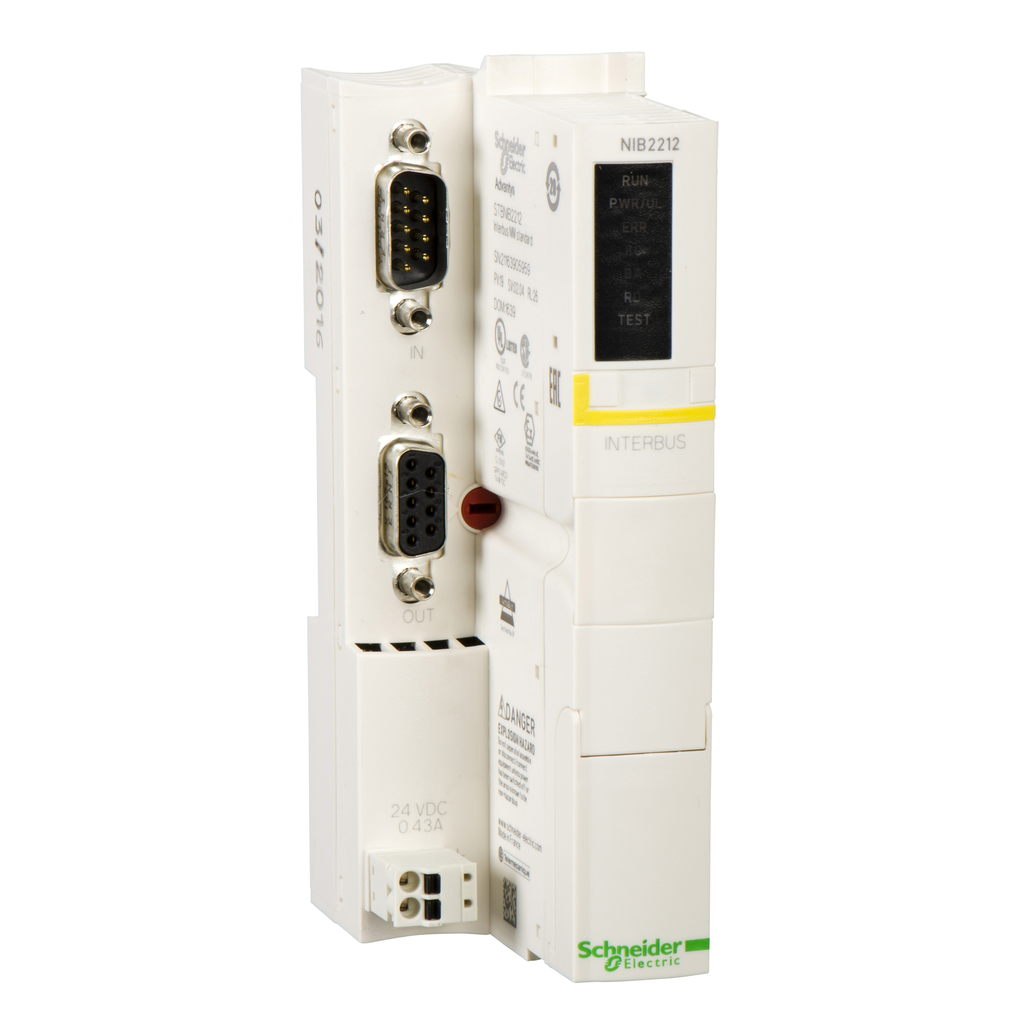

STBNIB2212 - standard Network Interface Module STB - Interbus - 500 kbit/s

STBNIB2212

standard Network Interface Module STB - Interbus - 500 kbit/s

Add to Quote Catalogue

Specifications

Number Of Slave	512
Integrated Connection Type	Interbus InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair input bus) Interbus InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair output bus) Interbus InterBus Club HE-13 RS232 port) Interbus InterBus Club 8-way female RS232 port)
Range Of Product	Modicon STB distributed I/O solution
Number Of Segments	1 primary, maximum 6 extensions
Transmission Rate	500 kbit/s 0-12800 m for the bus between stations 500 kbit/s 0-400 m per bus segment between stations 500 kbit/s 0-50 m for the installation bus
Product Or Component Type	standard Network Interface Module
Structure Type	industrial field bus (Generation4)
Warranty	18 months
Height	40 mm
Supply Voltage Limits	19.2-30 V
Number Of Addressable I/O Module	0-32 per island
Status Led	1 LED (Green) BA 1 LED (Green) island state (RUN) 1 LED (Green) power supply (PWR) 1 LED (Green) RC 1 LED (Red) module error (ERR) 1 LED (Red) RD 1 LED (Yellow) test mode
Output Voltage	5.25 V DC +/- 0.21 %)logic bus
Maximum Supply Current	700 A
Communication Service	implicit exchange of process data logical addressing diagnostics
Marking	CE
Width	128.3 mm
Overvoltage Category	II
Depth	70 mm
Power Supply Type	SELV
Maximum Output Impedance	0.05 Ohm 100000 kHz
Input Current	430 mA supply circuit
[Us] Rated Supply Voltage	24 V DC
Net Weight	0.155 kg
Nominal Output Current	0.575 A 60-70 °C 1.2 A
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications	CSA C-tick UL FM Class 1 Division 2 ATEX Cat 3G
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % 60-60 °C without condensation
Ambient Air Temperature For Operation	0-60 °C without derating) -25-70 °C with derating factor)
Electromagnetic Compatibility	immunity to electromagnetic interference IEC 61131-2
Shock Resistance	30 gn 11 ms IEC 88 reference 2-27
Vibration Resistance	3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail +/-0.35 mm 10-58 Hz
Operating Altitude	<= 6561.68 ft (2000 m)
Ip Degree Of Protection	IP20 conforming to EN 61131-2 class 1
