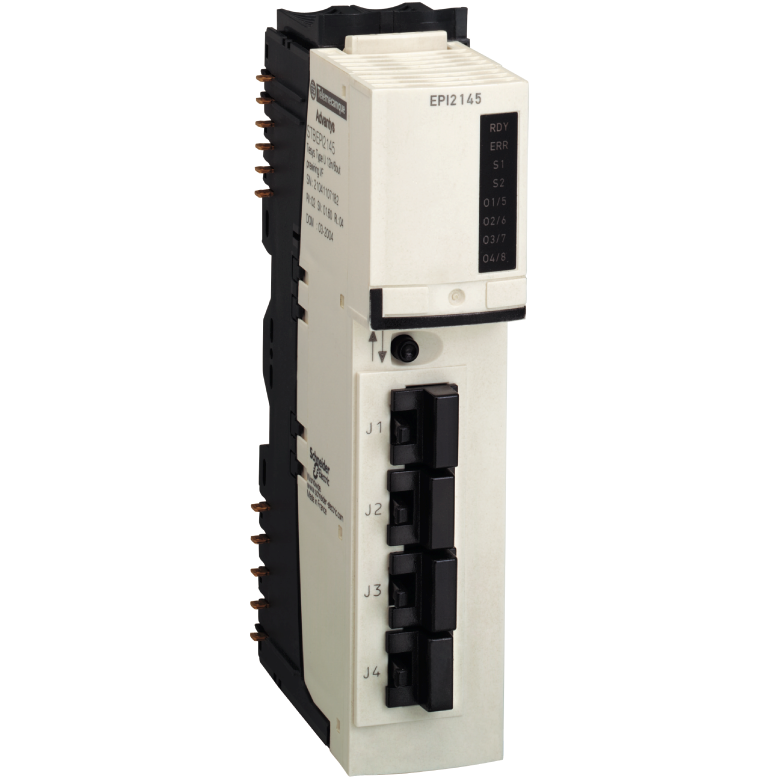

This product is part of the Modicon STB range, an offer of modular distributed I/O. This parallel interface kit has 12 inputs channels and 8 output channels. It is a parallel interface kit with a rated supply voltage of I/O voltage of 24V DC, a current consumption of ≤100mA at 24V DC for sensor bus, ≤220mA at 24V DC for actuator bus for 150ms, 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is furnished with 4 RJ45 connectors for electrical connection. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 170mm (depth) x 28.1mm (height) and weighs 0.165kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon STB distributed I/O solution |
---|---|
Product Or Component Type | parallel interface kit |
Product Specific Application |
|
Warranty | 18 months |
Cold Swapping | yes |
Height | 28.1 mm |
Status Led |
|
Hot Swapping Fallback | yes for standard NIMs |
Number Of Input Channels | 12 |
Output Voltage Type | DC |
Supply | power distribution module |
Protection Type |
|
Current Consumption |
|
Marking | CE |
Current State 0 Guaranteed | <= 0.5 mA |
Net Weight | 0.165 kg |
Fallback Status |
|
Input Voltage Limits |
|
Current State 1 Guaranteed | >= 2 mA |
Input Voltage | 24 V |
Output Voltage | 24 V |
Electrical Connection | 4 RJ45 connectors |
Input Voltage Type | DC |
Width | 128.3 mm |
Overvoltage Category | II |
Depth | 170 mm |
Product Compatibility |
|
Number Of Output Channels | 8 |
[Us] Rated Supply Voltage | 24 V DC |
Kit Composition |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511012EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C without derating) |
Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
Vibration Resistance |
|
Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
Pollution Degree | 2 IEC 60664-1 |
Ambient Air Temperature For Storage | -40-85 °C |
Relative Humidity | 95-95 % 60-60 °C without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
