counter kit, Modicon STB, 1 channel, 0-40000Hz, 2 I

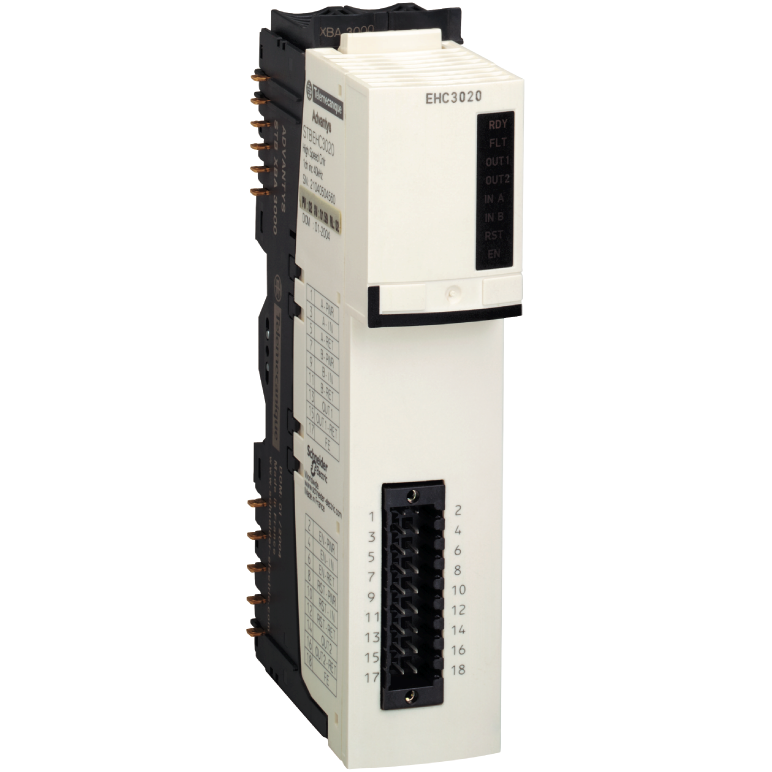

This product is part of the Modicon STB range, an offer of modular distributed I/O. This counter kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 inputs and single channel. It has rated supply voltage of 24V DC. This product is compatible with most major fieldbus networks. It supports maximum counting frequency of 40000Hz with counter functions like measuring time periods, up/down counting, down counting, frequency meter, loop (modulo) counting and count events. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 28.1mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA3000. The kit includes terminal spring clamp connector, STBXBA3000 base, terminal screw type connector and STBEPI2145 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Product Or Component Type | counter kit |
| Number Of Channels | 1 |
| Warranty | 18 months |
| Cold Swapping | yes |
| Height | 28.1 mm |
| Discrete Output Logic | positive or negative configurable |
| Status Led |
|
| Filter Time |
|
| Maximum Load Inductance | 500 mH 4 Hz |
| Output Voltage Type | DC |
| Counter Functions |
|
| Supply | power distribution module |
| Maximum Voltage Drop | <3 V at state 1 |
| Current Consumption | 60...100 mA 5 V DC logic bus |
| Counting Input Number | 2 |
| Marking | CE |
| Input Logic | positive |
| Current State 0 Guaranteed | <= 1.5 mA |
| Input Voltage Limits | 19.2...30 V |
| Voltage State 0 Guaranteed | -3...5 V |
| Fallback Status |
|
| Input Current | 6 mA |
| Current State 1 Guaranteed | >= 2 mA |
| Hot Swapping Fallback |
|
| Counter Configuration | Modicon configuration software |
| Output Voltage Limits | 19.2...30 V |
| Input Voltage | 24 V |
| Nominal Output Current | 0.5 A |
| Output Voltage | 24 V |
| Input Voltage Type | DC |
| Maximum Counting Frequency | 40000 Hz |
| Width | 128.3 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| Input Compatibility |
|
| Product Compatibility |
|
| Protection Type |
|
| Insulation Between Channels And Bus | 500 V |
| [Us] Rated Supply Voltage | 24 V DC |
| Maximum Leakage Current | 0.1 mA at state 0 |
| Kit Composition |
|
| Voltage State 1 Guaranteed | 11...30 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C without derating) |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
