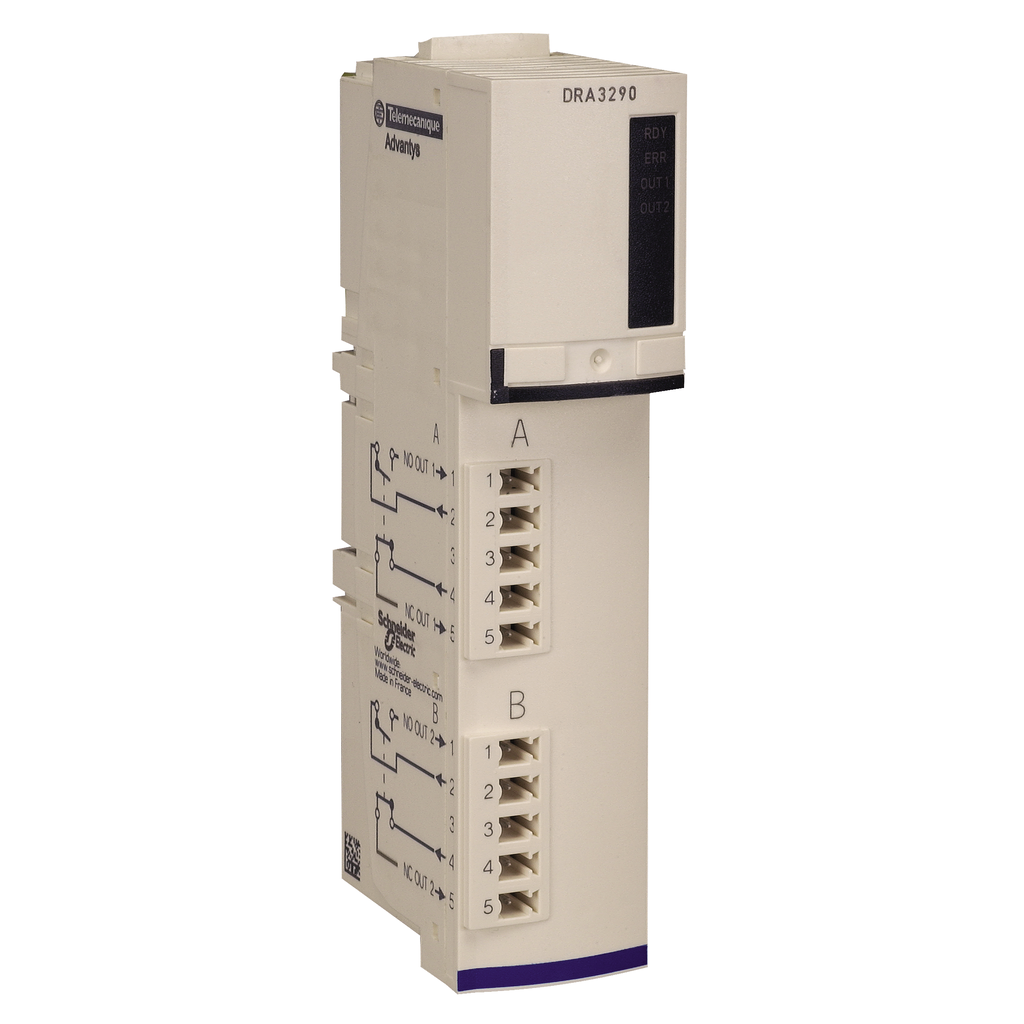

STBDRA3290K
standard digital output kit, Modicon STB, 24V DC, 2 relay output
Specifications
| Discrete Output Type | relay |
|---|---|
| Discrete Output Function | 1 NO + 1 NC |
| Range Of Product | Modicon STB distributed I/O solution |
| Discrete Output Voltage Type |
|
| Product Or Component Type | standard digital output kit |
| Discrete Output Voltage |
|
| Discrete Output Number | 2 |
| Kit Composition |
|
| Warranty | 18 months |
| Insulation Between Channels And Logic Bus | 1780 V for 1 minute |
| Cold Swapping | yes |
| Height | 28.1 mm |
| Switching Capacity In Va | 2100 VA resistive |
| Reset | manual reset COM fault |
| Discrete Output Logic | positive or negative |
| Status Led |
|
| Insulation Between Logic Bus And Actuator Bus | 1500 V for 1 minute |
| Electrical Durability | 100000 cycles resistive |
| Output Voltage |
|
| Hot Swapping Fallback | yes for standard NIMs |
| Supply | power distribution module |
| Response Time |
|
| Protection Type |
|
| Surge Current | 20 A 10 ms capacitive |
| Current Consumption | 55 mA 5 V DC logic bus |
| Marking | CE |
| Net Weight | 0.13 kg |
| Discrete Output Current | 7000 mA |
| Fallback Status |
|
| Insulation Between Channels | 500 V for 1 minute |
| Mechanical Durability | 1000000 cycles |
| Minimum Load | 50 mA |
| Width | 128.3 mm |
| Overvoltage Category | II |
| Depth | 70 mm |
| Product Compatibility |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Storage | -40...185 °F without derating |
| Standards | EN/IEC 61131-2 |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without derating |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without derating |
