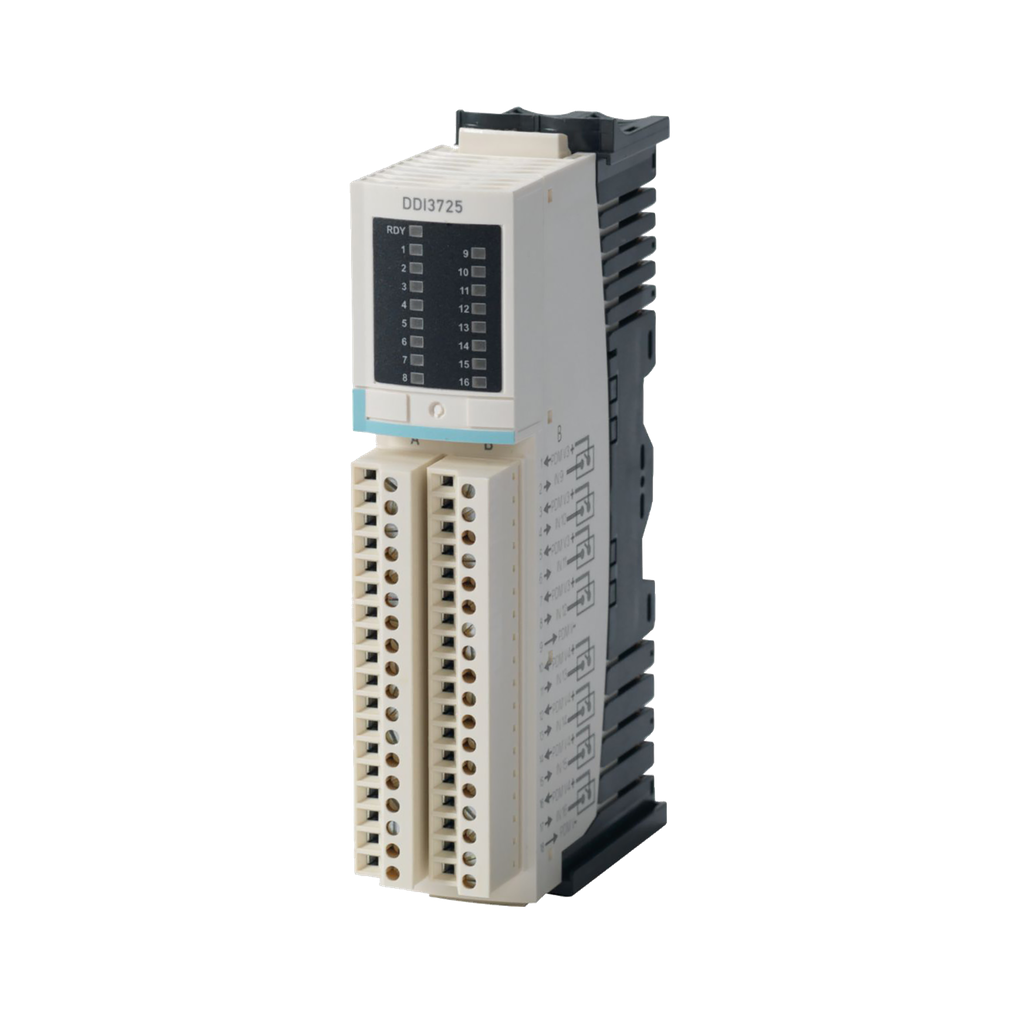

basic digital input kit, Modicon STB, 24V DC, 16I, screw connector
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1180, 18-terminal screw type connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Discrete Input Voltage | 24 V |
| Discrete Input Voltage Type | DC |
| Product Or Component Type | basic digital input kit |
| Discrete Input Number | 16 |
| Kit Composition |
|
| Warranty | 18 months |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Cold Swapping | yes |
| Height | 18.4 mm |
| Status Led |
|
| Hot Swapping Fallback | yes for basic NIMs |
| Permissible Voltage | 30 V |
| Supply | power distribution module |
| Protection Type |
|
| Current Consumption | 100 mA 5 V DC logic bus |
| Discrete Input Current | 4.5 mA |
| Marking | CE |
| Current State 0 Guaranteed | <= 1.5 mA |
| Net Weight | 0.086 kg |
| Input Voltage Limits |
|
| Current State 1 Guaranteed | >= 2.5 mA |
| Discrete Input Logic | positive |
| Response Time |
|
| Width | 125 mm |
| Overvoltage Category | II |
| Depth | 65.1 mm |
| Product Compatibility |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Storage | -40...185 °F without derating |
| Standards | EN/IEC 61131-2 type 3 |
| Ambient Air Temperature For Operation | -25-70 °C without derating) |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without derating |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without derating |
