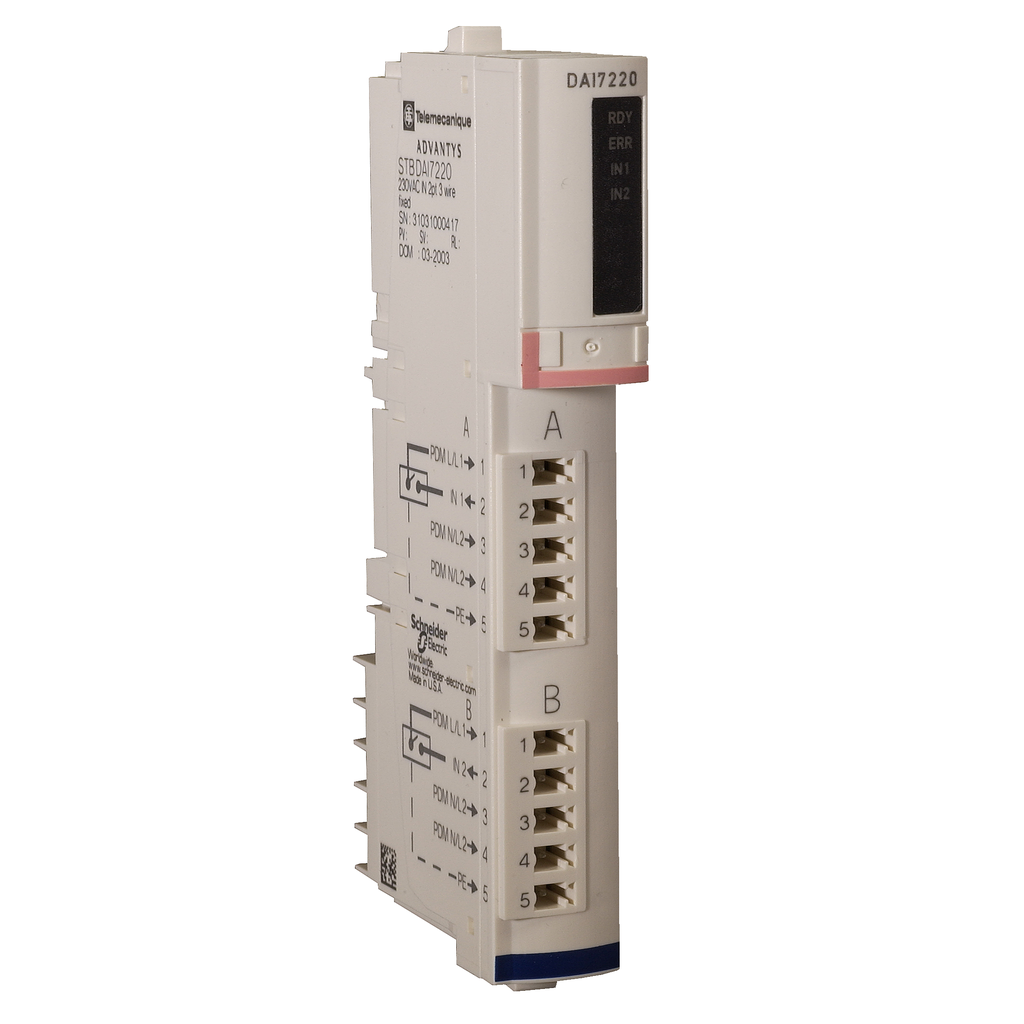

Range Of Product | Modicon STB distributed I/O solution |
---|---|
Discrete Input Voltage | 230 V |
Discrete Input Voltage Type | AC |
Product Or Component Type | standard digital input kit |
Discrete Input Number | 2 |
Kit Composition |
|
Warranty | 18 months |
Network Frequency | 50/60 Hz |
Insulation Between Channels And Logic Bus | 1780 V for 1 minute |
Cold Swapping | yes |
Height | 18.4 mm |
Absolute Maximum Voltage | 400 V 20 ms |
Status Led |
|
Hot Swapping Fallback | yes for standard NIMs |
Permissible Voltage | 265 V |
Supply | power distribution module |
Protection Type |
|
Current Consumption | 40 mA 5 V DC logic bus |
Network Frequency Limits | 47-63 Hz |
Marking | CE |
Current State 0 Guaranteed | <= 2 mA |
Net Weight | 0.122 kg |
Input Voltage Limits |
|
Current State 1 Guaranteed | >= 4 mA |
Response Time |
|
Width | 125 mm |
Overvoltage Category | II |
Depth | 65.1 mm |
Product Compatibility |
|
[Us] Rated Supply Voltage | 115/230 V AC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511012EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Storage | -40...185 °F without derating |
Standards | EN/IEC 61131-2 type 1 |
Ambient Air Temperature For Operation | 0-60 °C without derating) |
Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
Vibration Resistance |
|
Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
Pollution Degree | 2 IEC 60664-1 |
Ambient Air Temperature For Storage | -40-85 °C without derating |
Relative Humidity | 95-95 % 60-60 °C without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
Ambient Air Temperature For Operation | 32...140 °F without derating |
