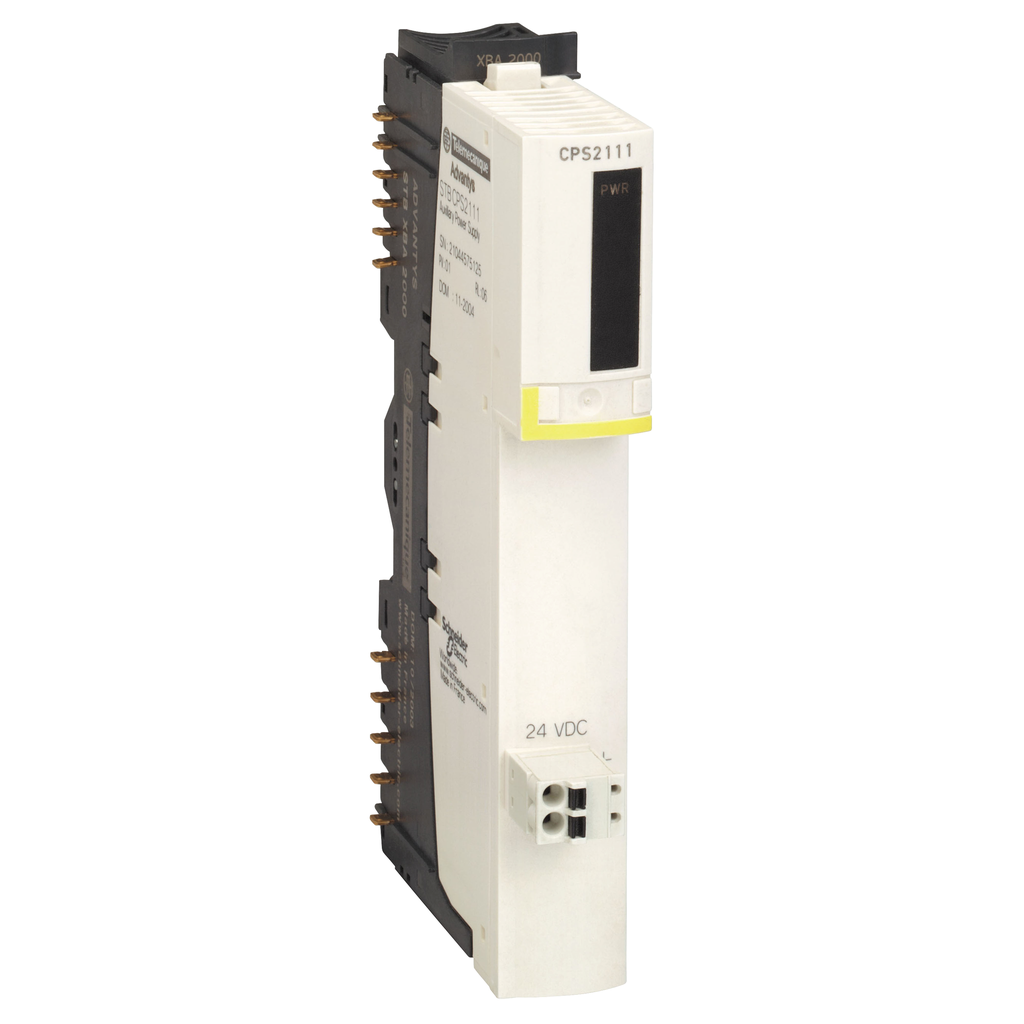

auxiliary power supply kit, Modicon STB, for logic of IO module
This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Product Or Component Type | auxiliary power supply kit |
| Product Specific Application | supply for logic of I/O module |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24 V |
| Output Voltage | 5.25 V +/- 0.21 % logic bus |
| Output Voltage Type | DC |
| Marking | CE |
| Input Current | 400 mA |
| Electrical Connection | 2 pins for removable connector power supply |
| Supply Voltage Limits | 19.2-30 V |
| Power Supply Output Current | 1.2 A |
| Supply Circuit Type | DC |
| Overvoltage Category | II |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C without derating) |
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
