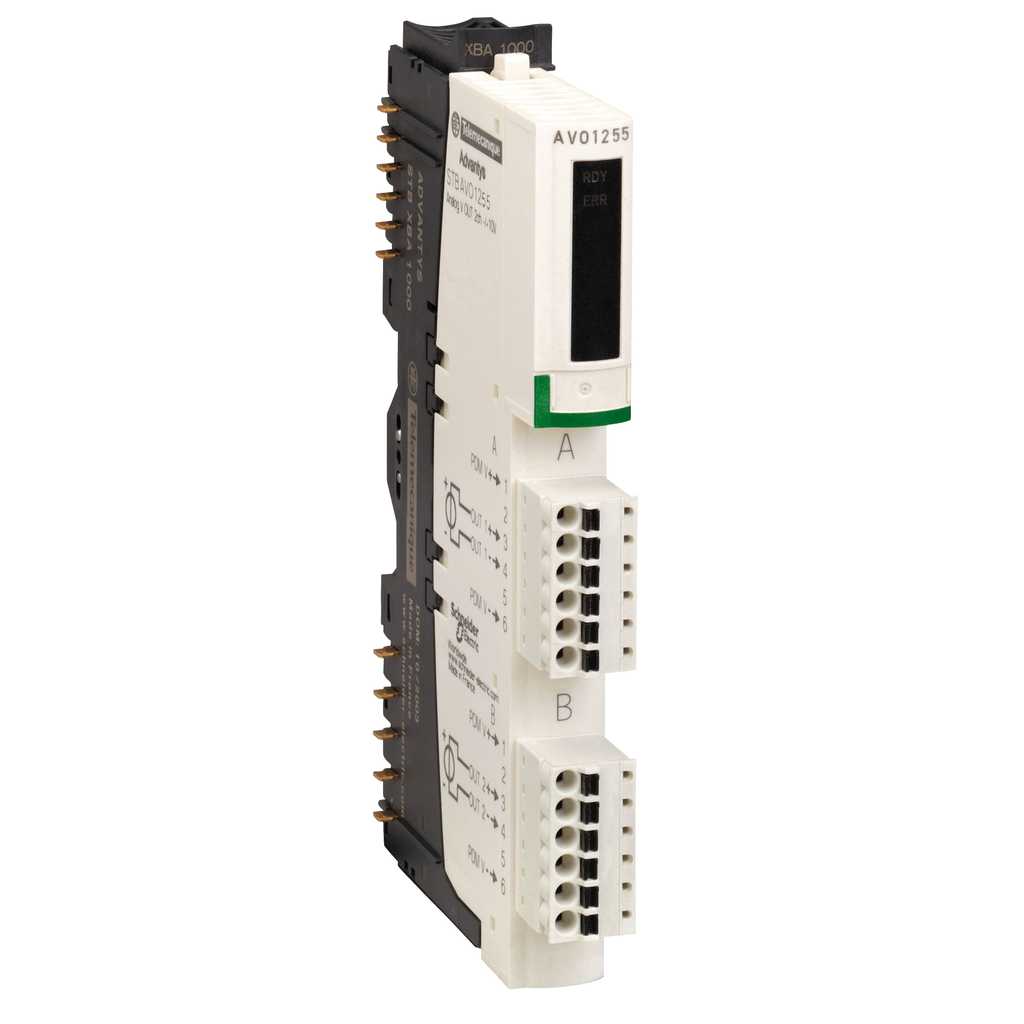

This output kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This standard analog output kit is an accessory kit for programmable logic controllers (PLC) and programmable automation controllers (PAC). It has 2 analog output (voltage 0V to 10V) with 10bit plus sign resolution. This product is compatible with most major Fieldbus networks. It is an analog input kit with a rated supply voltage of 24V DC and a current consumption of 45mA at 5V DC for logic bus. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is compatible with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBAVO1255 module, STBXBA1000 base and STBXTS1100, 6-terminal screw type connector. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon STB distributed I/O solution |
---|---|
Analogue Output Type | voltage 0...10 V |
Product Or Component Type | basic analog output kit |
Analogue Output Number | 2 |
Analogue Output Resolution | 10 bits |
Kit Composition |
|
Warranty | 18 months |
Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
Cold Swapping | yes |
Height | 13.9 mm |
Status Led | 1 LED (Green) module status (RDY) |
Hot Swapping Fallback | no for basic NIMs |
Differential Linearity | monotonic |
Integral Linearity | +/- 0.1 %FS |
Supply | power distribution module |
Analogue Output Current | 0.005-0.005 A |
Data Format |
|
Current Consumption | 45 mA 5 V DC logic bus |
Marking | CE |
Net Weight | 0.116 kg |
Fallback Status | state 0 |
Temperature Drift | +/-0.01 %/°C |
Insulation Between Channels And Actuator Bus | 30 V |
Absolute Accuracy Error | +/- 0.5 % of full scale 25 °C |
Addressing Requirement | 2 output words |
Response Time | 3 ms |
Protection Type | short-circuit protection |
Update Time | 25 ms |
Width | 128.3 mm |
Overvoltage Category | II |
Depth | 70 mm |
Product Compatibility |
|
[Us] Rated Supply Voltage | 24 V DC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1511012EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1511012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Storage | -40...185 °F without |
Ambient Air Temperature For Operation | 0-60 °C without) |
Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
Vibration Resistance |
|
Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
Pollution Degree | 2 IEC 60664-1 |
Ambient Air Temperature For Storage | -40-85 °C without |
Relative Humidity | 95-95 % 60-60 °C without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
Ambient Air Temperature For Operation | 32...140 °F without |
