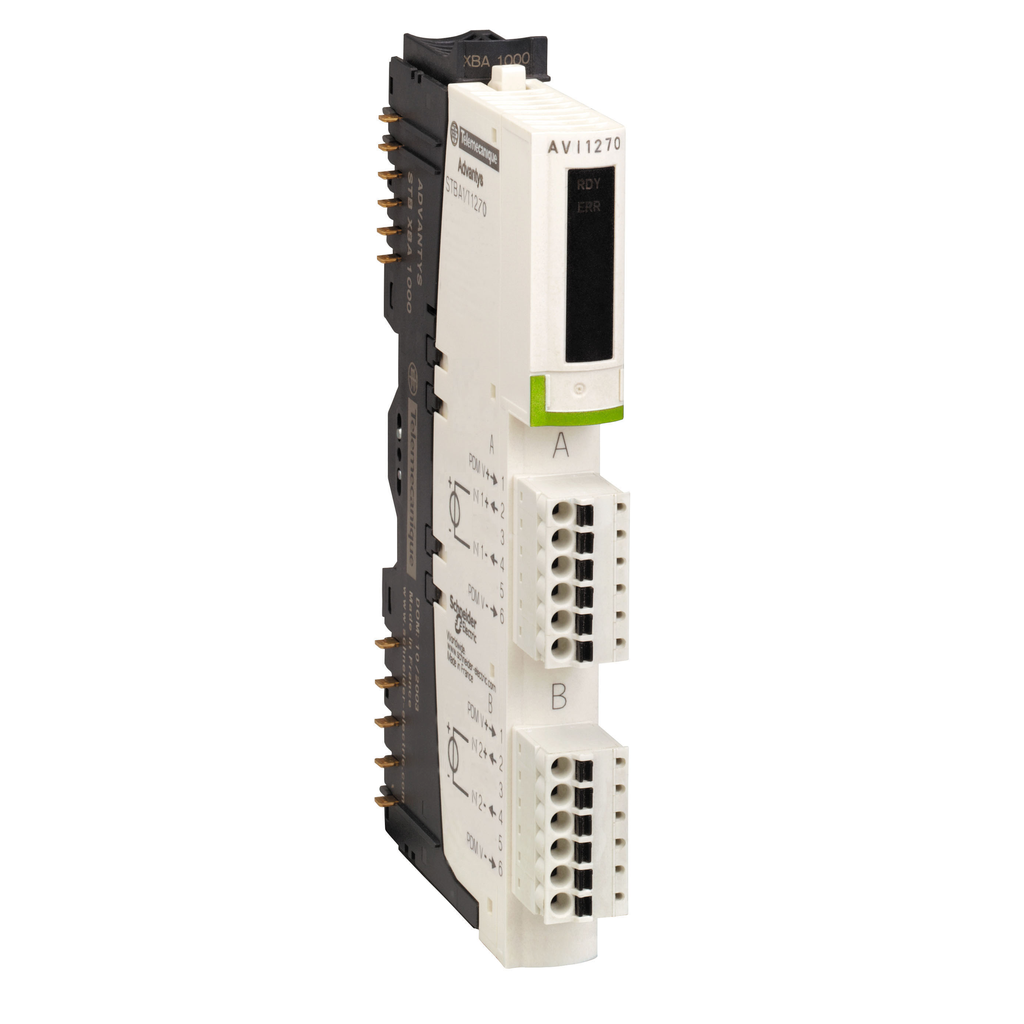

STBAVI1270K
analog input kit, Modicon STB, standard, +/- 10V, 2 I, 11bits with sign
Specifications
| Range Of Product | Modicon STB distributed I/O solution |
|---|---|
| Type Of Filter | single low pass input filter 25 Hz |
| Product Or Component Type | standard analog input kit |
| Analogue Input Number | 2 |
| Analogue Input Resolution | 11 bits + sign |
| Kit Composition |
|
| Analogue Input Type | voltage +/- 10 V |
| Warranty | 18 months |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Cold Swapping | yes |
| Maximum Supply Current For Sensors | 100 mA per input channels |
| Input Impedance | 400 kOhm |
| Insulation Between Channels And Sensor Bus | 30 V |
| Status Led |
|
| Hot Swapping Fallback | yes for standard NIMs |
| Differential Linearity | monotonic |
| Integral Linearity | +/- 0.2 %FS |
| Supply | power distribution module |
| Data Format |
|
| Current Consumption | 30 mA 5 V DC logic bus |
| Marking | CE |
| Net Weight | 0.115 kg |
| Fallback Status |
|
| Temperature Drift | +/-0.01 %/°C |
| Addressing Requirement | 4 input words |
| Absolute Accuracy Error | +/- 0.5 % of full scale 25 °C |
| Response Time | 5 ms |
| Absolute Maximum Input | 50 V DC |
| Maximum Source Impedance | 1 kOhm |
| Protection Type | short-circuit protection |
| Update Time | 10 ms |
| Overvoltage Category | II |
| Product Compatibility |
|
| [Us] Rated Supply Voltage | 24 V DC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511012EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Storage | -40...185 °F without derating |
| Ambient Air Temperature For Operation | 0-60 °C |
| Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Pollution Degree | 2 IEC 60664-1 |
| Ambient Air Temperature For Storage | -40-85 °C without derating |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Operating Altitude | <= 6561.68 ft (2000 m) |
| Ambient Air Temperature For Operation | 32...140 °F without derating |
